JT SPROCKETS coarse gear transmission pinion 5 Ø18/22 726.00.34

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

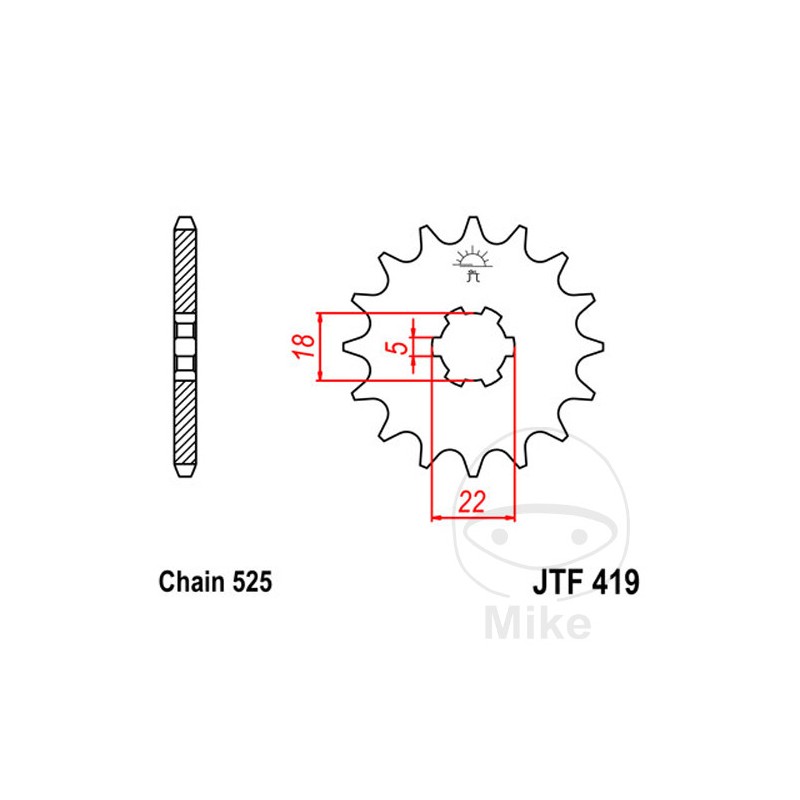

DIVISION: 525
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 18 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: WITHOUT HOLE
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GT 250 26 CV, 19 kw 2cil. GT250 A Bastidores: GT250-80001-GT250-97425 1976
Suzuki GT 250 26 CV, 19 kw 2cil. GT250 B Bastidores: GT250-97426-GT250-114958 1977
Suzuki GT 250 26 CV, 19 kw 2cil. GT250 C Bastidores: GT250-114959-- 1978
Suzuki GT 250 26 CV, 19 kw 2cil. GT250 K Bastidores: GT250-10001-GT250-25965 1973
Suzuki GT 250 26 CV, 19 kw 2cil. GT250 L Bastidores: GT250-25966-GT250-47325 1974
Suzuki GT 250 26 CV, 19 kw 2cil. GT250 M Bastidores: GT250-47326-GT250-80000 1975
Suzuki TS 250 23 CV, 17 kw 1cil. TS2504 B Bastidores: TS2504-10001-TS2504-21273 1977
Suzuki TS 250 23 CV, 17 kw 1cil. TS2504 C Bastidores: TS2504-21274-- 1978
Suzuki TS 250 ER 22/17 CV, 16/13 kw 1cil. TS2504 N Bastidores: TS2504-100024-TS2504-100840 1979
Suzuki TS 250 ER 22/17 CV, 16/13 kw 1cil. TS2504 T Bastidores: TS2504-100841-TS2504-109342 1980
Suzuki TS 250 ER 22/17 CV, 16/13 kw 1cil. TS2504 X Bastidores: TS2504-109343-- 1981
