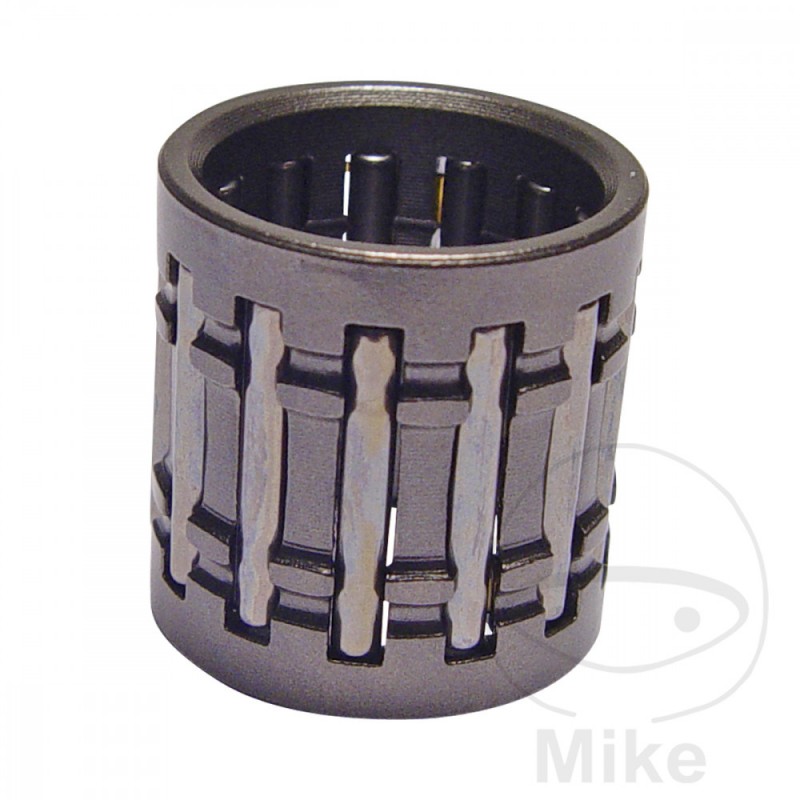

ATHENA piston needle cage 7560609 05/22 756.00.44

Athena connecting rod / piston pin needle roller bearing

It can be used in conditions such as high rotation speed, high temperature, and sudden acceleration.

The quality and technical specifications correspond to the original part.
VERSION: NEEDLE BEARINGS
TYPE: MNB
INSIDE DIAMETER: 15.00MM
OUTSIDE DIAMETER: 19.00MM
WIDTH: 19.50MM
SEALING GASKET: NONE
RADIAL SET: STANDARD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia AF1 125 Futura 30 CV, 22 kw 1cil. FM/FG Bastidores: --- 1990-1991
Aprilia AF1 125 Sintesi 27 CV, 20 kw 1cil. EH Bastidores: --- 1988
Aprilia AF1 125 Sintesi Replica 27 CV, 20 kw 1cil. EU Bastidores: --- 1989
Aprilia AF1 125 Sport Pro 25 CV, 18 kw 1cil. FM/GE Bastidores: --- 1992-1993
Aprilia Classic 125 11,6 CV, 8,5 kw 1cil. MF000 Bastidores: --- 1999-2001
Aprilia Classic 125 27/11 CV, 20/8 kw 1cil. MF000 Bastidores: --- 1997-1998
Aprilia Europa 125 30 CV, 22 kw 1cil. FV Bastidores: --- 1990-1991
Aprilia MX 125 Supermoto 15 CV, 11 kw 1cil. TZ000 Bastidores: --- 2004-2007
Aprilia MX 125 Supermoto 24,5 CV, 18 kw 1cil. TZ000 Bastidores: --- 2004-2007
Aprilia Red Rose 125 L 27 CV, 20 kw 1cil. FQ Bastidores: --- 1990
Aprilia Red Rose 125 M 27 CV, 20 kw 1cil. FQ Bastidores: --- 1991
Aprilia Red Rose 125 N 27 CV, 20 kw 1cil. FQ Bastidores: --- 1992
Aprilia Red Rose 125 P 27 CV, 20 kw 1cil. FQ Bastidores: --- 1993
Aprilia Red Rose 125 R 27 CV, 20 kw 1cil. FQ Bastidores: --- 1994-1996
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPA00 Bastidores: --- 1996-1998
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPB10 Bastidores: --- 1999-2001
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RD000 Bastidores: --- 2008
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RD000/RDA00 Bastidores: --- 2009
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RDA00 Bastidores: --- 2010-2012
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. SFA00 Bastidores: --- 2002-2003
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. SFG00 Bastidores: --- 2004-2005
Aprilia RS 125 Extrema/Replica 24,5 CV, 18 kw 1cil. RM000 Bastidores: --- 2008-2012
Aprilia RS 125 Extrema/Replica 29,2 CV, 21,5 kw 1cil. PYA00 Bastidores: --- 2006-2007
Aprilia RS 125 Extrema/Replica 29,2 CV, 21,5 kw 1cil. SFG00 Bastidores: --- 2004-2005
Aprilia RS 125 Extrema/Replica 30 CV, 22 kw 1cil. MPB10 Bastidores: --- 1999-2001
Aprilia RS 125 Extrema/Replica 30 CV, 22 kw 1cil. SFA00 Bastidores: --- 2002-2003
Aprilia RS 125 Extrema/Replica 31 CV, 23 kw 1cil. MPA00 Bastidores: --- 1997-1998
Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. GS Bastidores: --- 1992-1994
Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. MP000 Bastidores: --- 1995
Aprilia RS 125 Extrema/Replica 6,8 CV, 5 kw 1cil. RM000 Bastidores: --- 2009-2012
Aprilia RS 125 Sport Pro 34/27 CV, 25/20 kw 1cil. LA Bastidores: --- 1993-1994
Aprilia RX 125 15 CV, 11 kw 1cil. RVA00 Bastidores: --- 2008-2013
Aprilia RX 125 23 CV, 17 kw 1cil. RVA00 Bastidores: --- 2008-2013
Aprilia RX 125 K 1cil. GF Bastidores: --- 1989
Aprilia RX 125 L 1cil. GF Bastidores: --- 1990
Aprilia RX 125 M 1cil. GF Bastidores: --- 1991
Aprilia RX 125 N 1cil. GF Bastidores: --- 1992
Aprilia RX 125 P 1cil. GF Bastidores: --- 1993
Aprilia SX 125 15 CV,11 kw 1cil. RV000 Bastidores: --- 2008-2014
Aprilia SX 125 23 CV,17 kw 1cil. RV000 Bastidores: --- 2008-2014
Aprilia Tuareg 125 K Rally 25 CV, 18,6 kw 1cil. GA Bastidores: --- 1989
Aprilia Tuareg 125 L Rally 25 CV, 18,6 kw 1cil. GB Bastidores: --- 1990
Aprilia Tuareg 125 M Rally 25 CV, 18,6 kw 1cil. GG Bastidores: --- 1991
Aprilia Tuareg 125 N Rally 25 CV, 18,6 kw 1cil. GG Bastidores: --- 1992
Aprilia Tuono 125 15 CV, 11 kw 1cil. SFD00 Bastidores: --- 2003-2004
Aprilia Tuono 125 29,2 CV, 21,5 kw 1cil. SFD00 Bastidores: --- 2003-2004
Husaberg TE 125 Enduro 35 CV, 26 kw 1cil. - Bastidores: --- 2012-2014
Husqvarna TC 125 38 CV, 28 kw 1cil. - Bastidores: --- 2014-2015
Husqvarna TC 125 40 CV, 29,4 kw 1cil. - Bastidores: --- 2016-2020
Husqvarna TE 125 2T 38 CV, 28 kw 1cil. - Bastidores: --- 2014-2016
Husqvarna TE 150 i 7 CV, 5 kw 1cil. - Bastidores: --- 2020
Husqvarna TX 125 1cil. - Bastidores: --- 2017-2019
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 1 Bastidores: KX125K henceforth00001-KX125K-999999 1994
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 2 Bastidores: KX125K henceforth06001-KX125K-999999 1995
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 3 Bastidores: KX125K henceforth13001-KX125K-999999 1996
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KX125K 4 Bastidores: KX125K henceforth20001-KX125K-999999 1997
Kawasaki KX 125 K 39,5 CV, 29 kw 1cil. KXRKCWA 5 Bastidores: KXRKCWA henceforth26001-KXRKCWA-999999 1998
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 1 Bastidores: KX125LLA henceforth00001-KX125LLA-999999 1999
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 2 Bastidores: KX125LLA henceforth09001-KX125LLA henceforth20000 2000
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 3 Bastidores: KX125LLA henceforth20001-KX125LLA henceforth30000 2001
Kawasaki KX 125 L 39,5 CV, 29 kw 1cil. KX125LLA 4 Bastidores: KX125LLA henceforth30001-KX125LLA-999999 2002
Kawasaki KX 125 M 40,5 CV, 29,8 kw 1cil. KX125MMA 1 Bastidores: KX125MMA henceforth00001-KX125MMA henceforth10000 2003
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 2 Bastidores: KX125MMA henceforth10001-KX125MMA henceforth16000 2004
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 3 Bastidores: KX125MMA henceforth16001-KX125MMA henceforth21000 2005
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 6F Bastidores: KX125MMA henceforth21001-KX125MMA henceforth25000 2006
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 7F Bastidores: KX125MMA henceforth25001-KX125MMA henceforth27000 2007
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 8F Bastidores: KX125MMA henceforth27001-KX125MMA-999999 2008
KTM EXC 125 11/35 CV, 8/26 kw 1cil. - Bastidores: --- 1993-1999
KTM EXC 125 35 CV, 26 kw 1cil. - Bastidores: --- 2000-2001
KTM EXC 125 5,5/35 CV, 4/26 kw 1cil. - Bastidores: --- 2002-2006
KTM EXC 125 5,5/35 CV, 4/26 kw 1cil. - Bastidores: --- 2012-2016
KTM EXC 125 6,5/35 CV, 4,8/26 kw 1cil. - Bastidores: --- 2007-2009
KTM EXC 125 6/35 CV, 4,4/26 kw 1cil. - Bastidores: --- 2010-2011
KTM EXC 125 Sixdays 5,5/35 CV, 4/26 kw 1cil. - Bastidores: --- 2012-2016
KTM EXC 125 Sixdays 6,5/35 CV, 4,8/26 kw 1cil. - Bastidores: --- 2009
KTM EXC 125 Sixdays 6/35 CV, 4,4/26 kw 1cil. - Bastidores: --- 2010-2011
KTM EXC 150 TPI 7 CV, 5 kw 1cil. - Bastidores: --- 2020
KTM SX 125 1cil. - Bastidores: --- 2017-2020
KTM SX 125 35 CV, 26 kw 1cil. - Bastidores: --- 1993-2007
KTM SX 125 35 CV, 26 kw 1cil. - Bastidores: --- 2010-2016
KTM SX 125 39 CV, 29 kw 1cil. - Bastidores: --- 2008-2009
KTM SX 150 1cil. - Bastidores: --- 2009-2020
KTM XC-W 125 1cil. - Bastidores: --- 2017-2019
KTM XC-W 150 1cil. - Bastidores: --- 2017-2019
Suzuki RM 125 36 CV, 26 kw 1cil. RF13A J Bastidores: RF13A-105335-- 1988
Suzuki RM 125 36 CV, 26 kw 1cil. RF14A K Bastidores: RF14A-100001-RF14A-102530 1989
Suzuki RM 125 36 CV, 26 kw 1cil. RF14A L Bastidores: RF14A-102531-RF14A-104706 1990
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A M Bastidores: RF14A-104707-RF14A-107537 1991
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A N Bastidores: RF14A-107538-RF14A-110768 1992
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A P Bastidores: RF14A-110769-RF14A-113492 1993
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A R Bastidores: RF14A-113493-RF14A-115871 1994
Suzuki RM 125 38,5 CV, 28,3 kw 1cil. RF14A S Bastidores: RF14A-115872-- 1995
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A T Bastidores: RF15A-100001-RF15A-101275 1996
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A V Bastidores: RF15A-101276-RF15A-102552 1997
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A W Bastidores: RF15A-102553-RF15A-104211 1998
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A X Bastidores: RF15A-104212-RF15A-106058 1999
Suzuki RM 125 40 CV, 29 kw 1cil. RF15A Y Bastidores: RF15A-106059-- 2000
Suzuki RM 125 40 CV, 29 kw 1cil. RF16C K1 Bastidores: RF16C-12100001-- 2001
Suzuki RM 125 40 CV, 29 kw 1cil. RF16C K2 Bastidores: RF16C-22100001-- 2002
Suzuki RM 125 40 CV, 29 kw 1cil. RF16C K3 Bastidores: RF16C-32100001-- 2003
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16A K7 Bastidores: RF16A henceforth00502703-RF16A henceforth00503552 2007
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16C K4 Bastidores: RF16C-42100001-- 2004
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16C K5 Bastidores: RF16C-52100001-- 2005
Suzuki RM 125 41 CV, 30,2 kw 1cil. RF16C K6 Bastidores: RF16C-62100001-- 2006
