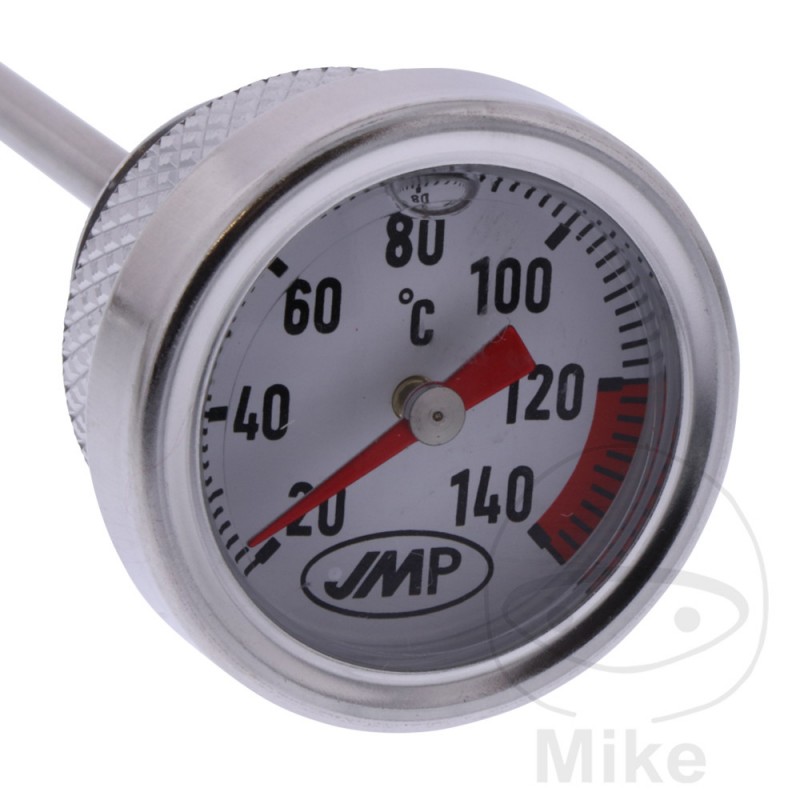

JMP Direct oil temperature indicator 23 X 3.0 MM ALTN: 7090128 709.11.35

JMP direct oil temperature gauge / analog display

The original oil fill plug must be replaced with the direct blade.

Please note that the probe is often only moistened with spun oil.

A measurement on, for example, the oil drain plug therefore gives a different value.

NOTE: Please carefully compare the thread diameter, pitch and length of the oil dipstick with the spare part!

ATTENTION: The air bubble in the sight glass ensures the expansion of the damping oil when heated,

no reason to complain!
THREAD: 23 X3.0
THREAD LENGTH: 11 MM
TOTAL LENGTH: 128MM
TUBE LENGTH (BARE): 112 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Adventure 640 E LC4 54/34 CV, 40 /25kw 1cil. - Bastidores: --- 2003-2007
KTM Adventure 640 LC4 49 CV, 36 kw 1cil. - Bastidores: --- 2001-2002
KTM Adventure 640 R 49 CV, 36 kw 1cil. - Bastidores: --- 1999-2000
KTM Duke 620 E 31/50 CV, 23/37 kw 1cil. - Bastidores: --- 1996
KTM Duke 620 E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM Duke 640 E II 34 CV, 25 kw 1cil. - Bastidores: --- 1999-2007
KTM Duke 640 E II 54 CV, 40 kw 1cil. - Bastidores: --- 1999-2007
KTM EGS 620 LC4 31 CV, 23 kw 1cil. - Bastidores: --- 1996
KTM EGS 620 LC4 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4 50 CV, 37 kw 1cil. - Bastidores: --- 1996
KTM EGS 620 LC4 LSE 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM EGS 620 LC4-E 32/50 CV, 23/37 kw 1cil. - Bastidores: --- 1997-1998
KTM LC4-E 640 Supermoto 49 CV, 36 kw 1cil. - Bastidores: --- 1999-2002
KTM LC4-E 640 Supermoto 54/34 CV, 40/25 kw 1cil. - Bastidores: --- 2003-2006
