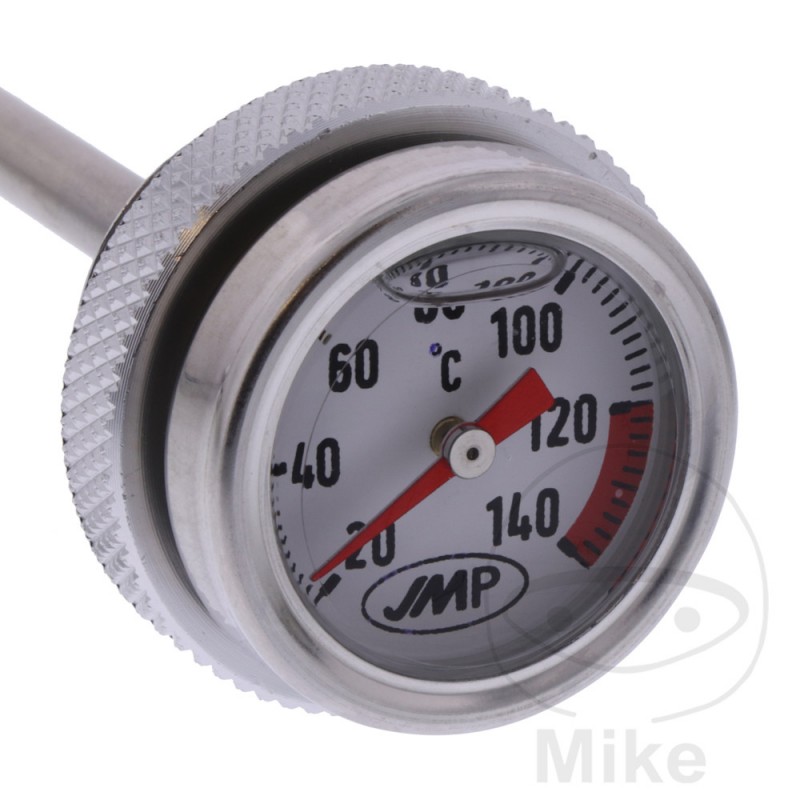

JMP Direct oil temperature indicator 30 X 2.0 MM ALTN: 7090101 709.00.71

JMP direct oil temperature gauge / analog display

The original oil fill plug must be replaced with the direct blade.

Please note that the probe is often only moistened with spun oil.

A measurement on, for example, the oil drain plug therefore gives a different value.

NOTE: Please carefully compare the thread diameter, pitch and length of the oil dipstick with the spare part!

ATTENTION: The air bubble in the sight glass ensures the expansion of the damping oil when heated,

no reason to complain!
THREAD: 30 X 2.0
THREAD LENGTH: 11 MM
OVERALL LENGTH: 176MM
TUBE LENGTH (BARE): 157 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 2L Bastidores: RD02-6300002-- 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 L Bastidores: RD02-6200001-RD02-6200550 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 M Bastidores: RD02-6400001-- 1991
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 N Bastidores: RD02-3500001-RD02-3500740 1992
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 P Bastidores: RD02-3600001-- 1993
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD02 R Bastidores: RD02-7000001-- 1994
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 M Bastidores: RD02-5400001-- 1991
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 N Bastidores: RD02-5500015-RD02-5508074 1992
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 P Bastidores: RD02-5600354-- 1993
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 R Bastidores: RD02-5700005-- 1994
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 2L Bastidores: RD02-5300009-- 1990
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 L Bastidores: RD02-5200136-RD02-5205987 1990
Honda NX 650 Dominator piñón engranaje fino 45 CV, 33 kw 1cil. RD02 K Bastidores: RD02-5100088-RD02-5105732 1989
Honda NX 650 Dominator piñón engranaje grueso 27 CV, 20 kw 1cil. RD02 J Bastidores: RD02-6000002-RD02-6000803 1988
Honda NX 650 Dominator piñón engranaje grueso 45 CV, 33 kw 1cil. RD02 J Bastidores: RD02-5000988-RD02-5012318 1988
Honda XL 600 LM Paris Dakar 27 CV, 20 kw 1cil. PD04 F Bastidores: PD04-5000001-PD04-5099999 1985-1986
Honda XL 600 LM Paris Dakar 44 CV, 32 kw 1cil. PD04 H Bastidores: PD04-5200002-PD04-5299999 1987
Honda XL 600 RM 27 CV, 20 kw 1cil. PD04 G Bastidores: PD04-6000002-PD04-6099999 1986
Honda XL 600 RM 44 CV, 32 kw 1cil. PD04 G Bastidores: PD04-5100001-PD04-5199999 1986
