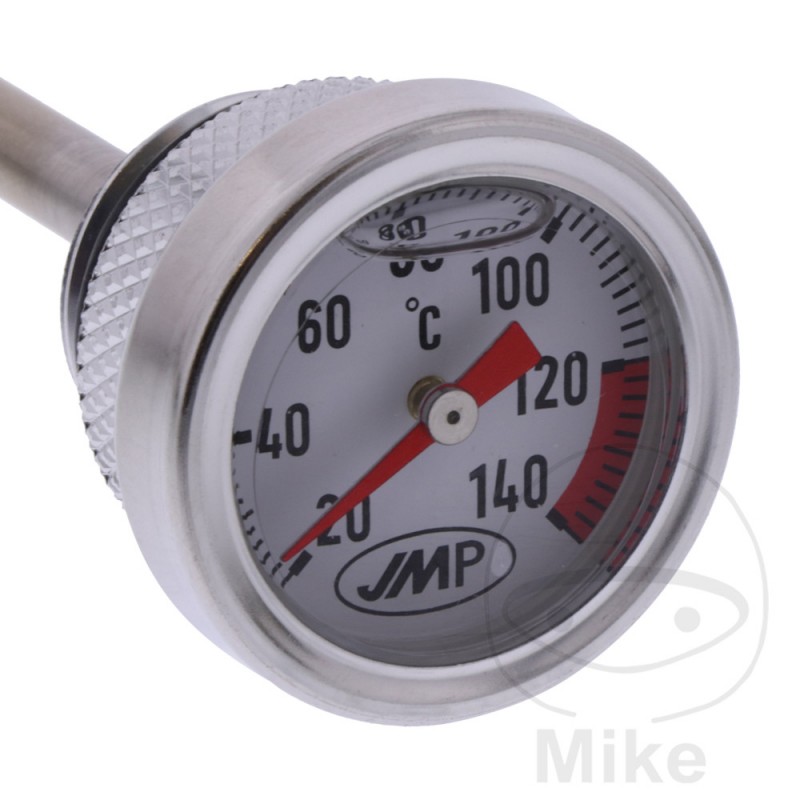

JMP Direct oil temperature indicator 24 X 3.0 MM ALTN: 7090098 709.00.68

JMP direct oil temperature gauge / analog display

The original oil fill plug must be replaced with the direct blade.

Please note that the probe is often only moistened with spun oil.

A measurement on, for example, the oil drain plug therefore gives a different value.

NOTE: Please carefully compare the thread diameter, pitch and length of the oil dipstick with the spare part!

ATTENTION: The air bubble in the sight glass ensures the expansion of the damping oil when heated,

no reason to complain!
THREAD: 24 X 3.0
THREAD LENGTH: 11 MM
TOTAL LENGTH: 145MM
TUBE LENGTH (BARE): 125 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 3 Bastidores: 1HF SC52A-3A000001-1HF SC52A-3A099999 2003
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 4 Bastidores: 1HF SC52A-4A100001-1HF SC52A-4A199999 2004
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 5 Bastidores: 1HF SC52A-5A200001-1HF SC52A-5A299999 2005
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 6 Bastidores: 1HF SC52A-6A300001-1HF SC52A-6A399999 2006
Honda VTX 1300 S 75 CV, 55 kw 2cil. SC52A 7 Bastidores: 1HF SC52A-7A400001-- 2007
