JMP Direct oil temperature indicator 24 X 3.0 MM ALTN: 7090094 709.00.65

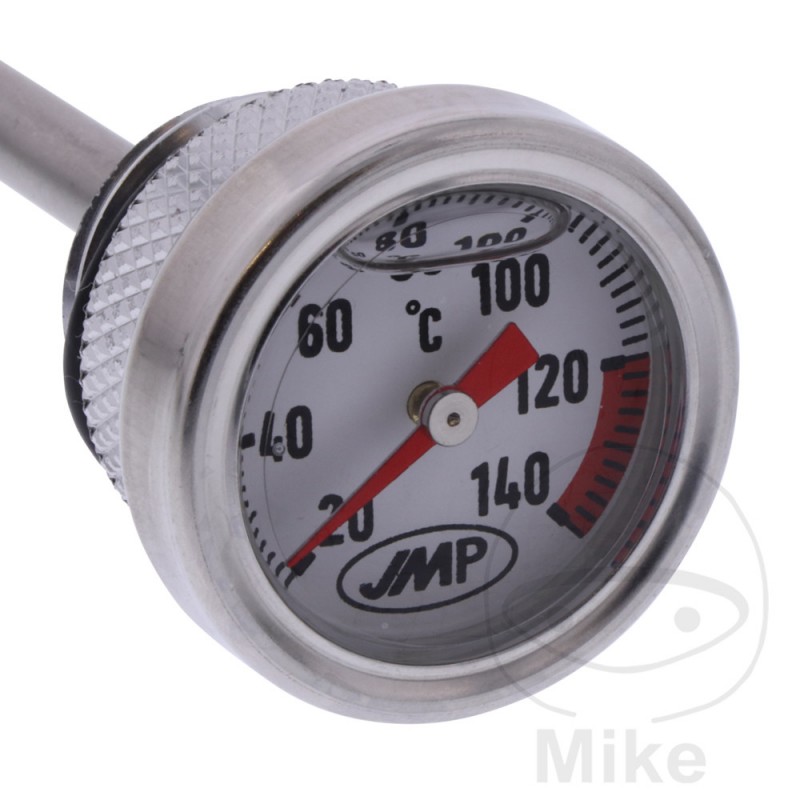

JMP direct oil temperature gauge / analog display

The original oil fill plug must be replaced with the direct blade.

Please note that the probe is often only moistened with spun oil.

A measurement on, for example, the oil drain plug therefore gives a different value.

NOTE: Please carefully compare the thread diameter, pitch and length of the oil dipstick with the spare part!

ATTENTION: The air bubble in the sight glass ensures the expansion of the damping oil when heated,

no reason to complain!
THREAD: 24 X 3.0
THREAD LENGTH: 11 MM
TOTAL LENGTH: 175MM
TUBE LENGTH (BARE): 155 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 1100 F Bol d´Or 100 CV, 74 kw 4cil. SC11 D Bastidores: SC11-2000016-SC11-2099999 1983-1984
Honda CB 1100 R 100 CV, 74 kw 4cil. SC05 B2 Bastidores: SC05-2000008-SC05-2000969 1981
Honda CB 1100 R 100 CV, 74 kw 4cil. SC08 C2 Bastidores: SC08-2000013-SC08-2001987 1982
Honda CB 1100 R 100 CV, 74 kw 4cil. SC08 D2 Bastidores: SC08-2100716-SC08-2102025 1983
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N Bastidores: CB400N-3000006-CB400N-3010850 1978-1979
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N A Bastidores: CB400N-3100001-CB400N-3199999 1980
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N B Bastidores: CB400N-3200002-CB400N-3207397 1981
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N C Bastidores: CB400N-3300004-CB400N-3399999 1982
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N D Bastidores: CB400N-3400001-CB400N-3499999 1983-1985
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N Bastidores: CB400N-2000001-CB400N-2099999 1978-1979
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N A Bastidores: CB400N-2100001-CB400N-2199999 1980
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N B Bastidores: CB400N-2200011-CB400N-2203108 1981
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N C Bastidores: CB400N-2300012-CB400N-2399999 1982
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N D Bastidores: CB400N-2400001-CB400N-2499999 1983-1985
Honda CB 400 T 27 CV, 20 kw 2cil. CB400T 2 Bastidores: CB400T-3000001-CB400T-3002700 1977-1978
Honda CB 400 T 43 CV, 32 kw 2cil. CB400T 2 Bastidores: CB400T-4000037-CB400T-4008558 1977-1978
Honda CB 450 N 27 CV, 20 kw 2cil. PC14 F Bastidores: 9C2 PC14-1000001-9C2 PC14-1099999 1985
Honda CB 450 N 44 CV, 32 kw 2cil. PC14 F Bastidores: 9C2 PC14-2000001-9C2 PC14-2099999 1985
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 A Bastidores: RC04-2116243-RC04-2125120 1980
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 B Bastidores: RC04-2200018-RC04-2213525 1981
Honda CB 750 F Bol d´Or 79 CV, 58 kw 4cil. RC04 C Bastidores: RC04-2300008-RC04-2399999 1982
Honda CB 750 F2 Bol d´Or 79 CV, 58 kw 4cil. RC04 C Bastidores: RC04-4000012-RC04-4099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 A Bastidores: SC01-2100002-SC01-2112185 1980
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-2200038-SC01-2209987 1981
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC01 Z Bastidores: SC01-2000050-SC01-2015357 1979
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-2000019-SC09-2099999 1982
Honda CB 900 F Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-2100001-SC09-2199999 1983
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC01 B Bastidores: SC01-4000012-SC01-4010949 1981
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 C Bastidores: SC09-4000025-SC09-4099999 1982
Honda CB 900 F2 Bol d´Or 95 CV, 70 kw 4cil. SC09 D Bastidores: SC09-4100001-SC09-4199999 1983
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 A Bastidores: NC01-3000002-NC01-3003047 1980
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 B Bastidores: NC01-3100002-NC01-3106001 1981
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 A Bastidores: NC01-2100001-- 1980
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 B Bastidores: NC01-2200466-NC01-2203476 1981
Honda CM 400 T Custom 27 CV, 20 kw 2cil. NC01 C Bastidores: NC01-3200004-NC01-3203044 1982-1983
Honda CM 400 T Custom 43 CV, 32 kw 2cil. NC01 C Bastidores: NC01-2300004-NC01-2301420 1982-1983
