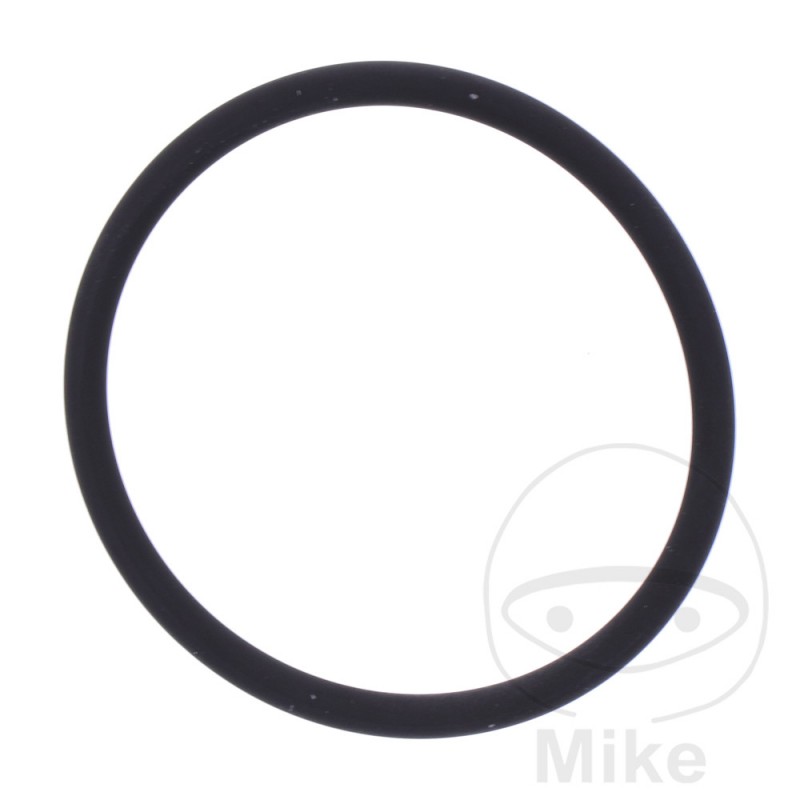

ATHENA exhaust manifold gasket 52 X 3.5 MM 734.24.62

Manifold gasket O-ring Athena

Athena, an international company founded in 1973, develops and manufactures seals, technical spare parts and metal components for the industrial and motorcycle sectors according to the highest quality standards UNI EN ISO 9001, 9002, 14001 and UNI ISO / TS 16949.



Athena is the reference point in the market for the preparation of gasket sets with a complete range of scooters, motorcycles on and off road, ATVs and Harley Davidson.



In the off-road world, Athena's group of engineers and technicians are developing new product lines in collaboration with key international MXGP and AMA Supercross teams.



Athena products undergo rigorous quality testing to assure customers of high standards of performance, competitiveness, and reliability.



Athena offers the widest range of replacement seals available on the market, with over 40 years of experience in the industry. Athena seal kits are based on in-depth knowledge, continuous technological development achieved by our in-house team of engineers and designers, and production strictly adjusted to the parameters required by OEMs.



Athena offers a range of stamps with excellent sealing properties, available in paper, cellulose, metal and rubber sheets and in various thicknesses to meet customer requirements.
INSIDE DIAMETER: 45.00MM
OUTSIDE DIAMETER: 52.0MM
THICKNESS: 3.50MM
SCREW MOUNTING: NONE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 125 B 1cil. - 2 Bastidores: --- 1983
Kawasaki KX 125 C 1cil. - 1 Bastidores: --- 1984
Kawasaki KX 125 D 1cil. - 1 Bastidores: --- 1985
Kawasaki KX 125 M 40,5 CV, 29,8 kw 1cil. KX125MMA 1 Bastidores: KX125MMA henceforth00001-KX125MMA henceforth10000 2003
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 2 Bastidores: KX125MMA henceforth10001-KX125MMA henceforth16000 2004
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 3 Bastidores: KX125MMA henceforth16001-KX125MMA henceforth21000 2005
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 6F Bastidores: KX125MMA henceforth21001-KX125MMA henceforth25000 2006
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 7F Bastidores: KX125MMA henceforth25001-KX125MMA henceforth27000 2007
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 8F Bastidores: KX125MMA henceforth27001-KX125MMA-999999 2008
Suzuki RM 125 1cil. RF13A H Bastidores: RF13A-103839-RF13A-105334 1987
Suzuki RM 125 36 CV, 26 kw 1cil. RF13A J Bastidores: RF13A-105335-- 1988
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B52 Bastidores: 3GG-270602-- 2005
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B55 Bastidores: 3GG-278192-- 2006
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5C Bastidores: 3GG-287814-- 2007
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5F Bastidores: 3GG-291898-- 2008
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5H Bastidores: 3GG-295292-- 2009
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5K Bastidores: 3GG-298342-- 2010
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 3B5M Bastidores: 3GG-299401-- 2011-2012
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FK7 Bastidores: 3GG-176268-- 2000
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKC Bastidores: 3GG-197900-- 2001
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKG Bastidores: 3GG-219967-- 2002
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKL Bastidores: 3GG-235833-- 2003
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKS Bastidores: 3GG-253821-- 2004
Yamaha YFZ 350 Banshee 46 CV, 34 kw 2cil. 3GG 5FKX Bastidores: 3GG-267798-- 2005
Yamaha YZ 125 1cil. CE16C 1SR6 Bastidores: CE16C henceforth20937-- 2013
Yamaha YZ 125 1cil. CE16C 1SRA Bastidores: CE16C henceforth22368-- 2014
Yamaha YZ 125 1cil. CE16C 1SRE Bastidores: CE16C henceforth02447-- 2015
Yamaha YZ 125 1cil. CE16C 1SRJ Bastidores: CE16C henceforth27164-- 2016
Yamaha YZ 125 1cil. CE16C 1SRN Bastidores: CE16C henceforth29632-- 2017
Yamaha YZ 125 1cil. CE16C 1SRT Bastidores: CE16C henceforth33073-- 2018
Yamaha YZ 125 1cil. CE16C B0V2 Bastidores: CE16C henceforth36983-- 2019
Yamaha YZ 125 1cil. CE16C B0V6 Bastidores: CE16C henceforth40775-- 2020
Yamaha YZ 125 39 CV, 29 kw 1cil. CE03C 5ET2 Bastidores: CE03C henceforth00239-- 1999
Yamaha YZ 125 39 CV, 29 kw 1cil. CE05C 5HD2 Bastidores: CE05C henceforth00239-- 2000
Yamaha YZ 125 39 CV, 29 kw 1cil. CE08C 5MV2 Bastidores: CE08C henceforth01740-- 2001
Yamaha YZ 125 39 CV, 29 kw 1cil. CE09C 5NY2 Bastidores: CE09C henceforth00542-- 2002
Yamaha YZ 125 39 CV, 29 kw 1cil. CE10C 5UN2 Bastidores: CE10C henceforth00344-- 2003
Yamaha YZ 125 39 CV, 29 kw 1cil. CE13C 5XE2 Bastidores: CE13C henceforth00176-- 2004
Yamaha YZ 125 39 CV, 29 kw 1cil. CE15C 1C32 Bastidores: CE15C henceforth00348-- 2005
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C36 Bastidores: CE16C henceforth00284-- 2006
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3A Bastidores: CE16C henceforth07439-- 2007
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3E Bastidores: CE16C henceforth10244-- 2008
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3J Bastidores: CE16C henceforth13131-- 2009
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3N Bastidores: CE16C henceforth15372-- 2010
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1C3T Bastidores: CE16C henceforth16971-- 2011
Yamaha YZ 125 39 CV, 29 kw 1cil. CE16C 1SR2 Bastidores: CE16C henceforth19022-- 2012
