JMP Standard cylinder kit 12 MM 756.22.43

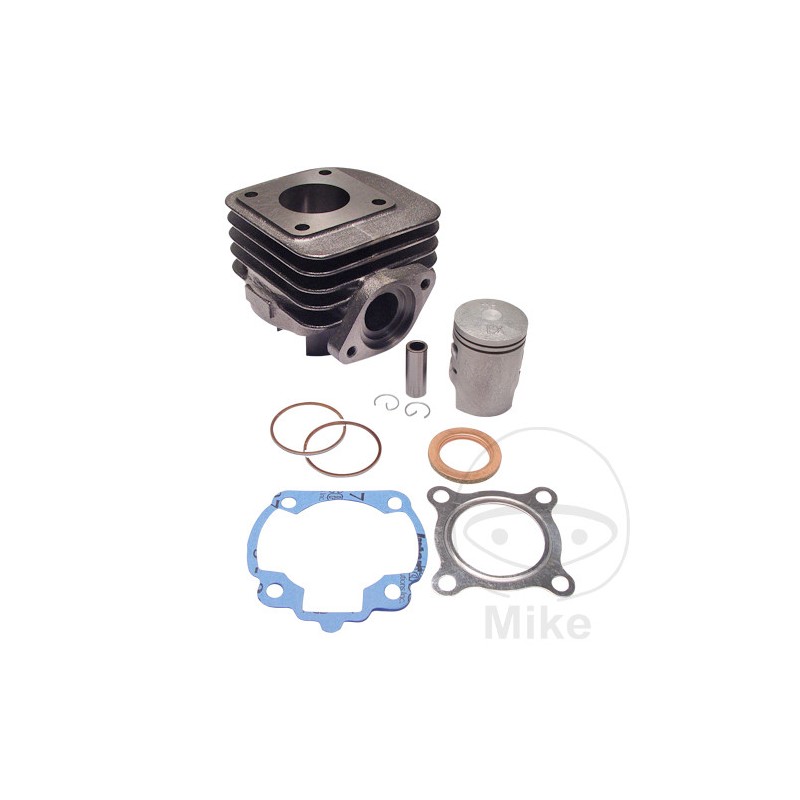

Air cooled JMT cast iron cylinder without top quality performance increase. The cylinder has the same technical data as the original cylinder, the scope of delivery includes:

- cylinder

- Pistons, including piston rings and clips

- seals

The stock is not included in the scope of delivery, the old stock can still be used.

ATTENTION: The piston rings are trapezoidal piston rings. These only fit into the ring grooves in one direction.

There is a gasket mark on the piston rings, this should point up for correct mounting. Otherwise, the piston cannot be pushed into the cylinder.

Piston rings have different thicknesses: at the top 1.2 mm, at the bottom 1.5 mm.

Piston Pin: 12mm.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
ATU Meteorit 50 Yup 4,5 CV, 3,3 kw 1cil. S60000 Bastidores: --- 2002-2004
Kymco Agility 50 R12 2T RS 3,8 CV, 2,8 kw 1cil. U10000 Bastidores: LC2U10000-- 2011-2014
Kymco Agility 50 R12 2T RS Naked 3,8 CV, 2,8 kw 1cil. U10000 Bastidores: LC2U10000-- 2010-2019
Kymco Cobra 50 Cross 4,8 CV, 3,5 kw 1cil. SF10AF SF Bastidores: RFBSF10AF-- 1997-1999
Kymco Cobra 50 Racer 4,8 CV, 3,5 kw 1cil. SF10AG SF Bastidores: RFBSF10AG-- 1997-1999
Kymco Grand Dink 50 3,5 CV, 2,6 kw 1cil. S90000 S9 Bastidores: RFBS90000-- 2005-2007
Kymco Grand Dink 50 3,9 CV, 2,9 kw 1cil. S90010 S9 Bastidores: RFBS90010-- 2008
Kymco Grand Dink 50 S 3,9 CV, 2,9 kw 1cil. S90020 S9 Bastidores: RFBS90020-- 2008-2013
Kymco Like 50 2T 3,8 CV, 2,8 kw 1cil. D10000 KN25AA Bastidores: LC2D10000-- 2011-2019
Kymco Like 50 2T LX 3,8 CV, 2,8 kw 1cil. D10000 KN25AA Bastidores: LC2D10000-- 2014-2015
Kymco People 50 2T 3,8 CV, 2,8 kw 1cil. B10020 B1 Bastidores: RFBB10020-- 2005-2009
Kymco People 50 2T 4,1 CV, 3 kw 1cil. B10000 B1 Bastidores: RFBB10000-- 2000-2002
Kymco People 50 2T 4,1 CV, 3 kw 1cil. B10010 B1 Bastidores: RFBB10010-- 2003-2004
Kymco People 50 S 2T 4,5 CV, 3,3 kw 1cil. B90000 Bastidores: RFBB90000-- 2012-2017
Kymco Super 8 50 2T 3,4 CV, 2,5 kw 1cil. U90000 KF10AA Bastidores: LC2U90000-- 2009-2012
Kymco Super 8 50 2T 3,4 CV, 2,5 kw 1cil. U91000 KF10CA Bastidores: LC2U91000-- 2013-2019
Kymco Super 9 50 AC 3,7 CV, 2,7 kw 1cil. S10110 S1 Bastidores: RFBS10110-21-- 2007-2009
Kymco Super 9 50 AC 4,5 CV, 3,3 kw 1cil. S10100 S1 Bastidores: RFBS10100-- 2003-2004
Kymco Super 9 50 AC 4,5 CV, 3,3 kw 1cil. S10110 S1 Bastidores: RFBS10110-14-- 2005-2006
Kymco Super 9 50 AC 4,6 CV, 3,4 kw 1cil. S10100 S1 Bastidores: RFBS10100-- 2001-2002
Kymco Super 9 50 AC Sports 4,4 CV, 3,2 kw 1cil. S10140 S1 Bastidores: RFBS10140-- 2008-2011
Kymco Top Boy 50 Cross 4,1 CV, 3 kw 1cil. SF10AK SF Bastidores: RFBSF10AK-- 2005-2006
Kymco Top Boy 50 Cross 4,3 CV, 3,2 kw 1cil. SF10AK SF Bastidores: RFBSF10AK-- 2003-2004
Kymco Top Boy 50 Cross 4,8 CV, 3,5 kw 1cil. SF10AF SF Bastidores: RFBSF10AF-- 2000-2002
Kymco Top Boy 50 Racer 4,3 CV, 3,2 kw 1cil. SF10AK SF Bastidores: RFBSF10AG-15-- 2003
Kymco Top Boy 50 Racer 4,8 CV, 3,5 kw 1cil. SF10AG SF Bastidores: RFBSF10AG-- 2000-2002
Kymco Top Boy 50 Racer Exclusive 4,8 CV, 3,5 kw 1cil. SF10AG SF Bastidores: RFBSF10AG-55-- 2000-2001
Kymco Vitality 50 2T 3,9 CV, 2,9 kw 1cil. U30000 U3 Bastidores: RFBU30000-- 2004-2009
Kymco Vitality 50 2T 3,9 CV, 2,9 kw 1cil. U30000 U3 Bastidores: RFBU30000-- 2014-2018
Kymco Vitality 50 2T 4,5 CV, 3,3 kw 1cil. - Bastidores: --- 2012-2013
Kymco Vitality 50 2T Cross/Sport 3,9 CV, 2,9 kw 1cil. U30030 U3 Bastidores: RFBU30030-- 2007-2008
Kymco Yager/Spacer 50 2T 4,2 CV, 3,1 kw 1cil. SH10AC SH10 Bastidores: RFBSH10AC-- 1998-2004
Kymco Yager/Spacer 50 2T 4,2 CV, 3,1 kw 1cil. T80000 T8 Bastidores: RFBT80000-- 2005-2008
Kymco Yup 50 3,4 CV, 2,5 kw 1cil. S60010 S6 Bastidores: RFBS60010-- 2007-2010
Kymco Yup 50 4,5 CV, 3,3 kw 1cil. S60000 S6 Bastidores: RFBS60000-- 2002-2004
Kymco Yup 50 4,5 CV, 3,3 kw 1cil. S60010 S6 Bastidores: RFBS60010-- 2005-2006
