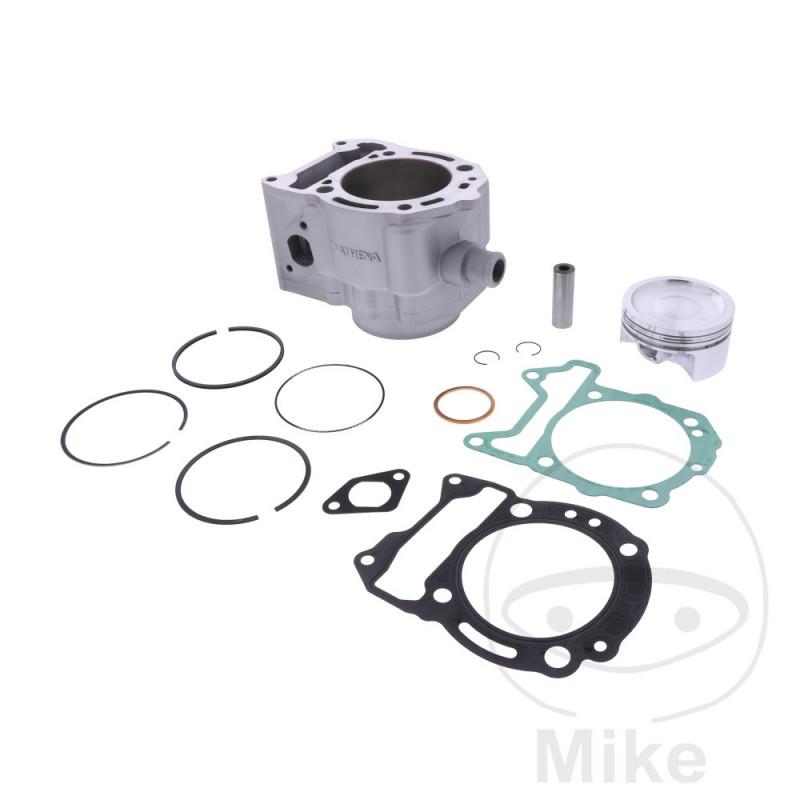

ATHENA Standard cylinder kit 249CC 756.21.65

Athena cylinder set



For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.



Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.



Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).



Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality checks, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Displacement: 249.4ccm

DIAMETER: 72MM

STROKE: 63MM

Compression: 12.4:1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Piaggio Beverly 250 GT 21,2 CV, 15,6 kw 1cil. M28500 Bastidores: ZAPM28500 henceforth0001001-ZAPM28500 henceforth0999999 2004-2005
Piaggio Beverly 250 GT 22 CV, 16 kw 1cil. M28500 Bastidores: ZAPM28500 henceforth1000001-- 2006-2008
Piaggio Beverly 250 ie Cruiser 22 CV, 16 kw 1cil. M28802 Bastidores: ZAPM28802 henceforth0001001-- 2007-2008
Piaggio Beverly 250 ie Tourer 22,5 CV, 16,5 kw 1cil. M28801 Bastidores: ZAPM28801 henceforth0001001-- 2008-2009
Piaggio Carnaby 250 ie 21,7 CV, 16 kw 1cil. M60300 Bastidores: ZAPM60300 henceforth0001001-- 2009-2010
Piaggio MP3 250 LT ie 22,5 CV, 16,5 kw 1cil. M64100 Bastidores: ZAPM64100 henceforth0001001-- 2009-2010
Piaggio MP3 250 RL ie 22,5 CV, 16,5 kw 1cil. M47201 Bastidores: ZAPM47201 henceforth0001001-- 2007-2008
Piaggio MP3 250 RL ie MIC 22,5 CV, 16,5 kw 1cil. M63200 Bastidores: ZAPM63200 henceforth0001001-- 2009-2010
Piaggio X7 250 ie 22,2 CV, 16,3 kw 1cil. M62200 Bastidores: ZAPM62200 henceforth0001001-- 2008-2010
Piaggio X8 250 ie 21,2 CV, 15,6 kw 1cil. M36400 Bastidores: ZAPM36400 henceforth0001001-- 2006-2008
Piaggio X9 250 Evolution 1cil. M23000000 Bastidores: ZAPM23000000 henceforth1001-ZAPM23000045 henceforth0005 2004-2005
Piaggio X9 250 Evolution 1cil. M23000000 Bastidores: ZAPM23000045 henceforth0006-- 2006
Piaggio XEvo 250 ie 21,7 CV, 16 kw 1cil. M36401 Bastidores: --- 2007-2010
Vespa GTS 250 ie 21,3 CV, 15,7 kw 1cil. M45100 Bastidores: ZAPM45100 henceforth0001001-- 2006-2011
Vespa GTS 250 ie ABS 21,3 CV, 15,7 kw 1cil. M45101 Bastidores: ZAPM45101 henceforth0001001-- 2006-2009
Vespa GTV 250 ie 21,3 CV, 15,7 kw 1cil. M45102 Bastidores: ZAPM45102 henceforth0001001-- 2007-2011
Vespa GTV 300 ie Via Montenapoleone 21,5 CV, 15,8 kw 1cil. M45201 Bastidores: ZAPM45201 henceforth0001001-- 2010-2011
Vespa GTV 300 ie Vie Della Moda 21,5 CV, 15,8 kw 1cil. M4520 Bastidores: ZAPM4520 henceforth00001001-- 2012-2013
