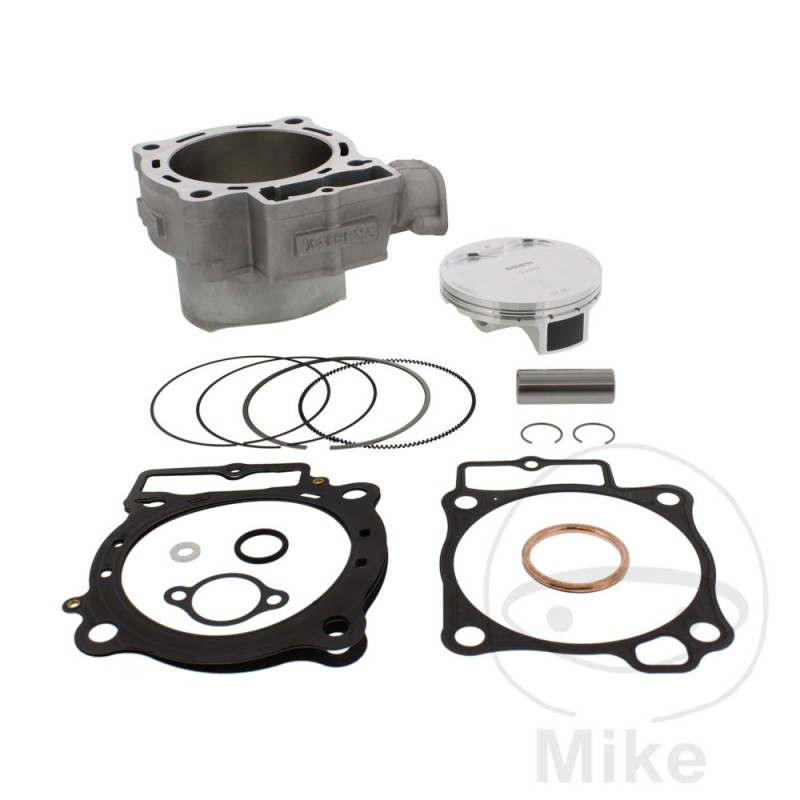

ATHENA motorcycle cylinder kit 468CCM BIG BORE 756.20.08

Athena cylinder set



For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.



Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities and constant development requests from the best engine tuners.



Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).



Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy. Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.





Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- Cylinder liners are made from a special blend of silicon carbide and nickel to ensure the best possible piston mileage and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- The surfaces of the cylinders are perfectly flat to eliminate any inaccuracies of fit







Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 98mm

Stroke: 64.80mm

Displacement: 468.4cc

Compression: 13.5:1

Piston pin diameter: 19 mm

Stock: not included in delivery

Maximum power at the crankshaft: 57.3 HP / 9500 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CRF 450 R 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 R 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 RX 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 RX 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
