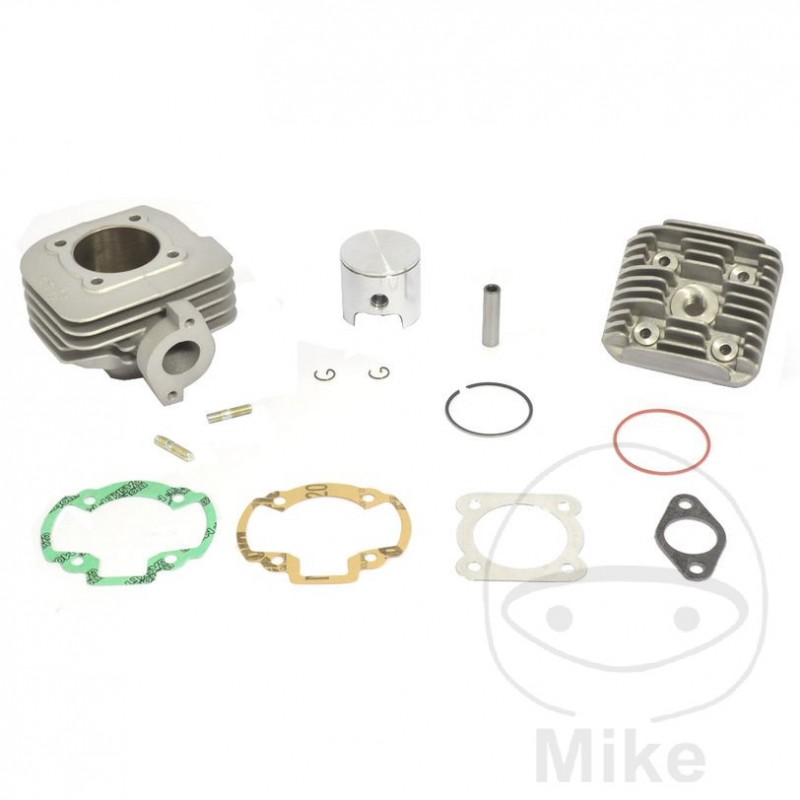

ATHENA motorcycle cylinder kit 70CC BIG BORE 756.19.62

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy. Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- Cylinder liners are made from a special blend of silicon carbide and nickel to ensure the best possible piston life and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- The surfaces of the cylinders are perfectly flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: air cooled

Diameter: 47mm

Stroke: 37.4mm

Displacement: 64.85cc

Piston pin diameter: 10 mm

Number of transfer channels: 5

Piston crown shape: flat

Number of piston rings: 1

Upper Piston Ring Thickness: 1.2mm

Piston Ring Type: Chrome

Outlet: 1 x oval


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Habana 50 2,7 CV, 2 kw 1cil. PK000 Bastidores: --- 1999
Aprilia Habana 50 Custom 2,7 CV, 2 kw 1cil. PK001 Bastidores: --- 1999
Aprilia Habana 50 Custom KAT 2,7 CV, 2 kw 1cil. PKE10 Bastidores: --- 2000-2001
Aprilia Habana 50 KAT 2,7 CV, 2 kw 1cil. PKD00 Bastidores: --- 2000-2001
Aprilia Habana/Mojito 50 Custom KAT 2,7 CV, 2 kw 1cil. PKE10 Bastidores: --- 2002-2004
Aprilia Habana/Mojito 50 KAT 2,7 CV, 2 kw 1cil. PKD00 Bastidores: --- 2002-2004
Atala/Rizzato AT10 25 AC Byte 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 1997-2001
Atala/Rizzato AT10 50 AC Byte 4,1 CV, 3 kw 1cil. - Bastidores: --- 1997-2001
Atala/Rizzato AT12 50 AC Hacker 4,1 CV, 3 kw 1cil. - Bastidores: --- 1996-1999
Atala/Rizzato AT12 50 AC Hacker Racing 4,1 CV, 3 kw 1cil. - Bastidores: --- 1996-1999
Buffalo/Quelle AT10 25 Byte 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2000-2001
Buffalo/Quelle AT10 50 Byte 4,1 CV, 3 kw 1cil. - Bastidores: --- 2000-2001
Derbi Vamos 25 DT 1,9 CV, 1,4 kw 1cil. VAMOS M Bastidores: --- 1995-1996
Derbi Vamos 25 FL DT 1,9 CV, 1,4 kw 1cil. VAMOS M Bastidores: --- 1996-1997
Derbi Vamos 25 SE DT 1,9 CV, 1,4 kw 1cil. VAMOS M Bastidores: --- 1997-1998
Derbi Vamos 25 TT 1,9 CV, 1,4 kw 1cil. VAMOS M Bastidores: --- 1993-1994
Derbi Vamos 50 DT 4,1 CV, 3 kw 1cil. VAMOS G Bastidores: --- 1995-1996
Derbi Vamos 50 FL DT 4,1 CV, 3 kw 1cil. VAMOS G Bastidores: --- 1996-1997
Derbi Vamos 50 R DT 4,1 CV, 3 kw 1cil. VAMOS G Bastidores: --- 1994
Derbi Vamos 50 SE DT 4,1 CV, 3 kw 1cil. VAMOS G Bastidores: --- 1997-1998
Derbi Vamos 50 TT 4,1 CV, 3 kw 1cil. VAMOS G Bastidores: --- 1993-1994
Hyosung SB 50 G Cab 4,1 CV, 3 kw 1cil. SB50G Bastidores: --- 1997
Hyosung SB 50 G Gamma 4,1 CV, 3 kw 1cil. SB50G Bastidores: --- 1998-1999
Italjet Formula 50 AC DD 4,7 CV, 3,5 kw 1cil. FR50 Bastidores: --- 1995-1997
Italjet Formula 50 AC DD Race 4,7 CV, 3,5 kw 1cil. FR50 Bastidores: --- 1996
Italjet Formula 50 AC DD Sport 4,7 CV, 3,5 kw 1cil. FR50 Bastidores: --- 1998
Italjet Formula 50 AC DT 4,7 CV, 3,5 kw 1cil. FR50 Bastidores: --- 1997-1998
Italjet Formula 50 AC DT 4,7 CV, 3,5 kw 1cil. ZJTFRH2BS Bastidores: --- 1999-2003
Italjet Torpedo 50 2T 4,2 CV, 3,1 kw 1cil. ZJTTR0000 Bastidores: --- 1998-1999
Italjet Torpedo 50 2T 4,8 CV, 3,5 kw 1cil. TP Bastidores: --- 2000-2003
Italjet Velocifero 50 4,2 CV, 3,1 kw 1cil. CS2VF10 Bastidores: --- 1995-2000
Malaguti CR1 50 Crosser 2,7 CV, 2 kw 1cil. 43 Bastidores: --- 1996
Malaguti CR1 50 Crosser 2,7 CV, 2 kw 1cil. ZJM 43 Bastidores: --- 1999-2001
Malaguti CR1 50 Crosser 3,8 CV, 2,8 kw 1cil. 43 Bastidores: --- 1997-1998
Suzuki AH 50 Address 4,2 CV, 3,1 kw 1cil. CA1GA N Bastidores: CA1GA-100001-CA1GA-148014 1992-1993
Suzuki AH 50 Address 4,2 CV, 3,1 kw 1cil. CA1GA R Bastidores: CA1GA-148015-- 1994-1995
Suzuki AP 50 4,2 CV, 3,1 kw 1cil. CA1JA S Bastidores: CA1JA henceforth00501925-CA1JA henceforth00541995 1995-1996
Suzuki AP 50 4,4 CV, 3,2 kw 1cil. CA1JA V Bastidores: CA1JA henceforth00541996-CA1JA henceforth00550865 1997
Suzuki AP 50 4,4 CV, 3,2 kw 1cil. CA1JA W Bastidores: CA1JA henceforth00550866-- 1998-1999
Suzuki AY 50 AC Katana 2,7 CV, 2 kw 1cil. AA4112 K1 Bastidores: AA4112 henceforth0109860-AA4112 henceforth0111300 2001
Suzuki AY 50 AC Katana 2,7 CV, 2 kw 1cil. AA4112 K2 Bastidores: AA4112 henceforth0111301-- 2002
Suzuki AY 50 AC Katana 2,8 CV, 2 kw 1cil. AAJ111 K3 Bastidores: AAJ111 henceforth0100001-AAJ111 henceforth0103061 2003
Suzuki AY 50 AC Katana 2,9 CV, 2,1 kw 1cil. AAJ111 K4 Bastidores: AAJ111 henceforth0103062-- 2004
Suzuki AY 50 AC Katana 4,2 CV, 3,1 kw 1cil. AA4112 V Bastidores: AA4112 henceforth0100001-AA4112 henceforth0103368 1997
Suzuki AY 50 AC Katana 4,2 CV, 3,1 kw 1cil. AA4112 W Bastidores: AA4112 henceforth0103369-AA4112 henceforth0105768 1998
Suzuki AY 50 AC Katana 4,2 CV, 3,1 kw 1cil. AA4112 X Bastidores: AA4112 henceforth0105769-AA4112 henceforth0108236 1999
Suzuki AY 50 AC Katana 4,2 CV, 3,1 kw 1cil. AA4112 Y Bastidores: AA4112 henceforth0108237-AA4112 henceforth0109659 2000
Suzuki UF 50 Estilete 2,7 CV, 2 kw 1cil. BA1111 K1 Bastidores: BA1111 henceforth0109710-- 2001
Suzuki UF 50 Estilete 2,7 CV, 2 kw 1cil. BA1111 Y Bastidores: BA1111 henceforth0100001-BA1111 henceforth0109709 2000
