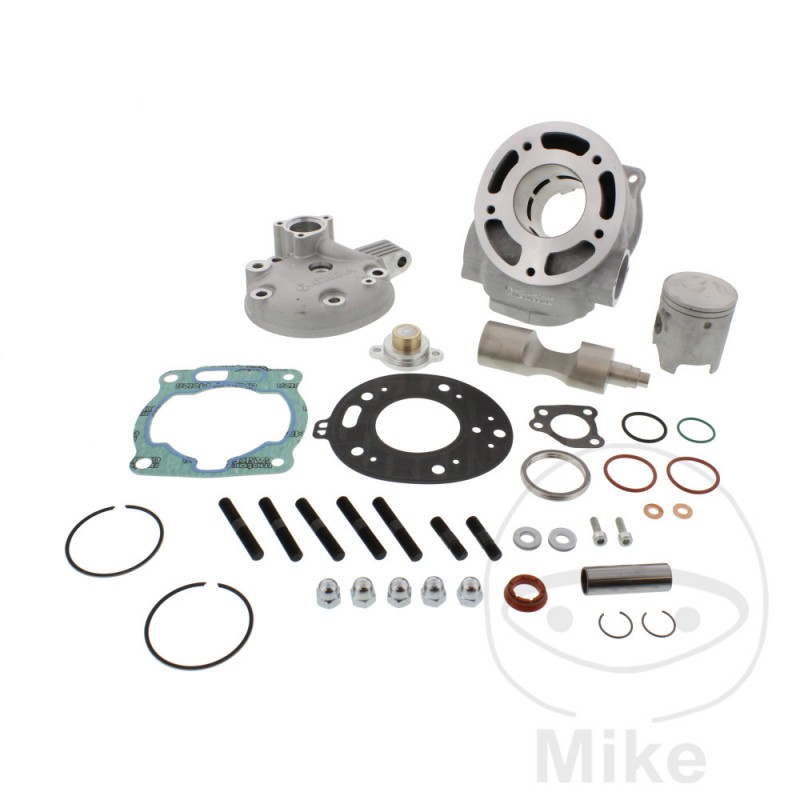

ATHENA Standard cylinder kit 125CC 756.17.56

Athena cylinder set

For over 10 years, Athena has been investing in the best and most advanced cylinder manufacturing technologies and components used not only by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

Technical information:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 56mm.

Stroke: 50.68mm

Displacement: 124.7cc

Compaction: 13.2: 1

Piston Pin Diameter: 16mm.

Number of overflow channels: 5

Piston crown shape: arched

Number of piston rings: 2

Upper Piston Ring Thickness: 1mm.

Second piston ring thickness: 1mm

Piston Ring Type: Chrome

Membrane material: not included

outlet: oval

stock: included

Maximum power at the crankshaft: 22 HP / 11,500 RPM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Derbi GPR 125 2T Nude 15 CV, 11 kw 1cil. GS1A1B Bastidores: VTHGS1A1B5H271057-- 2005-2007
Derbi GPR 125 2T Racing 15 CV, 11 kw 1cil. GS1A1A Bastidores: VTHGS1A1A5H270137-- 2005-2009
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM3 Bastidores: 4BL henceforth00101-- 1991
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM4 Bastidores: 4BL henceforth10101-4BL henceforth13000 1992-1993
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM6 Bastidores: 4BL henceforth23101-4BL henceforth28999 1994-1995
Yamaha DT 125 R 12 CV, 9 kw 1cil. 4BL 3RM8 Bastidores: 4BL henceforth38101-- 1996
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D01 Bastidores: DE061 henceforth00142-DE061 henceforth06706 2004
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D02 Bastidores: DE061 henceforth08114-- 2005
Yamaha DT 125 RE 15 CV, 11 kw 1cil. DE061 1D04 Bastidores: DE061 henceforth12162-DE061 henceforth16329 2006
Yamaha DT 125 RE MX Everts 15 CV, 11 kw 1cil. DE061 1D03 Bastidores: DE061 henceforth10212-- 2005-2006
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RM9 Bastidores: 4BL henceforth52099-- 1997
Yamaha DT 125 RH 12 CV, 9 kw 1cil. 4BL 3RMB Bastidores: 4BL henceforth86042-- 1998
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMD Bastidores: DE031 henceforth00301-- 1999
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMJ Bastidores: DE031 henceforth03387-- 2000-2001
Yamaha DT 125 RH 14 CV, 10,4 kw 1cil. DE031 3RMM Bastidores: DE031 henceforth07068-- 2002-2003
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMA Bastidores: 4BL henceforth57669-- 1997
Yamaha DT 125 RN 80 Km/h 10 CV, 7,4 kw 1cil. 4BL 3RMC Bastidores: 4BL henceforth80321-- 1998
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RME Bastidores: DE032 henceforth00301-- 1999
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMG Bastidores: DE032 henceforth02301-- 2000-2001
Yamaha DT 125 RN 80 Km/h 12 CV, 9 kw 1cil. DE032 3RMK Bastidores: DE032 henceforth05008-- 2002-2003
Yamaha DT 125 X 15 CV, 11 kw 1cil. DE062 2C81 Bastidores: DE062 henceforth00005-- 2005
Yamaha DT 125 X 15 CV, 11 kw 1cil. DE062 2C82 Bastidores: DE062 henceforth05764-DE062 henceforth08864 2006
Yamaha TDR 125 12,6 CV, 9,3 kw 1cil. 4GW 4GW1 Bastidores: 4GW henceforth00101-- 1993-1995
Yamaha TDR 125 12,6 CV, 9,3 kw 1cil. 4GW 4GW4 Bastidores: 4GW henceforth24101-- 1996
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN2 Bastidores: 5AN henceforth01721-- 1997
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN4 Bastidores: 5AN henceforth04730-- 1998
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN6 Bastidores: 5AN henceforth08226-- 1999
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5AN8 Bastidores: 5AN henceforth10289-- 2000
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5ANA Bastidores: 5AN henceforth11362-- 2001
Yamaha TDR 125 H 15 CV, 11 kw 1cil. 5AN 5ANC Bastidores: 5AN henceforth12725-- 2002
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN1 Bastidores: 5AN henceforth00901-- 1997
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN3 Bastidores: 5AN henceforth04630-- 1998
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN5 Bastidores: 5AN henceforth08385-- 1999
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN7 Bastidores: 5AN henceforth10403-- 2000
Yamaha TDR 125 N 80 Km/h 15 CV, 11 kw 1cil. 5AN 5AN9 Bastidores: 5AN henceforth11591-- 2001
Yamaha TZR 125 15 CV, 11 kw 1cil. 4FL 4FL4 Bastidores: 4FL henceforth16877-- 1997-1999
