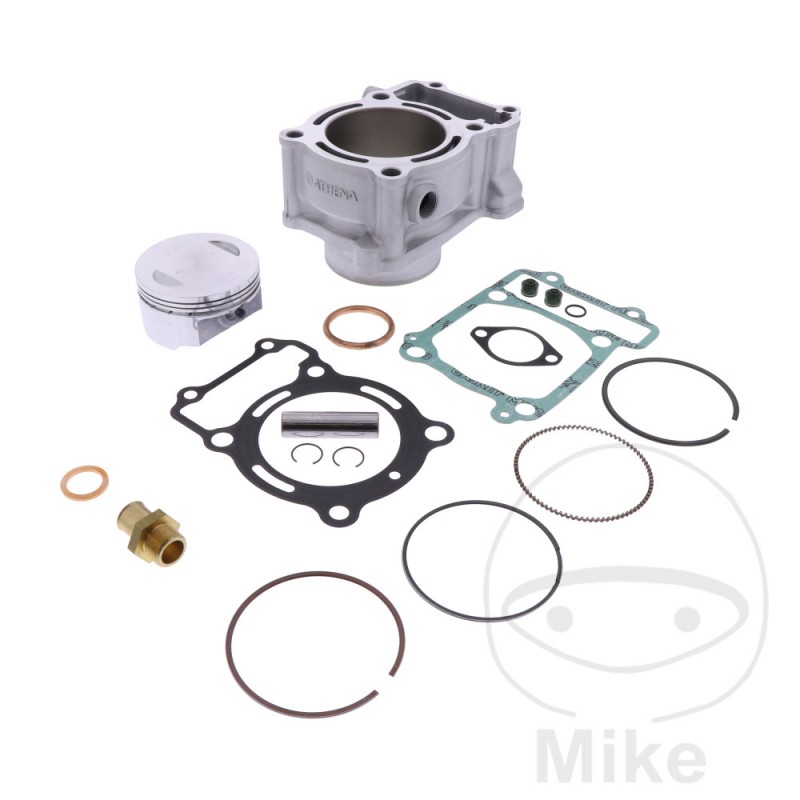

ATHENA motorcycle cylinder kit 166 CC BIG BORE 756.13.27

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most advanced technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

Characteristic:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured using CNC machines (thousandths of tolerances can therefore be guaranteed in all production phases)

- Revised water channels to increase capacity

- The cylinder liners are made of a special silicon carbide and nickel compound to ensure the best piston and cylinder life.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and the cylinder.

- Cylinder surfaces are perfectly flat to eliminate any inaccuracies of fit

Technical information:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 67mm.

Stroke: 47.2mm

Displacement: 166.4cc

Compaction: 11.4: 1

Piston Pin Diameter: 13mm.

stock: not included

Maximum power at the crankshaft: 33.25 HP / 10400 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 125 R 13,6 CV, 10 kw 1cil. JC34A 4 Bastidores: MLH JC34A-45000001-MLH JC34A-45099999 2004
Honda CBR 125 R 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A 555100001-MLH JC34A-555199999 2005
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A-555100001-MLH JC34A-555199999 2005
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC34A 6 Bastidores: MLH JC34A-65200001-MLH JC34A-65299999 2006-2007
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A-555100001-MLH JC34A-555199999 2005
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC34A 6 Bastidores: MLH JC34A-65200001-MLH JC34A-65299999 2006
