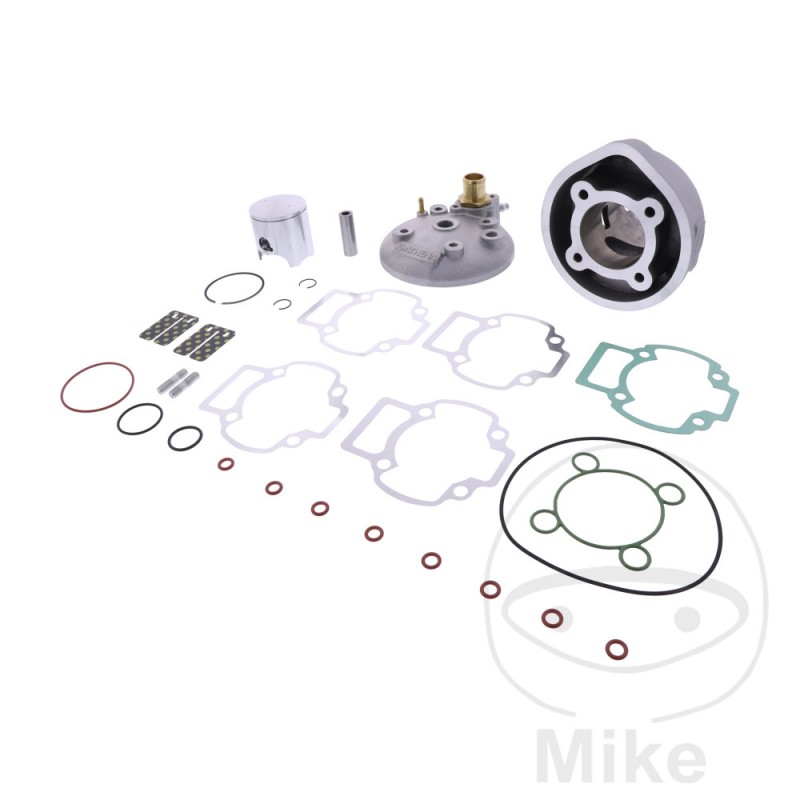

ATHENA motorcycle cylinder kit 70CC BIG BORE 756.10.61

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality controls, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- The cylinder liners consist of a special mixture of silicon carbide and nickel to ensure the best piston running performance and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- Cylinder surfaces are completely flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 47.6mm.

Stroke: 39.3mm

Displacement: 69.9cc

Compression: 13.9:1

Piston Pin Diameter: 12mm.

Number of overflow channels: 5

Piston crown shape: curved

Number of piston rings: 1

Upper Piston Ring Thickness: 1mm.

Piston Ring Type: Chrome

Membrane material: carbon

Outlet: 1 x oval

Stock: included in delivery


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia SR 50 LC Funmaster 3,7 CV, 2,7 kw 1cil. TEA00 Bastidores: --- 2004-2005
Derbi GP1 50 LC 5,3 CV, 3,9 kw 1cil. PREDWB/SB Bastidores: --- 2002
Derbi GP1 50 LC 5,3 CV, 3,9 kw 1cil. PREDXB Bastidores: --- 2003-2004
Derbi GP1 50 LC Open 4,5 CV, 3,3 kw 1cil. PR1B1A Bastidores: VTHPR1B1A6G239685-- 2007-2011
Derbi GP1 50 V1 LC transmisión cadena 5,3 CV, 3,9 kw 1cil. PR1A1A Bastidores: --- 2005-2006
Derbi GP1 50 V2 LC transmisión cadena 3,5 CV, 2,6 kw 1cil. PR1A1A Bastidores: VTHPR1A1A5G221879-- 2005-2007
Gilera DNA 50 4,8 CV, 3,5 kw 1cil. C27000 Bastidores: ZAPC27000 henceforth0001001-ZAPC27000 henceforth0999999 2000-2002
Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-1000001-ZAPC270000-1999999 2003
Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-2000001-ZAPC270000-2999999 2004
Gilera DNA 50 GP Experience 4,8 CV, 3,5 kw 1cil. C270000 Bastidores: ZAPC270000-3000001-- 2005
Gilera Runner 50 DD 4,2 CV, 3,1 kw 1cil. C14000 Bastidores: ZAPC14000 henceforth3000001-- 1998-2001
Gilera Runner 50 DT 4,2 CV, 3,1 kw 1cil. C14000 Bastidores: ZAPC14000 henceforth0001011-- 1997-1998
Gilera Runner 50 SP DD 4,2 CV, 3,1 kw 1cil. C14000 Bastidores: ZAPC14000 henceforth3000001-- 1999-2001
Gilera Runner 50 SP DD 4,5 CV, 3,3 kw 1cil. C46100 Bastidores: ZAPC46100 henceforth0001001-ZAPC46100 henceforth0008189 2005-2006
Gilera Runner 50 SP DD 4,5 CV, 3,3 kw 1cil. C46100 Bastidores: ZAPC46100 henceforth0008190-ZAPC46100 henceforth0021981 2007
Gilera Runner 50 SP DD 4,5 CV, 3,3 kw 1cil. C46100 Bastidores: ZAPM46100 henceforth0001001-- 2008-2009
Gilera Runner 50 SP DD 5,2 CV, 3,8 kw 1cil. C36200 Bastidores: ZAPC3620 henceforth00004739-- 2002
Gilera Runner 50 SP DD 5,2 CV, 3,8 kw 1cil. C36400 Bastidores: ZAPC3640 henceforth00001009-- 2003-2004
Gilera Runner 50 SP DD Purejet 4,4 CV, 3,2 kw 1cil. C36100 Bastidores: ZAPC36100 henceforth0001001-- 2003-2005
Gilera Runner 50 SP DD Purejet 6 CV, 4,4 kw 1cil. C46200 Bastidores: ZAPC46200 henceforth0001001-- 2008-2009
Gilera Runner 50 SP DD Purejet 6 CV, 4,4 kw 1cil. C46200 Bastidores: ZAPC46200 henceforth0001001-ZAPC46200 henceforth0002010 2006
Gilera Runner 50 SP DD Purejet 6 CV, 4,4 kw 1cil. C46200 Bastidores: ZAPC46200 henceforth0002011-- 2007
Gilera Runner 50 SP DD Purejet Race Replica 4,4 CV, 3,2 kw 1cil. C36100 Bastidores: ZAPC36100 henceforth0001001-- 2003-2005
Piaggio NRG 50 LC DD mc2  Extreme 4,1 CV, 3 kw 1cil. C22000 Bastidores: ZAPC22000 henceforth0001001-- 2000-2001
Piaggio NRG 50 LC DD mc2 RST 4,4 CV, 3,2 kw 1cil. C18000 Bastidores: --- 1998-1999
Piaggio NRG 50 LC DD mc3  Power 4,5 CV, 3,3 kw 1cil. C45100 Bastidores: ZAPC45100 henceforth0001001-ZAPC45100 henceforth0014055 2005
Piaggio NRG 50 LC DD mc3  Power 4,5 CV, 3,3 kw 1cil. C45100 Bastidores: ZAPC45100 henceforth0014056-ZAPC45100 henceforth0022190 2006
Piaggio NRG 50 LC DD mc3  Power Purejet 6 CV, 4,4 kw 1cil. C45200 Bastidores: ZAPC45200 henceforth0001001-ZAPC45200 henceforth0004535 2005
Piaggio NRG 50 LC DD mc3  Power Purejet 6 CV, 4,4 kw 1cil. C45200 Bastidores: ZAPC45200 henceforth0004536-ZAPC45200 henceforth0005812 2006
Piaggio NRG 50 LC DD mc3  Power Purejet 6 CV, 4,4 kw 1cil. C45200 Bastidores: ZAPC45200 henceforth0005813-ZAPC45200 henceforth0007464 2007-2009
Piaggio NRG 50 LC DD mc3 45 km/h 4,5 CV, 3,3 kw 1cil. C32000 Bastidores: ZAPC32000 henceforth0001001-- 2001-2004
Piaggio NRG 50 LC DT 4,9 CV, 3,6 kw 1cil. SAL1T Bastidores: SAL1T henceforth0022104-SAL1T henceforth2999999 1995-1996
Piaggio NRG 50 LC DT mc2 RST 4,4 CV, 3,2 kw 1cil. C04000 Bastidores: ZAPC04000 henceforth0001001-- 1997-1998
Piaggio NTT 50 4,4 CV, 3,2 kw 1cil. SAL1T Bastidores: SAL1T henceforth3000002-- 1996
Piaggio Quartz 50 4,5 CV, 3,3 kw 1cil. NSP1T Bastidores: NSP1T henceforth0001001-- 1992-1996
Piaggio Zip 50 SP 2T LC 4 CV, 3 kw 1cil. C11000 Bastidores: ZAPC11000 henceforth0001001-- 1996-2000
Piaggio Zip 50 SP 2T LC 4,8 CV, 3,5 kw 1cil. C250004 Bastidores: ZAPC250000-4000001-ZAPC250000-6999999 2001-2003
