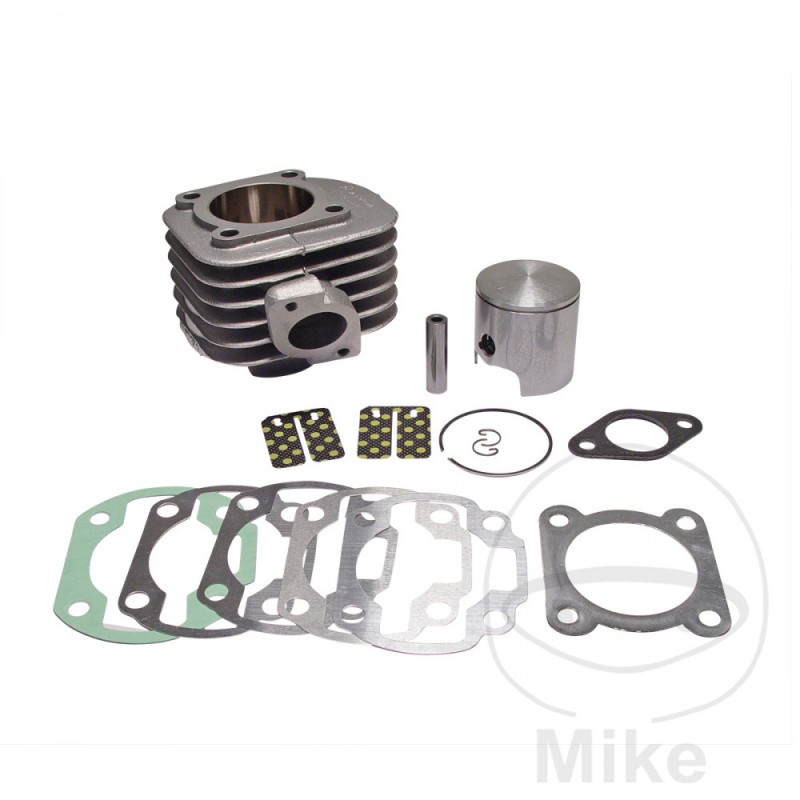

ATHENA motorcycle cylinder kit 70CC BIG BORE 756.10.20

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improving through cooperation with the best Italian universities, as well as constant requests for further development from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality checks, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- The cylinder liners consist of a special mixture of silicon carbide and nickel to ensure the best piston running performance and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- Cylinder surfaces are completely flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling Type: Air Cooled

Diameter: 47.6mm.

Stroke: 39.2mm

Displacement: 69.8cc

Compression: 13.3:1

Piston Pin Diameter: 10mm.

Number of overflow channels: 5

Piston crown shape: curved

Number of piston rings: 1

Upper Piston Ring Thickness: 1mm.

Piston Ring Type: Chrome

Membrane material: carbon

Outlet: 1 x oval

Stock: not included in the scope of delivery


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aiyumo Young 50 2T 2,2 CV, 1,6 kw 1cil. - Bastidores: --- 2009-2010
Aprilia Gulliver 50 AC 4,1 CV, 3 kw 1cil. LH000 Bastidores: --- 1995-1999
Aprilia Rally 50 AC 4,3 CV, 3,2 kw 1cil. MD000 Bastidores: --- 1995-1999
Aprilia Rally 50 AC KAT 4,3 CV, 3,2 kw 1cil. MDH00 Bastidores: --- 2000-2002
Aprilia Rally 50 AC KAT 4,3 CV, 3,2 kw 1cil. TM Bastidores: --- 2003-2004
Aprilia Scarabeo 50 2T DD 3,1 CV, 2,3 kw 1cil. PF010 Bastidores: --- 1998-1999
Aprilia Scarabeo 50 2T DD KAT 3,1 CV, 2,3 kw 1cil. PFG10 Bastidores: --- 2000-2002
Aprilia Scarabeo 50 2T DT 3,1 CV, 2,3 kw 1cil. LE Bastidores: --- 1994-1997
Aprilia Scarabeo 50 2T DT KAT 3,1 CV, 2,3 kw 1cil. PFG00 Bastidores: --- 2000-2002
Aprilia Scarabeo 50 2T TT 3,1 CV, 2,3 kw 1cil. HS Bastidores: --- 1993-1997
Aprilia Sonic 50 AC 3,2 CV, 2,4 kw 1cil. PB000 Bastidores: --- 1998-2002
Aprilia SR 50 AC cilindro horizontal 2,7 CV, 2 kw 1cil. MR/LF Bastidores: --- 1994-1996
Aprilia SR 50 AC Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1992-1993
Aprilia SR 50 AC Replica cilindro horizontal 2,7 CV, 2 kw 1cil. MR/LF Bastidores: --- 1994-1996
Aprilia SR 50 AC Replica Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1994
Aprilia SR 50 AC Urban Kid Cilindro vertical 2,7 CV, 2 kw 1cil. LB/GP Bastidores: --- 1992-1993
Aprilia SR 50 AC WWW 4,2 CV, 3,1 kw 1cil. LY000 Bastidores: --- 1997-1998
Aprilia SR 50 AC WWW KAT 4,2 CV, 3,1 kw 1cil. LYH00 Bastidores: --- 1999-2002
Atala/Rizzato Carosello 50 AC 4 CV, 3 kw 1cil. - Bastidores: --- 1999-2001
Benelli 491 50 ST AC 1,8 CV, 1,3 kw 1cil. ND0400P Bastidores: --- 2004-2006
Benelli 491 50 ST AC 2,7 CV, 2 kw 1cil. ND0400P Bastidores: --- 2003
Benelli 491 50 ST AC 4,1 CV, 3 kw 1cil. BA0102 Bastidores: --- 2001-2002
Benelli K2 50 AC 4,1 CV, 3 kw 1cil. BA0105 Bastidores: --- 2000-2001
Benelli K2 50 AC Namur 4,1 CV, 3 kw 1cil. BA0105 Bastidores: --- 2000-2001
Benelli Naked 50 1,8 CV, 1,3 kw 1cil. ND0300P Bastidores: --- 2004-2006
Benelli Naked 50 4,1 CV, 3 kw 1cil. ND0000P Bastidores: --- 2002
Benelli Naked 50 4,1 CV, 3 kw 1cil. ND0300P Bastidores: --- 2003
Benelli Pepe 50 4,9 CV, 3,6 kw 1cil. BA0301 Bastidores: --- 1999-2002
Benelli Pepe 50 LX 4,9 CV, 3,6 kw 1cil. SP0000P Bastidores: --- 2003-2004
Beta Ark 50 AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth70003331-ZD3BS4C4 henceforth70003931 2007
Beta Ark 50 AC 3,4 CV, 2,5 kw 1cil. ZD3BS4C4 Bastidores: ZD3BS4C4 henceforth80003992-ZD3BS4C4 henceforth80500000 2008
Beta Ark 50 AC 4 CV, 3 kw 1cil. BS4C20 Bastidores: --- 1999-2003
Beta Ark 50 AC 4 CV, 3 kw 1cil. BS4C40 Bastidores: --- 2004-2006
Beta Ark 50 LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth70009961-ZD3BS4C3 henceforth70012430 2007
Beta Ark 50 LC 2,9 CV, 2,1 kw 1cil. ZD3BS4C3 Bastidores: ZD3BS4C3 henceforth80012431-ZD3BS4C3 henceforth80013931 2008
Beta Ark 50 LC 4 CV, 3 kw 1cil. BS4C00 Bastidores: --- 1999-2003
Beta Ark 50 LC 4 CV, 3 kw 1cil. BS4C30 Bastidores: --- 2004-2006
Beta Quadra 50 3,5 CV, 2,6 kw 1cil. BS3 KTM GO 50 Bastidores: --- 1997-2001
Beta Tempo 50 3,5 CV, 2,6 kw 1cil. KTM GO 50 Bastidores: --- 1993-1994
Beta Tempo 50 3,5 CV, 2,6 kw 1cil. KTM GO 50 Bastidores: --- 1999-2001
Buffalo/Quelle Carosello 50 4,1 CV, 3 kw 1cil. - Bastidores: --- 2000-2001
CPI Hussar 50 1cil. RFTJR50AXYL Bastidores: RFTJR50AXYL000000-RFTJR50AXYL001700 2000
CPI Hussar 50 2,7 CV, 2 kw 1cil. - Bastidores: RFTJR45AX2L521000-RFTJR45AX2L525999 2002
CPI Hussar 50 4,6 CV, 3,4 kw 1cil. RFTJR50AX1L Bastidores: RFTJR50AX1L500000-RFTJR50AX1L510542 2001
CPI Hussar 50 45 3,2 CV, 2,3 kw 1cil. RFTJR45AX3L Bastidores: RFTJR45AX3L540000-RFTJR45AX3L599999 2003-2005
CPI Hussar 50 FL 3,2 CV, 2,3 kw 1cil. RFTJR45AX2L Bastidores: RFTJR45AX2L526641-RFTJR45AX2L599999 2002
CPI Popcorn 50 2,7 CV, 2 kw 1cil. RFTJP45AW2 Bastidores: RFTJP45AW2L524969-RFTJP45AW2L525586 2002
CPI Popcorn 50 4,6 CV, 3,4 kw 1cil. RFTJP50AW1 Bastidores: RFTJP50AW1L500000-RFTJP50AW1L599999 2001
CPI Popcorn 50 45 3,3 CV, 2,4 kw 1cil. RFTJP45AW3 Bastidores: RFTJP45AW3L526000-RFTJP45AW3L599999 2003-2005
CPI Popcorn 50 FL 3,2 CV, 2,3 kw 1cil. RFTJP45AW2 Bastidores: RFTJP45AW2L526000-RFTJP45AW2L599999 2002
Kreidler Florett 25 1,4 CV, 1 kw 1cil. FLORETT Bastidores: --- 1997-1998
Kreidler Florett 25 2,4 CV, 1,8 kw 1cil. FLORETT Bastidores: --- 1996
Kreidler Florett 25 RMC-B 2 CV, 1,5 kw 1cil. - Bastidores: --- 2003-2006
Kreidler Florett 25 RMC-C 2 CV, 1,5 kw 1cil. - Bastidores: --- 2004-2007
Kreidler Florett 25 XL 1,4 CV, 1 kw 1cil. SAF-1 Bastidores: --- 1999-2002
Kreidler Florett 25 XL 2 CV, 1,5 kw 1cil. - Bastidores: --- 2003-2005
Kreidler Florett 50 4,2 CV, 3,1 kw 1cil. FLORETT Bastidores: --- 1997-1998
Kreidler Florett 50 5,3 CV, 3,9 kw 1cil. FLORETT Bastidores: --- 1996
Kreidler Florett 50 RMC-B 4,2 CV, 3,1 kw 1cil. - Bastidores: --- 2003-2006
Kreidler Florett 50 RMC-C 4,2 CV, 3,1 kw 1cil. - Bastidores: --- 2004-2007
Kreidler Florett 50 XL 4,2 CV, 3,1 kw 1cil. - Bastidores: --- 2003-2005
Kreidler Florett 50 XL 4,2 CV, 3,1 kw 1cil. SAF Bastidores: --- 1999-2002
Kreidler Florett 50 XL Race 4,2 CV, 3,1 kw 1cil. - Bastidores: --- 2002-2003
KTM Ark 50 AC 4 CV, 3 kw 1cil. BS4C20 Bastidores: --- 1998-1999
KTM Go 50 3,5 CV, 2,6 kw 1cil. BS1 KTM GO 50 Bastidores: --- 1994-1999
KTM Kross 50 3,5 CV, 2,6 kw 1cil. BS3 KTM GO 50 Bastidores: --- 1997-1998
Malaguti Centro 50 Base 2,9 CV, 2 kw 1cil. ZJM 36 Bastidores: --- 1993-1996
Malaguti Centro 50 SL 2,9 CV, 2,1 kw 1cil. ZJM 36/T Bastidores: --- 1994-1997
Malaguti Centro 50 SL Kat 3,8 CV, 2,8 kw 1cil. ZJM 42/D 4900000 Bastidores: --- 1998-2000
Malaguti Ciak 50 2T 2,7 CV, 2 kw 1cil. 5200000 Bastidores: --- 2000-2004
Malaguti Ciak 50 2T Master 2,7 CV, 2 kw 1cil. 64000 Bastidores: --- 2007-2008
Malaguti F10 50 Jet Line 2,9 CV, 2,1 kw 1cil. 35/ ZJM 39/D Bastidores: --- 1994-1996
Malaguti F10 50 Jet Line 3,7 CV, 2,7 kw 1cil. 35/ ZJM 39/D Bastidores: --- 1997-1998
Malaguti F10 50 Jet Line 3,8 CV, 2,8 kw 1cil. 48 Bastidores: --- 1999-2001
Malaguti F10 50 Jet Line RST 3,5 CV, 2,6 kw 1cil. 48 Bastidores: --- 2002-2004
Malaguti F10 50 Jet Line RST 3,5 CV, 2,6 kw 1cil. 48/48000 Bastidores: 480000-48022001-- 2005
Malaguti F12 50 AC DD Phantom 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006
Malaguti F12 50 AC DD Phantom Fast Time 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2003
Malaguti F12 50 AC DD Phantom GP 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2007-2008
Malaguti F12 50 AC DD Phantom GP 3,5 CV, 2,6 kw 1cil. - Bastidores: --- 2006
Malaguti F12 50 AC DD Phantom Racing Life 3,4 CV, 2,5 kw 1cil. - Bastidores: --- 2004-2005
Malaguti F12 50 AC DT Phantom 3 CV, 2,2 kw 1cil. ZJM 40/D Bastidores: --- 1994-1998
Malaguti F12 50 AC DT Phantom 3,7 CV, 2,7 kw 1cil. 4600000 Bastidores: --- 1999-2000
Malaguti F12 50 AC DT Phantom RST 3,7 CV, 2,7 kw 1cil. 4600000 Bastidores: --- 2001-2002
Malaguti Yesterday 50 3,8 CV, 2,8 kw 1cil. 45 Bastidores: --- 1998-2001
MBK CS 50 AC Mach G 2,9 CV, 2,1 kw 1cil. - 3D44 Bastidores: --- 2006
MBK CS 50 AC Mach G 2,9 CV, 2,1 kw 1cil. - 5RWT Bastidores: --- 2005
MBK CS 50 AC Mach G 3,1 CV, 2,2 kw 1cil. SA222 5RW2 Bastidores: SA222000 henceforth00439-- 2002
MBK CS 50 AC Mach G 3,1 CV, 2,2 kw 1cil. SA222 5RW8 Bastidores: SA222000 henceforth00439-- 2003
MBK CS 50 AC Mach G 3,1 CV, 2,2 kw 1cil. SA225 5RWJ Bastidores: SA225000 henceforth00009-- 2004
MBK YA 50 R Forte 4 CV, 2,9 kw 1cil. 3UG 3UG2 Bastidores: 3UG-100101-- 1995-1997
MBK YE 50 Evolis 3,9 CV, 2,9 kw 1cil. 4FW 4FW2/3 Bastidores: 4FW henceforth00101-- 1993
MBK YE 50 Evolis 3,9 CV, 2,9 kw 1cil. 4FW 4FW5 Bastidores: 4FW henceforth00602-- 1994
MBK YE 50 Evolis 3,9 CV, 2,9 kw 1cil. 4FW 4FW7 Bastidores: 4FW-200101-- 1995-1998
MBK YH 50 Flipper 3,3 CV, 2,4 kw 1cil. - 5UB7 Bastidores: --- 2005-2006
MBK YH 50 Flipper 3,3 CV, 2,4 kw 1cil. - 5XS2 Bastidores: --- 2003
MBK YH 50 Flipper 3,3 CV, 2,4 kw 1cil. SA03F 5UB4 Bastidores: SA03F00 henceforth000102-- 2004
MBK YH 50 Flipper 3,4 CV, 2,5 kw 1cil. SA037 5FV2 Bastidores: SA037004 henceforth00101-- 1999
MBK YH 50 Flipper 3,4 CV, 2,5 kw 1cil. SA037 5FV4 Bastidores: SA037004 henceforth00101-- 2000
MBK YH 50 Flipper 4,5 CV, 3,3 kw 1cil. SA037 5FV6 Bastidores: SA037004 henceforth00101-- 2001
MBK YH 50 Flipper 4,5 CV, 3,3 kw 1cil. SA03D 5PF4 Bastidores: SA03D000 henceforth00201-- 2002
MBK YM 50 Fizz 4 CV, 3 kw 1cil. 4RC 4RC2 Bastidores: 4RC henceforth00101-- 1995-1997
MBK YN 50 Ovetto 2,9 CV, 2,1 kw 1cil. - 1P98 Bastidores: --- 2005
MBK YN 50 Ovetto 2,9 CV, 2,1 kw 1cil. - 1P9C Bastidores: --- 2006
MBK YN 50 Ovetto 3,1 CV, 2,2 kw 1cil. - 5RNR Bastidores: --- 2003
MBK YN 50 Ovetto 3,1 CV, 2,2 kw 1cil. SA212 1P92 Bastidores: SA212000 henceforth01210-- 2004
MBK YN 50 Ovetto 3,3 CV, 2,4 kw 1cil. SA152 5RN4 Bastidores: SA152000 henceforth03755-- 2002
MBK YN 50 Ovetto 4,1 CV, 3 kw 1cil. - 5BV4 Bastidores: --- 1999
MBK YN 50 Ovetto 4,1 CV, 3 kw 1cil. - 5BV6 Bastidores: --- 2000
MBK YN 50 Ovetto 4,1 CV, 3 kw 1cil. - 5BV8 Bastidores: --- 2001
MBK YN 50 Ovetto 4,1 CV, 3 kw 1cil. 5AD00 5BV2 Bastidores: 5AD00000-900001-- 1997-1998
PGO Big Max 50 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
PGO Big Max 50 4,1 CV, 3 kw 1cil. - Bastidores: --- 1999
PGO Big Max 50 4,4 CV, 3,2 kw 1cil. - Bastidores: --- 1995-1998
PGO Big Max 50 4,8 CV, 3,5 kw 1cil. - Bastidores: --- 2000-2001
PGO Big Max 50 Edition 2,7 CV, 2 kw 1cil. - Bastidores: --- 2004-2005
PGO Big Max 50 R 2,7 CV, 2 kw 1cil. - Bastidores: --- 2003
PGO Big Max 50 R Cromo 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002-2003
PGO PMX 50 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
PGO PMX 50 4,4 CV, 3,2 kw 1cil. - Bastidores: --- 1998
PGO PMX 50 4,8 CV, 3,5 kw 1cil. - Bastidores: --- 1999-2001
PGO PMX 50 Sport 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002-2006
PGO RodoShow 50 2,6 CV, 1,9 kw 1cil. - Bastidores: --- 2000-2005
PGO T-Rex 50 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002-2008
PGO T-Rex 50 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2009-2016
PGO T-Rex 50 4,8 CV, 3,5 kw 1cil. - Bastidores: --- 1999-2001
Yamaha CS 50 R AC Jog 2,2 CV, 1,61 kw 1cil. SA22V 3D43 Bastidores: SA22V henceforth10607-- 2006
Yamaha CS 50 R AC Jog 2,2 CV, 1,61 kw 1cil. SA22V 3D4C Bastidores: SA22V henceforth23541-- 2007
Yamaha CS 50 R AC Jog 2,2 CV, 1,61 kw 1cil. SA22V 3D4R Bastidores: SA22V henceforth30937-- 2008
Yamaha CS 50 R AC Jog 2,2 CV, 1,61 kw 1cil. SA22V 49D1 Bastidores: SA22V henceforth38226-- 2009
Yamaha CS 50 R AC Jog 2,8 CV, 2,09 kw 1cil. SA22V 5RWS Bastidores: SA22V henceforth00152-- 2005
Yamaha CS 50 R AC Jog 3 CV, 2,2 kw 1cil. SA221 5RW1 Bastidores: SA221 henceforth00322-- 2002
Yamaha CS 50 R AC Jog 3 CV, 2,2 kw 1cil. SA221 5RW7 Bastidores: SA221 henceforth08697-SA221 henceforth13221 2003
Yamaha CS 50 R AC Jog 3 CV, 2,2 kw 1cil. SA224 5RWH Bastidores: SA224 henceforth01057-- 2004
Yamaha YA 25 R Axis 1,4 CV, 1 kw 1cil. 5AK 5AK1 Bastidores: 5AK henceforth00103-5AK henceforth02103 1997-1998
Yamaha YA 50 R Axis 4 CV, 3 kw 1cil. 3UG 3UG1 Bastidores: 3UG henceforth00101-3UG henceforth05004 1996-1998
Yamaha YE 50 Zest 3,9 CV, 2,9 kw 1cil. 4FW 4FW1 Bastidores: 4FW-100001-4FW-102156 1993
Yamaha YE 50 Zest 3,9 CV, 2,9 kw 1cil. 4FW 4FW4 Bastidores: 4FW-101996-4FW-105736 1994
Yamaha YE 50 Zest 4,1 CV, 3 kw 1cil. 4FW 4FW6 Bastidores: 4FW-300101-- 1995-1999
Yamaha YH 50 Why 3,3 CV, 2,4 kw 1cil. SA03E 5UB3 Bastidores: SA03E henceforth00604-- 2004
Yamaha YH 50 Why 3,3 CV, 2,4 kw 1cil. SA03E 5UB6 Bastidores: SA03E henceforth02549-SA03E henceforth03847 2005
Yamaha YH 50 Why 3,3 CV, 2,4 kw 1cil. SA03E 5UB8 Bastidores: SA03E henceforth09044-- 2006-2013
Yamaha YH 50 Why 3,4 CV, 2,5 kw 1cil. SA03B 5PF3 Bastidores: SA03B henceforth01999-SA03B henceforth03424 2002
Yamaha YH 50 Why 3,4 CV, 2,5 kw 1cil. SA03B 5XS1 Bastidores: SA03B henceforth10002-SA03B henceforth10301 2003
Yamaha YH 50 Why 4,5 CV, 3,28 kw 1cil. SA036 5FV1 Bastidores: SA036 henceforth00101-- 1999
Yamaha YH 50 Why 4,5 CV, 3,28 kw 1cil. SA036 5FV3 Bastidores: SA036 henceforth00101-- 2000
Yamaha YH 50 Why 4,5 CV, 3,28 kw 1cil. SA036 5FV5 Bastidores: SA036 henceforth01801-SA036 henceforth02250 2001
Yamaha YM 50 Breeze 4,1 CV, 3 kw 1cil. 4RC 4RC1 Bastidores: 4RC-100101-4RC-103200 1995-1998
Yamaha YN 50 Neos 2,9 CV, 2,1 kw 1cil. SA211 1P97 Bastidores: SA211 henceforth16880-- 2005
Yamaha YN 50 Neos 2,9 CV, 2,1 kw 1cil. SA211 1P9B Bastidores: SA211 henceforth27842-- 2006-2007
Yamaha YN 50 Neos 2,9 CV, 2,1 kw 1cil. SA341 5C21 Bastidores: SA341 henceforth00015-- 2008
Yamaha YN 50 Neos 2,9 CV, 2,1 kw 1cil. SA341 5C27 Bastidores: SA341 henceforth22339-- 2009
Yamaha YN 50 Neos 3,3 CV, 2,4 kw 1cil. SA151 5RN3 Bastidores: SA151 henceforth02608-SA151 henceforth17121 2002
Yamaha YN 50 Neos 3,3 CV, 2,4 kw 1cil. SA151 5RNP Bastidores: SA151 henceforth17247-SA151 henceforth27096 2003
Yamaha YN 50 Neos 3,3 CV, 2,4 kw 1cil. SA211 1P91 Bastidores: SA211 henceforth00714-SA211 henceforth15513 2004
Yamaha YN 50 Neos 3,9 CV, 2,9 kw 1cil. 5AD 5BV5 Bastidores: 5AD henceforth11804-5AD henceforth13953 2000
Yamaha YN 50 Neos 3,9 CV, 2,9 kw 1cil. 5AD 5BV7 Bastidores: 5AD henceforth13954-5AD henceforth17903 2001
Yamaha YN 50 Neos 4,1 CV, 3 kw 1cil. 5AD 5BV1 Bastidores: 5AD henceforth05503-- 1997-1998
Yamaha YN 50 Neos 4,1 CV, 3 kw 1cil. 5AD 5BV3 Bastidores: 5AD henceforth08704-- 1999
