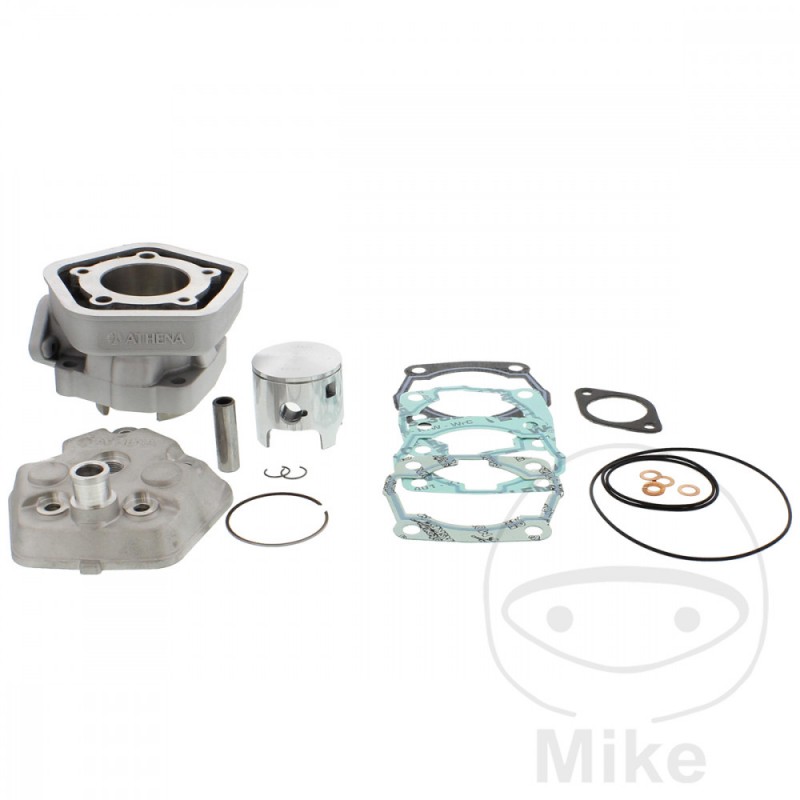

ATHENA motorcycle cylinder kit 80CCM BIG BORE 756.09.59

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy.

Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Cylinder material: Aluminum

DIAMETER: 50MM

Stroke: 40.8mm

Displacement: 80cc

Compression: 15:1

stock: included

Torque: 12 Nm / 10,000 rpm

Maximum power on the crankshaft: 14.2 KW / 19.3 HP


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM SX 65 15,5 CV, 11,4 kw 1cil. - Bastidores: --- 2002
KTM SX 65 16 CV, 12 kw 1cil. - Bastidores: --- 2001-2001
KTM SX 65 16 CV, 12 kw 1cil. - Bastidores: --- 2006-2008
KTM SX 65 17 CV, 12,5 kw 1cil. - Bastidores: --- 2003-2005
