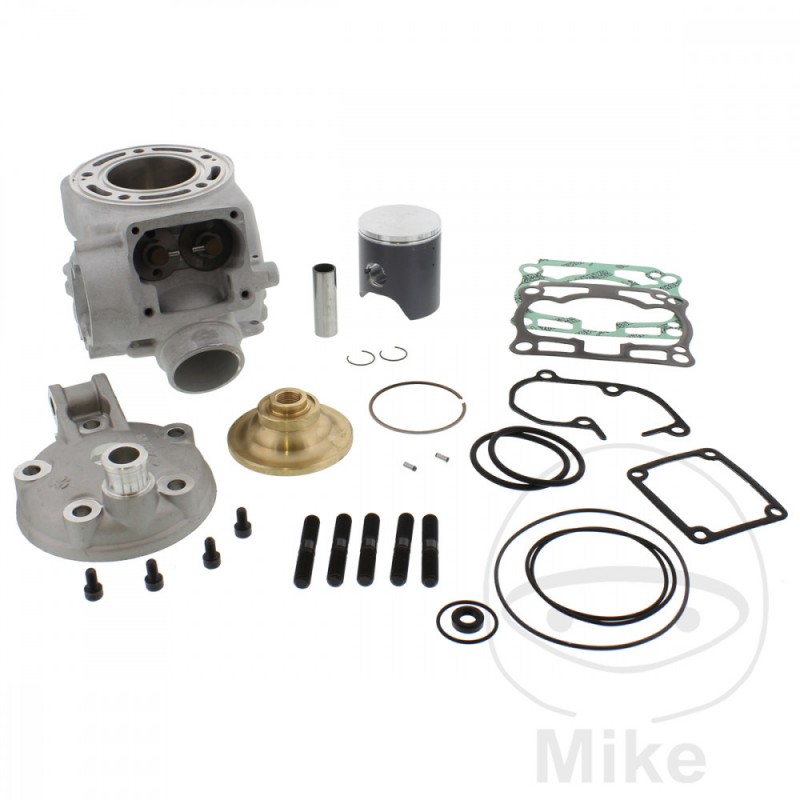

ATHENA Standard cylinder kit 124CCM 756.09.48

Athena cylinder set

For over 10 years, Athena has been investing in the best and most advanced cylinder manufacturing technologies and components used not only by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy.

After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

Technical information:

Cylinder material: Aluminum

Diameter: 54mm.

Stroke: 54.5mm

Displacement: 124.82cc

Compaction: 14.8: 1

stock: not included

Torque: 22.7 Nm / 10,500rpm

Maximum power at the crankshaft: 35.5 HP / 11,000 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 125 M 40,5 CV, 29,8 kw 1cil. KX125MMA 1 Bastidores: KX125MMA henceforth00001-KX125MMA henceforth10000 2003
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 2 Bastidores: KX125MMA henceforth10001-KX125MMA henceforth16000 2004
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 3 Bastidores: KX125MMA henceforth16001-KX125MMA henceforth21000 2005
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 6F Bastidores: KX125MMA henceforth21001-KX125MMA henceforth25000 2006
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 7F Bastidores: KX125MMA henceforth25001-KX125MMA henceforth27000 2007
Kawasaki KX 125 M 41 CV, 30,2 kw 1cil. KX125MMA 8F Bastidores: KX125MMA henceforth27001-KX125MMA-999999 2008
