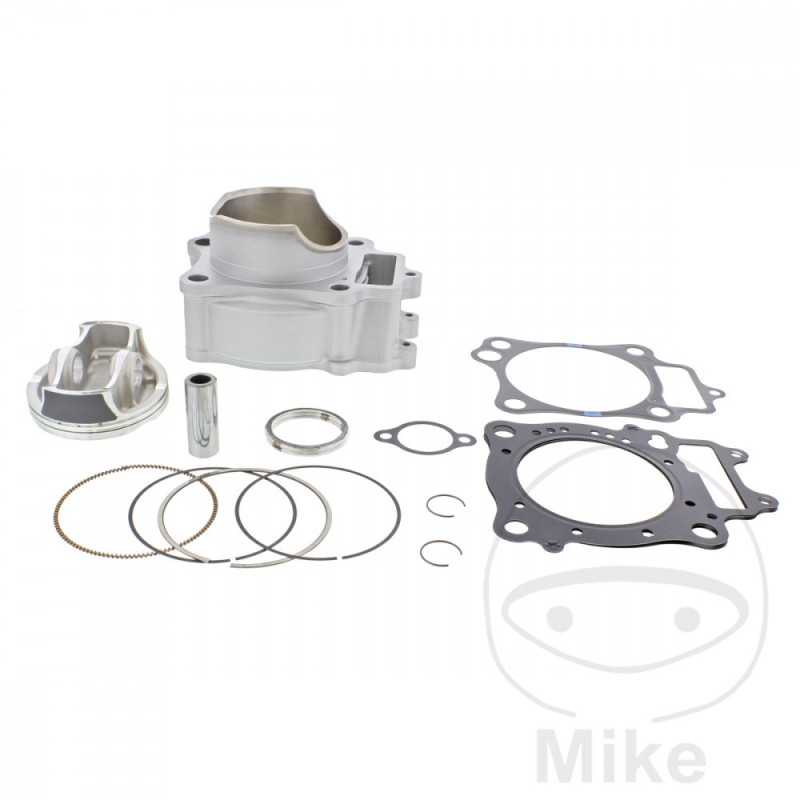

ATHENA Standard cylinder kit 249CC 756.09.39

Athena cylinder kit

For more than 10 years Athena invested in the best and most modern technologies for the production of cylinders and their components, which are not only used by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is the last but not least continuous improvement through the collaboration of the best Italian universities and further permanent development demands the best engine tuner.

Due to a flexible production department, Athena can respond effectively to different situations (original equipment manufacturers production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made taking into account the latest technologies and coated with a nickel-silicon alloy. After all the cylinders have passed strict quality control to meet the highest standards in terms of reliability, durability and performance.

Technical details:

Cylinder material: Aluminum

Diameter: 76.8mm

Stroke: 53.8mm

Displacement: 249.2cc

Compression Ratio: 13.5:1

Stock: Not included

Maximum power at the crank: 25.65 kW / 34.4 HP / 10,990 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A E Bastidores: JH2 ME10A-EK100001-JH2 ME10A-EK199999 2014
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A F Bastidores: JH2 ME10A-FK200001-JH2 ME10A-FK299999 2015
Honda CRF 250 R 40 CV, 29,4 kw 1cil. ME10A H Bastidores: JH2 ME10A-HK400001-- 2017
