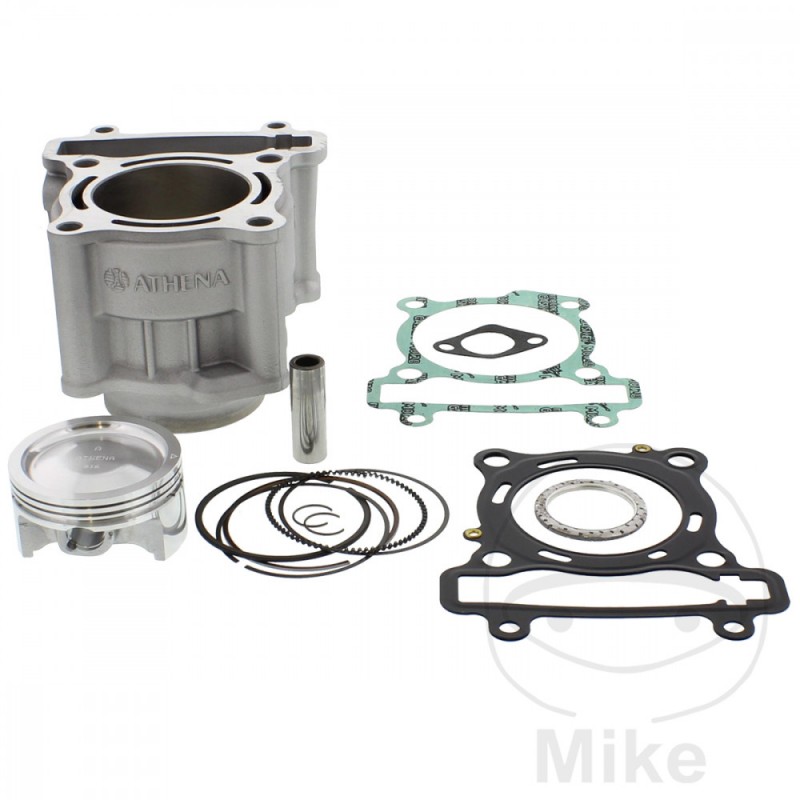

ATHENA motorcycle cylinder kit 182CC BIG BORE 756.09.34

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality checks, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Cylinder material: Aluminum

Diameter: 63mm.

Stroke: 58.6mm

Displacement: 182.6cc

Compression: 11.4:1

Piston Bolt: 14mm.

Stock: not included in the scope of delivery

Maximum power on the crankshaft: 12.75 KW / 17.1 HP / 8800 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HM-Moto CRE-F 125 X 4T Baja 14,7 CV, 10,8 kw 1cil. - Bastidores: --- 2014
HM-Moto CRE-F 125 X 4T Baja 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC0150001-ZENF1250EC0159999 2010-2011
HM-Moto CRE-F 125 X 4T Baja 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC2250001-- 2012-2013
HM-Moto CRE-F 125 X 4T Enduro 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC8900001-ZENF1250EC8999999 2008
HM-Moto CRE-F 125 X 4T Enduro 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC9900001-- 2009
HM-Moto CRE-F 125 X 4T Six Competition 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC0100001-ZENF1250EC0119999 2010-2011
HM-Moto CRE-F 125 X RR 4T Baja 14,7 CV, 10,8 kw 1cil. - Bastidores: --- 2014
HM-Moto CRE-F 125 X RR 4T Baja 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC0120001-ZENF1250EC0129999 2010-2011
HM-Moto CRE-F 125 X RR 4T Baja 14,7 CV, 10,8 kw 1cil. F1250EC Bastidores: ZENF1250EC2220001-ZENF1250EC2229999 2012-2013
HM-Moto CRM-F 125 X 4T Derapage 14,7 CV, 10,8 kw 1cil. - Bastidores: --- 2014
HM-Moto CRM-F 125 X 4T Derapage 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC0150001-ZENF1250MC0159999 2010-2011
HM-Moto CRM-F 125 X 4T Derapage 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC2250001-ZENF1250MC0229999 2012-2013
HM-Moto CRM-F 125 X 4T Derapage Competition 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC0100001-ZENF1250MC0119999 2010-2011
HM-Moto CRM-F 125 X 4T Supermoto 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC8900001-ZENF1250MC8999999 2008
HM-Moto CRM-F 125 X 4T Supermoto 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC9900001-- 2009
HM-Moto CRM-F 125 X RR 4T Derapage 14,7 CV, 10,8 kw 1cil. - Bastidores: --- 2014
HM-Moto CRM-F 125 X RR 4T Derapage 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC0120001-ZENF1250MC0129999 2010-2011
HM-Moto CRM-F 125 X RR 4T Derapage 14,7 CV, 10,8 kw 1cil. F1250MC Bastidores: ZENF1250MC2220001-ZENF1250MC2229999 2012-2013
HM-Moto CSF 125 City 14,7 CV, 10,8 kw 1cil. - Bastidores: --- 2014
HM-Moto CSF 125 City 14,7 CV, 10,8 kw 1cil. TRL120TB Bastidores: ZENTRL120TB200001-- 2011-2013
HM-Moto CSF 125 Locusta 14,7 CV, 10,8 kw 1cil. - Bastidores: --- 2014
HM-Moto CSF 125 Locusta 14,7 CV, 10,8 kw 1cil. TRL120UB Bastidores: ZENTRL120UB220001-- 2011-2013
Husqvarna SMR 125 4T 15 CV, 11 kw 1cil. A500AB Bastidores: ZHK A500AB-BV000785-ZHK A500AB-BV000864 2011
Husqvarna SMR 125 4T 15 CV, 11 kw 1cil. A500AB Bastidores: ZKH A500AB-DV000001-- 2013
Husqvarna SMR 125 4T 15 CV, 11 kw 1cil. A500AB Bastidores: ZKHA500AB-CV000001-- 2012
Husqvarna SMS4 125 4T 15 CV, 11 kw 1cil. A500AB Bastidores: ZKH A500AB-BV000000-ZKH A500AB-BV000700 2011
Husqvarna TE 125 4T 15 CV, 11 kw 1cil. A500AA Bastidores: ZHK A500AA-BV000470-ZHK A500AA-BV000669 2011
Husqvarna TE 125 4T 15 CV, 11 kw 1cil. A500AA Bastidores: ZKH A500AA-CV000001-- 2012
Husqvarna TE 125 4T 15 CV, 11 kw 1cil. A500AA Bastidores: ZKH A500AA-DV000001-- 2013
Husqvarna TE 125 4T SMS4 15 CV, 11 kw 1cil. A500AA Bastidores: ZKH A500AA-BV000000-ZKH A500AA-BV000469 2011
Rieju Marathon 125 LC Pro 15 CV, 11 kw 1cil. - Bastidores: --- 2009-2018
Rieju Marathon 125 LC Pro Supermoto 15 CV, 11 kw 1cil. - Bastidores: --- 2009-2018
Yamaha WR 125 R 15 CV, 11 kw 1cil. DE071 22B1 Bastidores: DE071 henceforth01912-- 2009
Yamaha WR 125 R 15 CV, 11 kw 1cil. DE071 22B3 Bastidores: DE071 henceforth00029-- 2010
Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22B2 Bastidores: DE072 henceforth00801-- 2009
Yamaha WR 125 X 15 CV, 11 kw 1cil. DE072 22B4 Bastidores: DE072 henceforth00026-- 2010
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D71 Bastidores: RE061 henceforth00159-- 2008
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D72 Bastidores: RE061 henceforth18938-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D74 Bastidores: RE061 henceforth24211-- 2010
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D75 Bastidores: RE061 henceforth23027-- 2009
Yamaha YZF-R 125 15 CV, 11 kw 1cil. RE061 5D77 Bastidores: RE061 henceforth40001-- 2011
