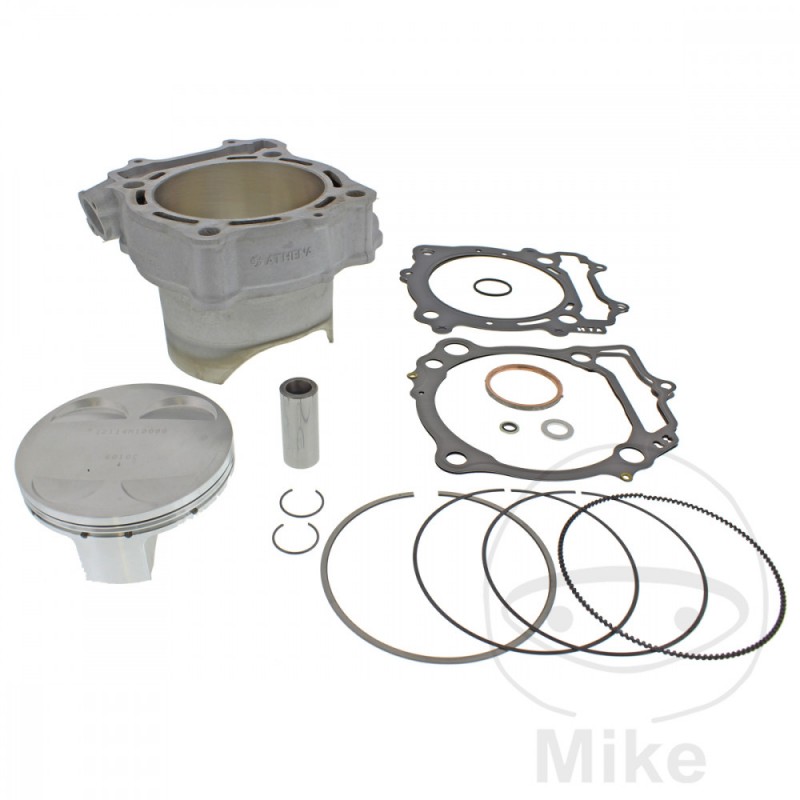

ATHENA motorcycle cylinder kit 490CC BIG BORE 756.08.59

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities and constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy. Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

diameter: 100 mm

Stroke: 62.1mm

Displacement: 487.7cc

Compression: 12.1:1

Piston pin diameter: 19 mm

Stock: not included in delivery

Maximum power at the crankshaft: 51.7 hp / 9400 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L3 Bastidores: RL42A henceforth00509746-- 2013
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L4 Bastidores: RL42A henceforth00512422-- 2014
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L5 Bastidores: RL42A henceforth00512452-RL42A henceforth00519999 2015
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L6 Bastidores: RL42A henceforthG0500001-RL42A henceforthG0599999 2016
