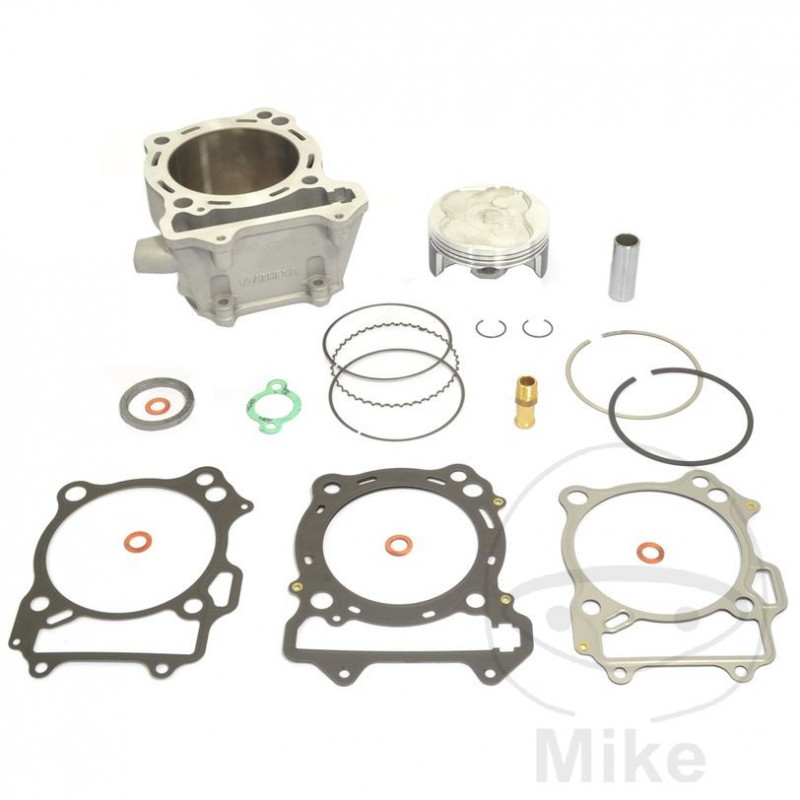

ATHENA motorcycle cylinder kit 435CC BIG BORE 756.04.36

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the manufacture of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality checks, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 94mm.

Stroke: 62.6mm

Displacement: 434.4cc

Compression: 12.3:1

Number of piston rings: 3

Upper Piston Ring Thickness: 1mm.

Second Piston Ring Thickness: 1.2mm

Oil Ring Thickness: 2.5mm

Stock: not included in the scope of delivery

Maximum performance at the crankshaft: 45.3 HP / 9,000 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Arctic Cat/Textron DVX 400 2WD 1cil. - Bastidores: --- 2004-2008
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 32 1 Bastidores: AK47B 32-100001-AK47B 32-999999 2003
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 42 2 Bastidores: AK47B 42-100001-AK47B 42-999999 2004
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 52 3 Bastidores: AK47B 52-100001-AK47B 52-999999 2005
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 62 6F Bastidores: AK47B 62-100001-AK47B 62-999999 2006
Suzuki DR-Z 400 49 CV, 36 kw 1cil. BE1111 K2 Bastidores: BE1111 henceforth0101663-BE1111 henceforth0101675 2002
Suzuki DR-Z 400 49 CV, 36 kw 1cil. BE1111 K3 Bastidores: BE1111 henceforth0101676-- 2003-2004
Suzuki DR-Z 400 49/14 CV, 36/10 kw 1cil. BE1111 K1 Bastidores: BE1111 henceforth0101391-BE1111 henceforth0101662 2001
Suzuki DR-Z 400 49/14 CV, 36/10 kw 1cil. BE1111 Y Bastidores: BE1111 henceforth0100001-BE1111 henceforth0101390 2000
Suzuki DR-Z 400 E 33 CV, 24 kw 1cil. BF1111 K1 Bastidores: BF1111 henceforth0101327-BF1111 henceforth0102359 2001
Suzuki DR-Z 400 E 33 CV, 24 kw 1cil. BF1111 Y Bastidores: BF1111 henceforth0100001-BF1111 henceforth0101326 2000
Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K2 Bastidores: BF1111 henceforth0102360-BF1111 henceforth0103442 2002
Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K3 Bastidores: BF1111 henceforth0103443-- 2003-2004
Suzuki DR-Z 400 E 49 CV, 36 kw 1cil. BF1111 K5 Bastidores: BF1111 henceforth0105561-BF1111 henceforth0106777 2005
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K1 Bastidores: BC1112 henceforth0103867-BC1112 henceforth0105028 2001
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K2 Bastidores: BC1112 henceforth0105029-BC1112 henceforth0105820 2002
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K3 Bastidores: BC1112 henceforth0105821-BC1112 henceforth0107185 2003
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K4 Bastidores: BC1112 henceforth0107186-BC1112 henceforth0108192 2004
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K5 Bastidores: BC1112 henceforth0108193-BC1112 henceforth0109110 2005
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 K6 Bastidores: BC1112 henceforth0109111-BC1112 henceforth0110006 2006
Suzuki DR-Z 400 S 39 CV, 29 kw 1cil. WVBC1112 Y Bastidores: BC1112 henceforth0100001-BC1112 henceforth0103866 2000
Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K5 Bastidores: B81112 henceforth0100001-B81112 henceforth0103148 2005
Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K6 Bastidores: B81112 henceforth0103149-B81112 henceforth0106275 2006
Suzuki DR-Z 400 SM 40 CV, 29,4 kw 1cil. WVB81112 K7 Bastidores: B81112 henceforth0106276-B81112 henceforth0110837 2007
Suzuki DR-Z 400 SMU 31 CV, 23 kw 1cil. WVB81110 K7 Bastidores: B81110 henceforth0100242-- 2007
Suzuki DR-Z 400 SMU 34 CV, 25 kw 1cil. WVB81110 K5 Bastidores: B81110 henceforth0100001-B81110 henceforth0100087 2005
Suzuki DR-Z 400 SMU 34 CV, 25 kw 1cil. WVB81110 K6 Bastidores: B81110 henceforth0100088-B81110 henceforth0100241 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K3 Bastidores: AK47A-32100001-- 2003
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA K9 Bastidores: AK4AA-92100001-- 2009
