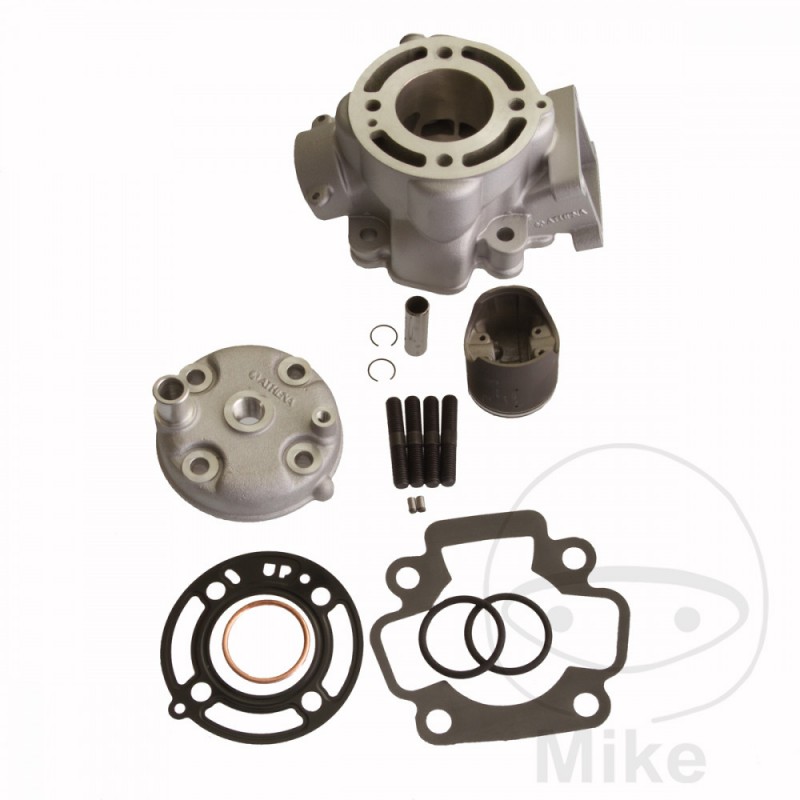

ATHENA Standard cylinder kit 65CCM 756.03.94

Athena cylinder set

For over 10 years, Athena has been investing in the best and most advanced cylinder manufacturing technologies and components used not only by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

Technical information:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 44.5mm.

Stroke: 41.6mm

Displacement: 65cc

Compaction: 14.2: 1

Piston Pin Diameter: 12mm.

Number of overflow channels: 5

Piston crown shape: arched

Number of piston rings: 1

Upper Piston Ring Thickness: 1mm.

Piston Ring Type: Chrome

Membrane material: not included

Outlet: divided in two

Stock: not included in delivery

Peak Power at Crankshaft: 17.7 HP / 12,200 RPM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 65 A 1cil. KX065AAA BF Bastidores: KX065AAA henceforth72001-KX065AAA henceforth75000 2011
Kawasaki KX 65 A 1cil. KX065AAA CF Bastidores: KX065AAA henceforth75001-KX065AAA henceforth78000 2012
Kawasaki KX 65 A 1cil. KX065AAA DF Bastidores: KX065AAA henceforth78001-KX065AAA henceforth81000 2013
Kawasaki KX 65 A 1cil. KX065AAA EF Bastidores: KX065AAA henceforth81001-- 2014
Kawasaki KX 65 A 1cil. KX065AAA FF Bastidores: KX065AAA henceforth83001-KX065AAA henceforth85000 2015
Kawasaki KX 65 A 1cil. KX065AAA GF Bastidores: KX065AAA henceforth85001-KX065AAA henceforth88000 2016
Kawasaki KX 65 A 1cil. KX065AAA HF Bastidores: KX065AAA henceforth88001-KX065AAA henceforth92000 2017
Kawasaki KX 65 A 1cil. KX065AAA JF Bastidores: KX065AAA henceforth92001-KX065AAA henceforth95000 2018
Kawasaki KX 65 A 1cil. KX065AAA KF Bastidores: KX065AAA henceforth95001-KX065AAA henceforth97999 2019
Kawasaki KX 65 A 1cil. KX065AAA LF Bastidores: KX065AAA henceforth98001-- 2020
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 6F Bastidores: KX065AAA henceforth48001-KX065AAA henceforth54000 2006
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 7F Bastidores: KX065AAA henceforth54001-- 2007
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 8F Bastidores: KX065AAA henceforth59001-KX065AAA henceforth65000 2008
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 9F Bastidores: KX065AAA henceforth65001-KX065AAA henceforth70000 2009
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA AF Bastidores: KX065AAA henceforth70001-KX065AAA henceforth72000 2010
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 3 Bastidores: KX065AAA henceforth16001-KX065AAA henceforth27000 2002
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 4 Bastidores: KX065AAA henceforth27001-KX065AAA henceforth36000 2003
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 5 Bastidores: KX065AAA henceforth36001-- 2004
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 6 Bastidores: KX065AAA henceforth42001-KX065AAA henceforth48000 2005
