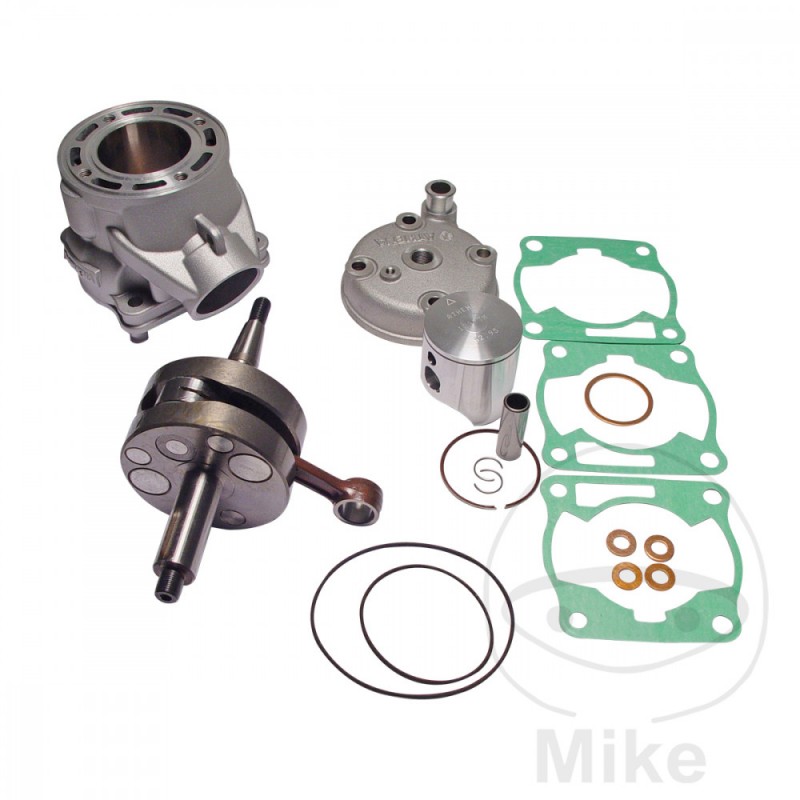

ATHENA motorcycle cylinder kit 112CCM BIG BORE 756.00.56

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities and constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy. Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- Cylinder liners are made from a special blend of silicon carbide and nickel to ensure the best possible piston life and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- The surfaces of the cylinders are perfectly flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 53mm

Stroke: 51mm

Displacement: 112cc

Compression: 13.8:1

Piston pin diameter: 14 mm

Number of transfer channels: 5

Piston crown shape: flat

Number of piston rings: 1

Upper piston ring thickness: 1mm

Piston Ring Type: Chrome

Membrane material: not included in delivery

Outlet: oval + 2 impellers

Stock: not included in delivery

Maximum power at the crankshaft: 23.1 HP / 10840 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZ 85 LW 19/16 pulgadas 1cil. CB10C 1SP4 Bastidores: CB10C henceforth10467-- 2013
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB05C 5SH1 Bastidores: CB05C henceforth00101-- 2002
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB05C 5SH4 Bastidores: CB05C henceforth02009-- 2003
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB08C 5SH7 Bastidores: CB08C henceforth00101-- 2004
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 1SP1 Bastidores: CB10C henceforth09881-- 2012
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHA Bastidores: CB10C henceforth00101-- 2005
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHD Bastidores: CB10C henceforth02142-- 2006
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHG Bastidores: CB10C henceforth03753-- 2007
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHK Bastidores: CB10C henceforth05494-- 2008
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHN Bastidores: CB10C henceforth07213-- 2009
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHS Bastidores: CB10C henceforth08499-- 2010
Yamaha YZ 85 LW 19/16 pulgadas 29 CV, 21 kw 1cil. CB10C 5SHV Bastidores: CB10C henceforth09041-- 2011
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB04C 5PA1 Bastidores: CB04C henceforth00101-- 2002
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB04C 5PA4 Bastidores: CB04C henceforth07258-- 2003
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB07C 5PA7 Bastidores: CB07C henceforth00101-- 2004
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 1SN1 Bastidores: CB09C henceforth17856-- 2012-2013
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAA Bastidores: CB09C henceforth00101-- 2005
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAD Bastidores: CB09C henceforth04809-- 2006
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAG Bastidores: CB09C henceforth08742-- 2007
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAK Bastidores: CB09C henceforth11690-- 2008
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAN Bastidores: CB09C henceforth14326-- 2009
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAS Bastidores: CB09C henceforth16064-- 2010
Yamaha YZ 85 SW 17/14 pulgadas 29 CV, 21 kw 1cil. CB09C 5PAV Bastidores: CB09C henceforth16766-- 2011
