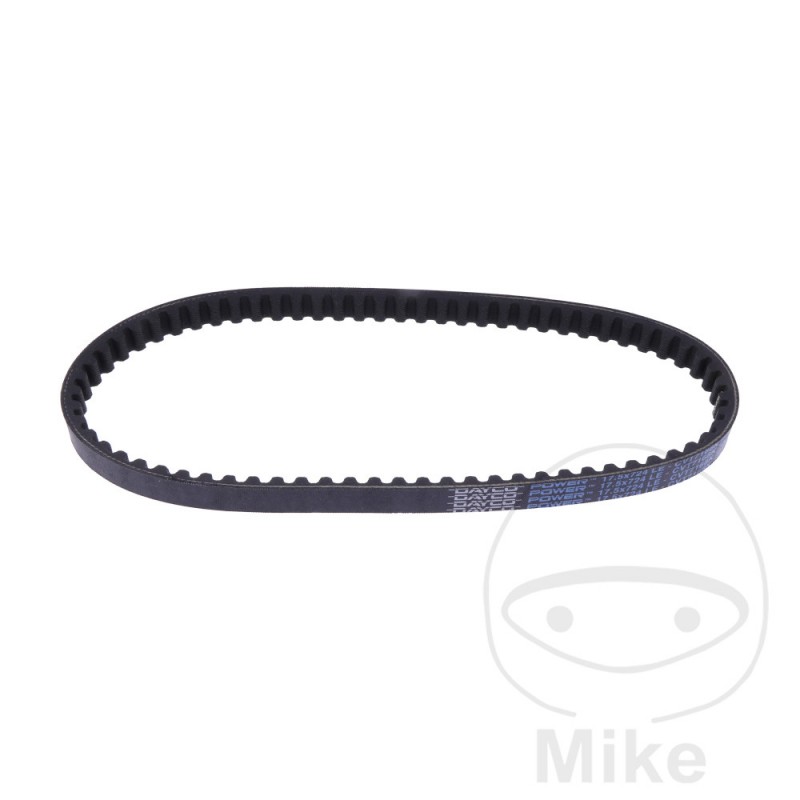

DAYCO Transmission belt for motorcycle 17.5 X 724 POWER PLUS 755.10.70

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Dayco Power Plus belts are characterized by their aramid fiber core, which provides the belt with optimally increased temperature resistance and therefore allows less elongation, especially at start-up, as well as double wear resistance. compared to polyester webbing.

wear resistance compared to polyester products (standard line). The interlock on the back of the tape also ensures maximum flexibility, increased surface area and better cooling of the tape during use.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Cagiva City 50 Lucky Explorer 4,1 CV, 3 kw 1cil. 4P Bastidores: --- 1992-1997
Piaggio Quartz 50 4,5 CV, 3,3 kw 1cil. NSP1T Bastidores: NSP1T henceforth0001001-- 1992-1996
Piaggio Sfera 50 2 DT catalizador 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 henceforth00001001-- 1997
Piaggio Sfera 50 2 DT RST 3,8 CV, 2,8 kw 1cil. C01000 Bastidores: ZAPC0100 henceforth00001001-- 1997
Piaggio Zip 25 2T DT Base Pigmentato RST 1,4 CV, 1 kw 1cil. C06000 Bastidores: ZAPC06000 henceforth0001001-- 2000-2001
Piaggio Zip 25 2T DT Base RST 1,4 CV, 1 kw 1cil. C06000 Bastidores: ZAPC06000 henceforth0001001-- 1999
Piaggio Zip 25 2T TT Base RST 1,4 CV, 1 kw 1cil. C06000 Bastidores: ZAPC06000 henceforth0001001-- 1997-1999
Piaggio Zip 50 2T DT Base Pigmentato RST 4 CV, 2,9 kw 1cil. C06000 Bastidores: ZAPC06000 henceforth0001001-- 2000
Piaggio Zip 50 2T DT Base RST 4 CV, 2,9 kw 1cil. C06000 Bastidores: ZAPC06000 henceforth0001001-- 1999
Piaggio Zip 50 2T DT Fast Rider RST 4,1 CV, 3 kw 1cil. C07000 Bastidores: ZAPC07000 henceforth0001001-- 1997
Piaggio Zip 50 2T TT Base RST 4 CV, 2,9 kw 1cil. C06000 Bastidores: ZAPC06000 henceforth0001001-- 1997-1999
Piaggio Zip 50 SP 2T LC 4 CV, 3 kw 1cil. C11000 Bastidores: ZAPC11000 henceforth0001001-- 1996-2000
Piaggio Zip+Zip 50 Bimodale 3,8 CV, 2,8 kw 1cil. BMZ1T Bastidores: BMZ1T henceforth001001-- 1995-1998
Vespa ET2 50 2T 3,6 CV, 2,7 kw 1cil. C16000 Bastidores: ZAPC16000 henceforth0001001-- 1997-1998
