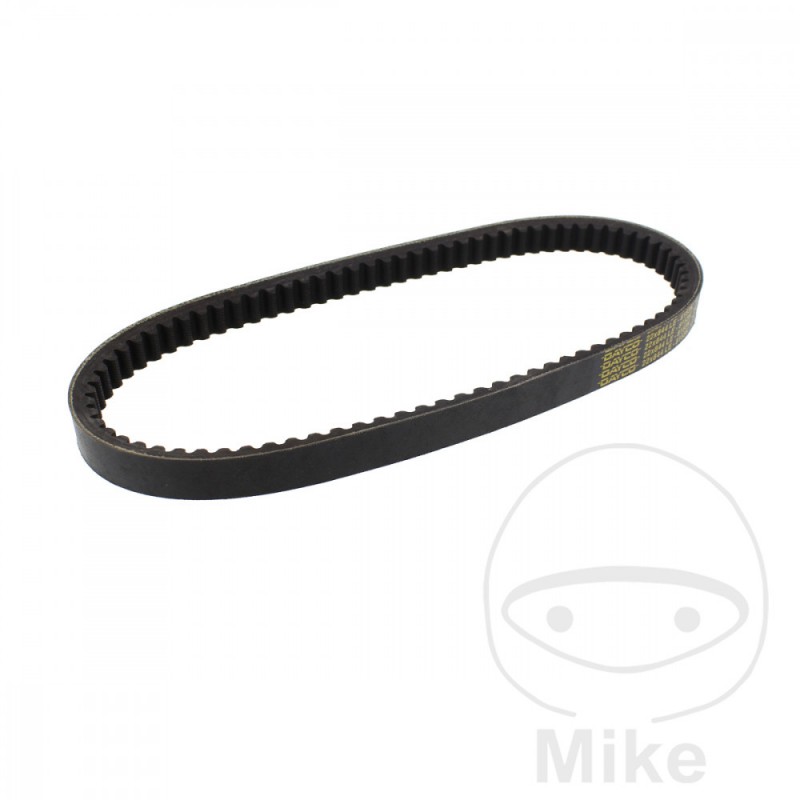

DAYCO Transmission belt for motorcycle 22.0 X 844 POWER PLUS 755.01.28

Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

Dayco Power Plus belts are characterized by having an aramid fiber core, which gives the belt optimal resistance to temperature and therefore allows less elongation, especially at start-up, as well as twice the wear resistance. superior to that of polyester products (Standard line).

wear resistance compared to polyester products (standard line). The interlock on the back of the tape also ensures maximum flexibility, increased surface area and better cooling of the tape during use.

Especially on Piaggioscooters, special attention should be paid to the oil pump belt after a broken V-belt.

Flying parts from a broken V-belt in the engine crankcase may have completely damaged or destroyed the oil pump belt.

As it is located behind the variomatic and not immediately visible, it is always worth taking a look behind the variomatic to check the condition of the oil pump belt and replace it if necessary. A damaged or destroyed oil pump belt causes piston seizure.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki UH 125 A Burgman ABS 11 CV, 8 kw 1cil. C81324 L7 Bastidores: C81324-H0100001-C81324-H0199999 2017
Suzuki UH 125 A Burgman ABS 11 CV, 8 kw 1cil. C81324 L8 Bastidores: C81324-J0100001-C81324-K0100000 2018
Suzuki UH 125 A Burgman ABS 11 CV, 8 kw 1cil. C81324 L9 Bastidores: C81324-K0100001-C81324-K9999999 2019-2022
Suzuki UH 125 A Burgman ABS 12,4 CV, 9,1 kw 1cil. C81121 L4 Bastidores: C81121 henceforth0100001-- 2014
Suzuki UH 125 A Burgman ABS 12,4 CV, 9,1 kw 1cil. C81121 L5 Bastidores: C81121 henceforth0402697-C81121 henceforth0499999 2015
Suzuki UH 125 A Burgman ABS 12,4 CV, 9,1 kw 1cil. C81121 L6 Bastidores: C81121-G0100001-- 2016
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. C81111 L4 Bastidores: C81111 henceforth0100001-- 2014
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. C81111 L5 Bastidores: C81111 henceforth0305499-C81111 henceforth0399999 2015
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. C81111 L6 Bastidores: C81111-G0100001-- 2016
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 K7 Bastidores: CC1111 henceforth0100001-CC1111 henceforth0118285 2007
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 K8 Bastidores: CC1111 henceforth0118286-CC1111 henceforth0120025 2008
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 K9 Bastidores: CC1111 henceforth0120026-CC1111 henceforth0121285 2009
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 L0 Bastidores: CC1111 henceforth0121286-CC1111 henceforth0122065 2010
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 L1 Bastidores: CC1111 henceforth0122066-CC1111 henceforth0126555 2011-2012
Suzuki UH 125 Burgman 12,4 CV, 9,1 kw 1cil. CC1111 L3 Bastidores: CC1111 henceforth0126556-- 2013
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 K8 Bastidores: CC1121 henceforth0100001-CC1121 henceforth0105948 2008
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 K9 Bastidores: CC1121 henceforth0105949-CC1121 henceforth0114488 2009
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 L0 Bastidores: CC1121 henceforth0114489-CC1121 henceforth0123909 2010
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 L1 Bastidores: CC1121 henceforth0123910-CC1121 henceforth0128242 2011-2012
Suzuki UH 125 G Burgman 12,4 CV, 9,1 kw 1cil. CC1121 L3 Bastidores: CC1121 henceforth0128243-- 2013
