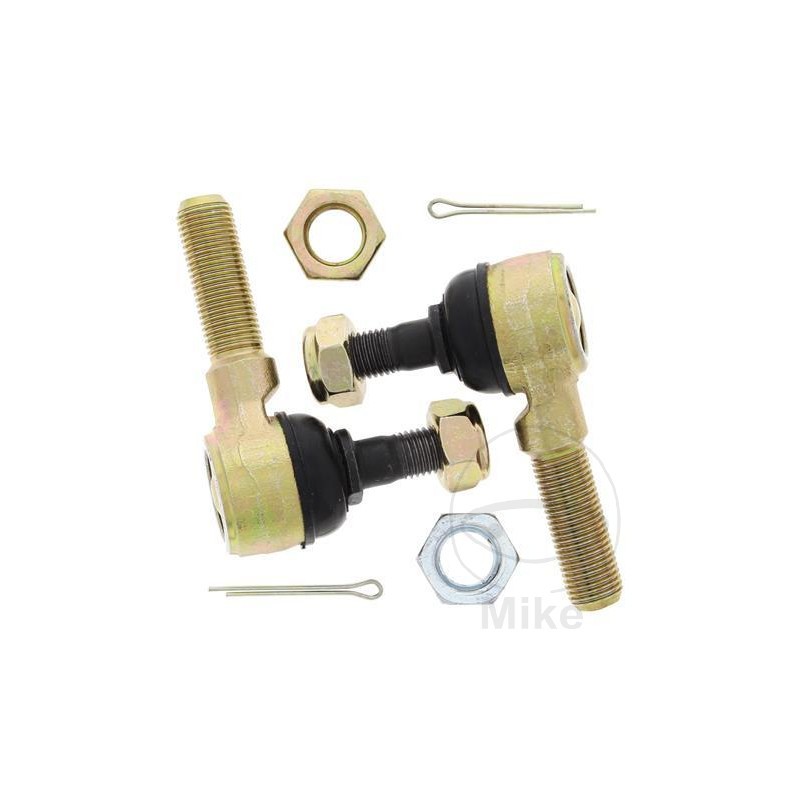

ALL BALLS Reinforced tie rod kit 765.03.15

All Ball Racing Tie Rod End Set

- reinforced casing

- Incl. 2 tie rod ends and lock nuts (1x left-hand thread 1x right-hand thread)
TYPE (1): BALL HEAD
STEERING ROD CONNECTION (1): MALE FITTING
STEERING BAR THREAD (1): M12 X 1.25 RIGHT
BALL JOINT THREAD (1): M10 X 1.25
TOTAL LENGTH (1): 60MM
END DISTANCE OF THE THREAD - SAFETY PIN (1): 20.5 MM
STEERING BAR THREAD LENGTH (1): 33 MM
NARROWING (1): NONE
TYPE (2): BALL HEAD
STEERING ROD CONNECTION (2): MALE CONNECTOR
STEERING BAR THREAD (2): M12 X 1.25 LEFT
BALL JOINT THREAD (2): M10 X 1.25
TOTAL LENGTH (2): 60MM
END DISTANCE OF THE THREAD - SAFETY PIN (2): 20.5 MM
STEERING BAR THREAD LENGTH (2): 33 MM
NARROW (2): NONE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki LT 500 R Quadracer 51 CV, 37,5 kw 1cil. AM11A H Bastidores: AM11A-H2100001-- 1987
Suzuki LT 500 R Quadracer 51 CV, 37,5 kw 1cil. AM11A J Bastidores: AM11A-J2100001-- 1988
Suzuki LT 500 R Quadracer 51 CV, 37,5 kw 1cil. AM11A K Bastidores: AM11A-K2100001-- 1989
Suzuki LT 500 R Quadracer 51 CV, 37,5 kw 1cil. AM11A L Bastidores: AM11A-L2100001-- 1990
Suzuki LT-F 250 Ozark 1cil. - L4 Bastidores: --- 2014
Suzuki LT-F 250 Ozark 1cil. - L5 Bastidores: --- 2015
Suzuki LT-F 400 F Eiger 4WD 1cil. AK46A K2 Bastidores: --- 2002
Suzuki LT-F 400 F Eiger 4WD 1cil. AK46A K5 Bastidores: AK46A-57100001-- 2005
Suzuki LT-F 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46A K3 Bastidores: AK46A-37100001-- 2003
Suzuki LT-F 400 F Eiger 4WD 27 CV, 20 kw 1cil. AK46A K4 Bastidores: AK46A-47100001-- 2004
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK49A K8 Bastidores: AK49A-87100001-AK49A-87199999 2008
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK49A K9 Bastidores: AK49A-97100001-AK49A-97199999 2009
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L0 Bastidores: AK4CA-A7100001-- 2010
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L1 Bastidores: AK4CA-B7100001-- 2011
Suzuki LT-F 400 FS Kingquad 4WD 1cil. AK4CA L2 Bastidores: AK4CA-C7100001-- 2012-2015
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K3 Bastidores: AK47A-32100001-- 2003
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA K9 Bastidores: AK4AA-92100001-- 2009
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L0 Bastidores: AK4AA-A2100001-- 2010
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L1 Bastidores: AK4AA-B2100001-- 2011
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L2 Bastidores: AK4AA-C2100001-- 2012-2017
