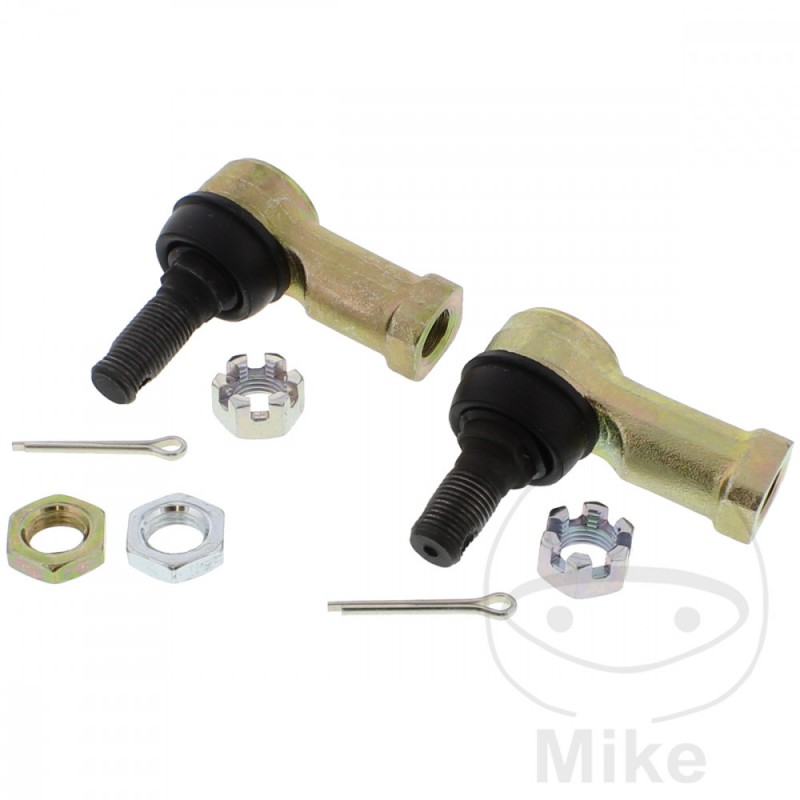

ALL BALLS Reinforced tie rod kit 765.02.59

All Balls Racing Tie Rod End Kit

- reinforced casing

- incl. 2 tie rods and lock nuts (1x left-hand thread, 1x right-hand thread)
TYPE (1): BALL HEAD
STEERING ROD CONNECTION (1): FEMALE CONNECTOR
STEERING BAR THREAD (1): M12 X 1.25 RIGHT
BALL JOINT THREAD (1): M12 X 1.25
TOTAL LENGTH (1): 50MM
END DISTANCE OF THE THREAD - SAFETY PIN (1): 19 MM
STEERING BAR THREAD LENGTH (1): 31 MM
NARROWING (1): NONE
TYPE (2): BALL HEAD
STEERING ROD CONNECTION (2): FEMALE CONNECTOR
STEERING BAR THREAD (2): M12 X 1.25 LEFT
BALL JOINT THREAD (2): M12 X 1.25
TOTAL LENGTH (2): 53MM
END DISTANCE OF THE THREAD - SAFETY PIN (2): 24 MM
STEERING BAR THREAD LENGTH (2): 32 MM
NARROW (2): NONE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 400 FWAN Kodiak 4WD 27 CV, 20 kw 1cil. AJ07W 5TE8 Bastidores: AJ07W-502901-- 2004-2005
Yamaha YFM 450 FWA Grizzly IRS 26,4 CV, 19,4 kw 1cil. AJ14W 1CU3 Bastidores: AJ14W-516867-- 2011
Yamaha YFM 450 FWA Grizzly IRS 26,4 CV, 19,4 kw 1cil. AJ14W 1CU8 Bastidores: AJ14W-518267-- 2012
Yamaha YFM 450 FWA Grizzly IRS 26,4 CV, 19,4 kw 1cil. AJ14W 1CUF Bastidores: AJ14W-520667-- 2013
Yamaha YFM 450 FWA Grizzly IRS 26,4 CV, 19,4 kw 1cil. AJ14W 1CUM Bastidores: AJ14W-521667-- 2014
Yamaha YFM 450 FWA Grizzly IRS 26,4 CV, 19,4 kw 1cil. AJ14W 1CUR Bastidores: AJ14W-522767-- 2015
Yamaha YFM 450 FWAN Grizzly 27 CV, 20 kw 1cil. AJ14W 1D9D Bastidores: AJ14W-503601-- 2006
Yamaha YFM 450 FWAN Grizzly 27 CV, 20 kw 1cil. AJ18W 1D9L Bastidores: AJ18W-500001-- 2006
Yamaha YFM 450 FWAN Grizzly Camouflage 27 CV, 20 kw 1cil. AJ16W 1D9H Bastidores: AJ16W-500004-- 2006
Yamaha YFM 450 FWAN Kodiak 27 CV, 20 kw 1cil. AJ14W 1D93 Bastidores: AJ14W-500101-- 2005
Yamaha YFM 450 FWAN Kodiak 27 CV, 20 kw 1cil. AJ16W 1D97 Bastidores: AJ16W-500101-- 2005
