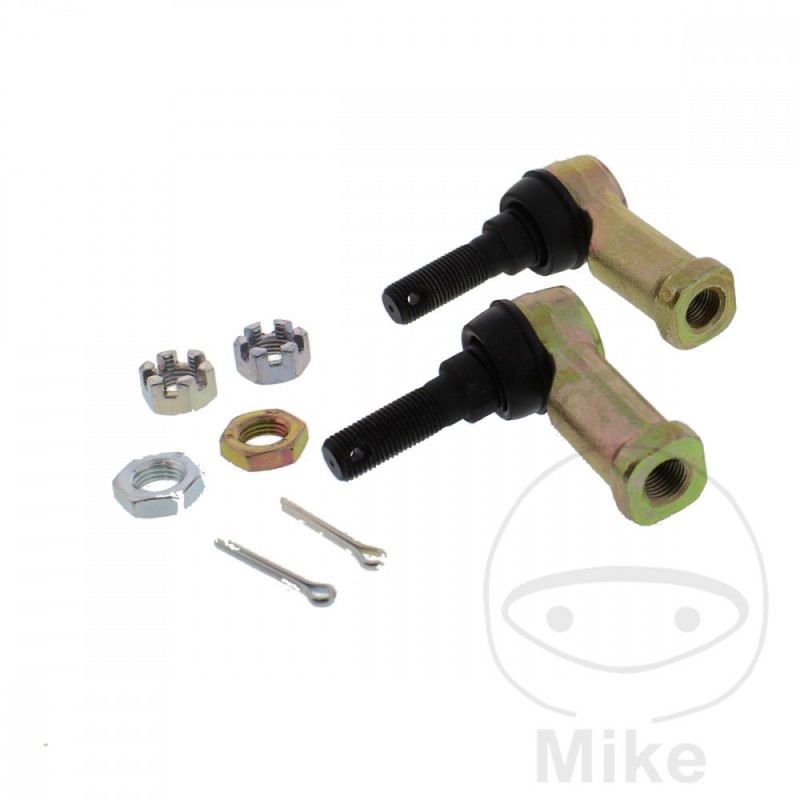

ALL BALLS Reinforced tie rod kit 765.01.07

All Balls Racing Tie Rod End Kit

- reinforced housing

- Includes 2 tie rod ends and lock nuts (1x left thread 1x right thread)
TYPE (1): BALL HEAD
STEERING ROD CONNECTION (1): FEMALE CONNECTOR
TYPE (2): BALL HEAD
STEERING ROD CONNECTION (2): FEMALE CONNECTOR
STEERING BAR THREAD (2): M12 X 1.25 LEFT
BALL JOINT THREAD (2): M12 X 1.25
TOTAL LENGTH (2): 62MM
END DISTANCE OF THE THREAD - SAFETY PIN (2): 31 MM
STEERING BAR THREAD LENGTH (2): 41 MM
NARROW (2): NONE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
CAN-AM Outlander 1000 82 CV, 60,3 kw 2cil. - Bastidores: --- 2012
CAN-AM Outlander 1000 Max Limited DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Outlander 1000 X-mr DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Outlander 1000 XT 6WD DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2014-2015
CAN-AM Outlander 1000 XT DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2012-2013
CAN-AM Outlander 1000 XT DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2015-2015
CAN-AM Outlander 1000 XT Max DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2015
CAN-AM Outlander 1000 XT-P DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Outlander 1000 XT-P Max DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Outlander 450 L 38 CV, 28 kw 1cil. - Bastidores: --- 2015
CAN-AM Outlander 450 L DPS 38 CV, 28 kw 1cil. - Bastidores: --- 2015
CAN-AM Outlander 450 L International 38 CV, 28 kw 1cil. - Bastidores: --- 2015
CAN-AM Outlander 450 L Max DPS 38 CV, 28 kw 1cil. - Bastidores: --- 2015
CAN-AM Outlander 500 DPS 46 CV, 33,8 kw 2cil. - Bastidores: --- 2013-2014
CAN-AM Outlander 500 International 46 CV, 33,8 kw 2cil. - Bastidores: --- 2013-2014
CAN-AM Outlander 500 L DPS 46 CV, 33,8 kw 2cil. - Bastidores: --- 2015
CAN-AM Outlander 500 L Max DPS 46 CV, 33,8 kw 2cil. - Bastidores: --- 2015
CAN-AM Outlander 500 Max DPS 46 CV, 33,8 kw 2cil. - Bastidores: --- 2013-2014
CAN-AM Outlander 650 DPS 62 CV, 45,6 kw 2cil. - Bastidores: --- 2014-2015
CAN-AM Outlander 650 Max DPS 62 CV, 45,6 kw 2cil. - Bastidores: --- 2015
CAN-AM Outlander 650 XT DPS 62 CV, 45,6 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Outlander 650 XT Max DPS 62 CV, 45,6 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Outlander 650 XT-P DPS 62 CV, 45,6 kw 2cil. - Bastidores: --- 2015
CAN-AM Outlander 650 XT-P Max DPS 62 CV, 45,6 kw 2cil. - Bastidores: --- 2014-2015
CAN-AM Outlander 800 R 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012
CAN-AM Outlander 800 R Max 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012
CAN-AM Outlander 800 R Max DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2013-2014
CAN-AM Outlander 800 R Max Limited DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012
CAN-AM Outlander 800 R X-mr DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012
CAN-AM Outlander 800 R XT DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012-2015
CAN-AM Outlander 800 R XT Max DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012-2012
CAN-AM Outlander 800 R XT Max DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2014-2015
CAN-AM Outlander 800 R XT-P DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012-2012
CAN-AM Outlander 800 R XT-P DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2015-2015
CAN-AM Outlander 800 R XT-P Max DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012-2015
CAN-AM Outlander 800 R X-xc DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012
CAN-AM Renegade 1000 R X-xc DPS 89 CV, 65 kw 2cil. - Bastidores: --- 2016
CAN-AM Renegade 1000 XT 82 CV, 60,3 kw 2cil. - Bastidores: --- 2012
CAN-AM Renegade 1000 X-xc DPS 82 CV, 60,3 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Renegade 500 46 CV, 33,8 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Renegade 800 R 71 CV, 52,2 kw 2cil. - Bastidores: --- 2013-2015
CAN-AM Renegade 800 R X-xc DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2012-2012
CAN-AM Renegade 800 R X-xc DPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2015-2015
