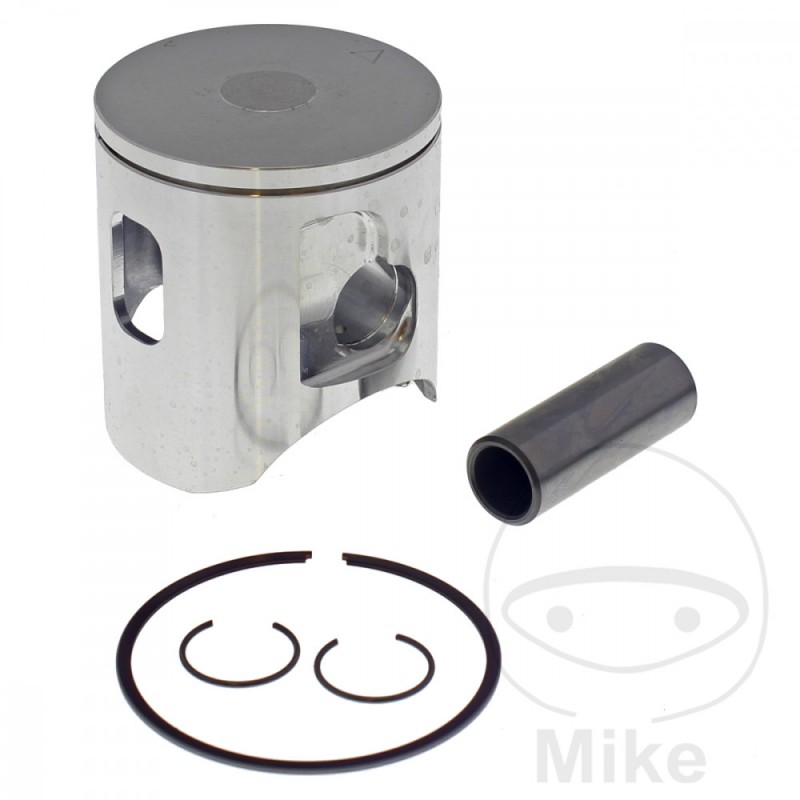

ATHENA forged piston kit Ø 53.96 MM B 756.02.01

Athena piston set

Athena has worked with the best motocross teams in the world for over 10 years and has developed pistons with you. Developed and manufactured with the best technology available.

All piston models are made from aluminum alloys and have a perfect blend of nickel, copper and silicon. The careful selection of top quality raw materials together with the most modern mechanical engineering techniques guarantee the lightness and resistance of the pistons, for better performance and durability of the engine. Forged pistons are more temperature resistant and durable than cast pistons.

Athena piston sets are supplied complete with rings, bolts and clips.

Piston diameter: 53.96 mm (B)

Piston Material: Forged

Piston Pin Diameter: 15mm.

Compression Rate: Corresponds to OE Piston
VERSION: EXORBITANCE
PISTON DIAMETER: 53.96 MM
PISTON PIN: 15MM
QUALITY: FORGED
COMPRESSION RATIO: STANDARD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 35 CV, 25,5 kw 1cil. JE01 N Bastidores: JE01-5300001-JE01-5303393 1992
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 P Bastidores: JE01-5400001-JE01-5404242 1993
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
Honda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 1 Bastidores: JH2 JE01A-1M500001-- 2001
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 2 Bastidores: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A 3 Bastidores: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A W Bastidores: JE01A-WM200001-- 1998
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A X Bastidores: JE01A-XM300001-- 1999
Honda CR 125 R 41 CV, 30 kw 1cil. JE01A Y Bastidores: JH2 JE01A-YM400001-- 2000
