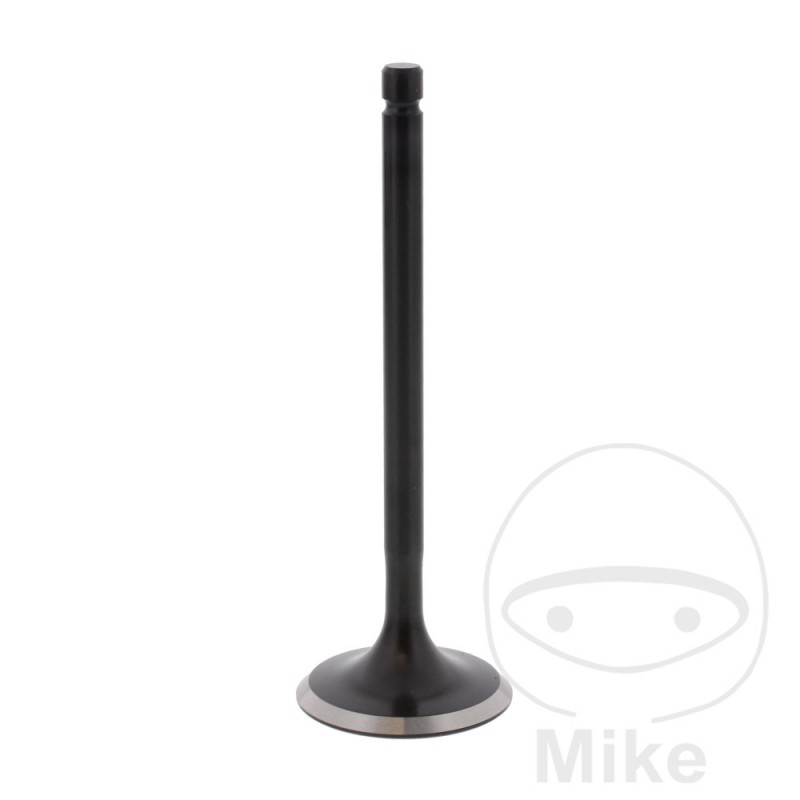

JMP Admission valve 747.01.67

JMP inlet valve

- Material: SUH35 = Stainless steel and heat resistant.

- Surface: AB-1 = nitriding treatment in which the surface turns black
DISC DIAMETER: 36.00 MM
TOTAL LENGTH: 105.70MM
HANDLE DIAMETER: 6.60 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda FMX 650 34 CV, 25 kw 1cil. RD12B 5 Bastidores: VTM RD12B henceforth5E000001-VTM RD12B henceforth5E099999 2005
Honda FMX 650 34 CV, 25 kw 1cil. RD12B 6 Bastidores: VTM RD12B henceforth6E010001-- 2006-2007
Honda FMX 650 38 CV, 28 kw 1cil. RD12A 5 Bastidores: VTM RD12A henceforth5E000023-VTM RD12A henceforth5E099999 2005
Honda FMX 650 38 CV, 28 kw 1cil. RD12A 6 Bastidores: VTM RD12A henceforth6E210001-- 2006-2007
Honda FX 650 Vigor 34 CV, 25 kw 1cil. RD09C X Bastidores: VTM RD09C henceforthXE110002-- 1999-2000
Honda FX 650 Vigor 39 CV, 29 kw 1cil. RD09A X Bastidores: VTM RD09A henceforthXE420004-- 1999-2000
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 2L Bastidores: RD02-6300002-- 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 L Bastidores: RD02-6200001-RD02-6200550 1990
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 M Bastidores: RD02-6400001-- 1991
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 N Bastidores: RD02-3500001-RD02-3500740 1992
Honda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 P Bastidores: RD02-3600001-- 1993
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD02 R Bastidores: RD02-7000001-- 1994
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD087 S Bastidores: ZDC RD087-1SF000396-- 1995
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B T Bastidores: ZDC RD08B henceforthTF100001-- 1996
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B V Bastidores: ZDC RD08B henceforthVF200001-- 1997
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B W Bastidores: ZDC RD08B henceforthWF300001-- 1998
Honda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B X Bastidores: ZDC RD08B henceforthXF300001-- 1999-2000
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 M Bastidores: RD02-5400001-- 1991
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 N Bastidores: RD02-5500015-RD02-5508074 1992
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 P Bastidores: RD02-5600354-- 1993
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 R Bastidores: RD02-5700005-- 1994
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD087 S Bastidores: ZDC RD087 henceforthSF000276-- 1995
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A T Bastidores: ZDC RD08A henceforthTF100001-- 1996
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A V Bastidores: ZDC RD08A 0VF200001-- 1997
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A W Bastidores: ZDC RD08A henceforthWF300001-- 1998
Honda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A X Bastidores: ZDC RD08A henceforthXF300001-- 1999-2000
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 2L Bastidores: RD02-5300009-- 1990
Honda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 L Bastidores: RD02-5200136-RD02-5205987 1990
Honda NX 650 Dominator piñón engranaje fino 45 CV, 33 kw 1cil. RD02 K Bastidores: RD02-5100088-RD02-5105732 1989
Honda NX 650 Dominator piñón engranaje grueso 27 CV, 20 kw 1cil. RD02 J Bastidores: RD02-6000002-RD02-6000803 1988
Honda NX 650 Dominator piñón engranaje grueso 45 CV, 33 kw 1cil. RD02 J Bastidores: RD02-5000988-RD02-5012318 1988
Honda SLR 650 34 CV, 25 kw 1cil. RD09C V Bastidores: VTM RD09C henceforthVE000001-VTM RD09C henceforthVE001381 1997
Honda SLR 650 34 CV, 25 kw 1cil. RD09C W Bastidores: VTM RD09C henceforthWE000002-- 1998
Honda SLR 650 39 CV, 29 kw 1cil. RD09A V Bastidores: VTM RD09A henceforthVE100001-VTM RD09A henceforthVE101384 1997
Honda SLR 650 39 CV, 29 kw 1cil. RD09A W Bastidores: VTM RD09A henceforthWE100002-VTM RD09A henceforthWE100301 1998
Honda XL 600 LM Paris Dakar 27 CV, 20 kw 1cil. PD04 F Bastidores: PD04-5000001-PD04-5099999 1985-1986
Honda XL 600 LM Paris Dakar 44 CV, 32 kw 1cil. PD04 H Bastidores: PD04-5200002-PD04-5299999 1987
Honda XL 600 R 45 CV, 33 kw 1cil. PD03 D Bastidores: PD03-5000015-PD03-5056013 1983-1984
Honda XL 600 RM 27 CV, 20 kw 1cil. PD04 G Bastidores: PD04-6000002-PD04-6099999 1986
Honda XL 600 RM 44 CV, 32 kw 1cil. PD04 G Bastidores: PD04-5100001-PD04-5199999 1986
Honda XR 500 R Pro Link 36,5 CV, 27 kw 1cil. PE03 D Bastidores: PE03-5000004-- 1983
Honda XR 500 R Pro Link 36,5 CV, 27 kw 1cil. PE03 E Bastidores: PE03-5110001-- 1984
Honda XR 600 R 37 CV, 27 kw 1cil. PE04A W Bastidores: JH2 PE04A-WK300001-- 1998-2000
Honda XR 600 R 37 CV, 27 kw 1cil. PE04A W Bastidores: JH2 PE04A-WM200001-JH2 PE04A-WM200520 1998-2000
Honda XR 600 R 44 CV, 32 kw 1cil. PE04 S Bastidores: PE04-5950001-PE04-5951514 1995
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04 P Bastidores: PE04-5800001-- 1993
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04 R Bastidores: PE04-5900001-PE04-5906494 1994
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04A T Bastidores: JH2 PE04A-TM000001-JH2 PE04A-TM000881 1996
Honda XR 600 R 44/27 CV, 32/20 kw 1cil. PE04A V Bastidores: JH2 PE04A-VM100001-JH2 PE04A-VM101093 1997
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 F Bastidores: PE04-5000011-PE04-5002261 1985
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 G Bastidores: PE04-5100001-PE04-5101920 1986
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 H Bastidores: PE04-5200001-PE04-5201612 1987
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 J Bastidores: PE04-5300008-PE04-5302689 1988
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 K Bastidores: PE04-5400001-PE04-5402404 1989
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 L Bastidores: PE04-5500001-PE04-5503245 1990
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 M Bastidores: PE04-5600002-PE04-5602807 1991
Honda XR 600 R 45 CV, 33 kw 1cil. PE04 N Bastidores: PE04-5700001-- 1992
