TRW Clutch plates ALTN:7451602 738.81.01

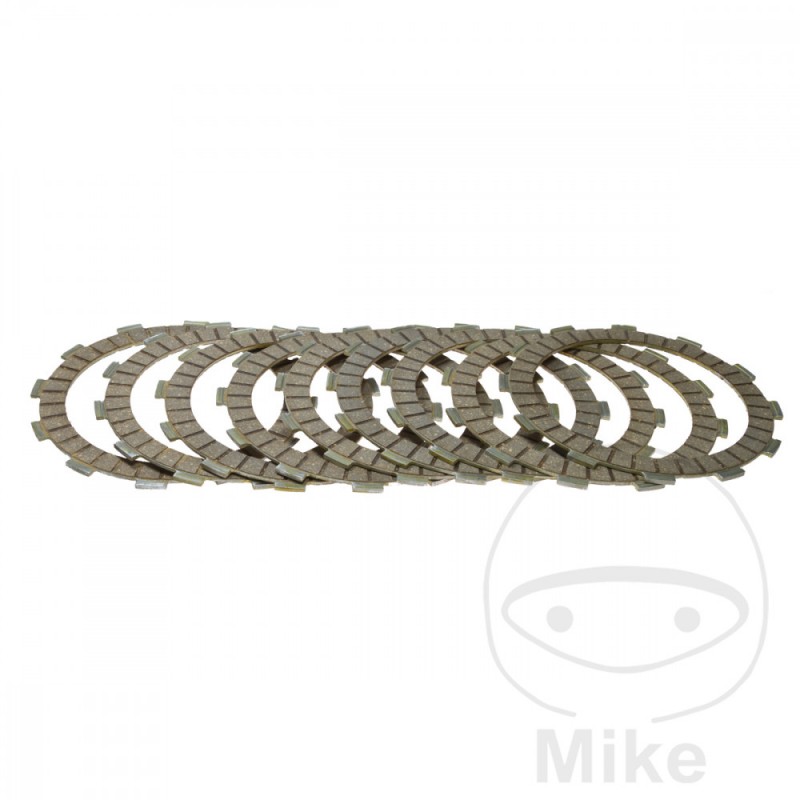

TRW-Lucas Clutch Disc Sets



- Clutch plates are supplied as sets without washers.

- Depending on the original, different mixtures are used



- For storage reasons, some kits may contain more plates than are required for the particular vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 148 MM
LAMELLE 1 AUßENDURCHMESSER 2: 159 MM
LAMELLE 1 INNENDURCHMESSER: 120.5 MM
LAMELLE 1 SÄRKE: 3 MM
LAMELLE 1 ANZAHL: 9


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GS 1000 G 91 CV, 67 kw 4cil. GS100G T Bastidores: GS100G-100001-GS100G-106431 1980
Suzuki GS 1000 G 91 CV, 67 kw 4cil. GS100G X Bastidores: GS100G-106432-- 1981
Suzuki GS 1000 GL 91 CV, 67 kw 4cil. GS100G X Bastidores: GS100G-702981-- 1981
Suzuki GS 1100 G 94 CV, 69 kw 4cil. GU71A G Bastidores: GU71A-101834-- 1986
Suzuki GS 1100 G 94 CV, 69 kw 4cil. GU73A E Bastidores: GU73A-100001-- 1984-1985
Suzuki GSX 1100 E anti dive 100 CV, 74 kw 4cil. GV71C G Bastidores: GV71C-101657-- 1986-1987
Suzuki GSX 1100 E llanta de fundición 100 CV, 74 kw 4cil. GS110X T Bastidores: GS110X-500001-GS110X-513755 1980
Suzuki GSX 1100 E llanta de fundición 100 CV, 74 kw 4cil. GS110X X Bastidores: GS110X-513756-- 1981
Suzuki GSX 1100 EF full faring 100 CV, 74 kw 4cil. GV71C E Bastidores: GV71C-100001-GV71C-100987 1984
Suzuki GSX 1100 EF full faring 100 CV, 74 kw 4cil. GV71C F Bastidores: GV71C-100988-GV71C-101656 1985
Suzuki GSX 1100 EF full faring 100 CV, 74 kw 4cil. GV71C G Bastidores: GV71C-101657-- 1986-1987
Suzuki GSX 1100 ES semicarenado 100 CV, 74 kw 4cil. GV71C E Bastidores: GV71C-100001-GV71C-100987 1984
Suzuki GSX 1100 ES semicarenado 100 CV, 74 kw 4cil. GV71C F Bastidores: GV71C-100988-GV71C-101656 1985
Suzuki GSX 1100 ES semicarenado 100 CV, 74 kw 4cil. GV71C G Bastidores: GV71C-101657-- 1986-1987
Suzuki GSX 1100 L 95 CV, 70 kw 4cil. GS110X T Bastidores: GS110X-700001-- 1980
Suzuki GSX 1100 llanta de radios 100 CV, 74 kw 4cil. GS110X T Bastidores: GS110X-100001-GS110X-100130 1980
Suzuki GSX 1100 llanta de radios 100 CV, 74 kw 4cil. GS110X X Bastidores: GS110X-100131-- 1981
Suzuki GSX 1100 S Katana 100 CV, 74 kw 4cil. GS110X Z Bastidores: GS110X-522093-- 1982-1984
Suzuki VL 1500 C1500 Intruder 67 CV, 49 kw 2cil. WVAL2111 K5 Bastidores: AL2111 henceforth0105237-AL2111 henceforth0105886 2005
Suzuki VL 1500 C1500 Intruder 67 CV, 49 kw 2cil. WVAL2111 K6 Bastidores: AL2111 henceforth0105887-AL2111 henceforth0106727 2006
Suzuki VL 1500 C1500 Intruder 67 CV, 49 kw 2cil. WVAL2111 K7 Bastidores: AL2111 henceforth0106728-AL2111 henceforth0107443 2007
Suzuki VL 1500 C1500 Intruder 67 CV, 49 kw 2cil. WVAL2111 K8 Bastidores: AL2111 henceforth0107444-AL2111 henceforth0107671 2008
Suzuki VL 1500 C1500 Intruder 67 CV, 49 kw 2cil. WVAL2111 K9 Bastidores: AL2111 henceforth0107672-- 2009
Suzuki VL 1500 LC Intruder 67 CV, 49 kw 2cil. WVAL2111 K1 Bastidores: AL2111 henceforth0101007-AL2111 henceforth0101088 2001
Suzuki VL 1500 LC Intruder 67 CV, 49 kw 2cil. WVAL2111 K2 Bastidores: AL2111 henceforth0101089-AL2111 henceforth0103406 2002
Suzuki VL 1500 LC Intruder 67 CV, 49 kw 2cil. WVAL2111 K3 Bastidores: AL2111 henceforth0103407-AL2111 henceforth0104275 2003
Suzuki VL 1500 LC Intruder 67 CV, 49 kw 2cil. WVAL2111 K4 Bastidores: AL2111 henceforth0104276-AL2111 henceforth0105237 2004
Suzuki VL 1500 LC Intruder 68 CV, 50 kw 2cil. AL1211 W Bastidores: AL1211 henceforth0100001-AL1211 henceforth0103659 1998
Suzuki VL 1500 LC Intruder 68 CV, 50 kw 2cil. AL1211 X Bastidores: AL1211 henceforth0103660-AL1211 henceforth0106568 1999
Suzuki VL 1500 LC Intruder 68 CV, 50 kw 2cil. AL1211 Y Bastidores: AL1211 henceforth0106569-- 2000
