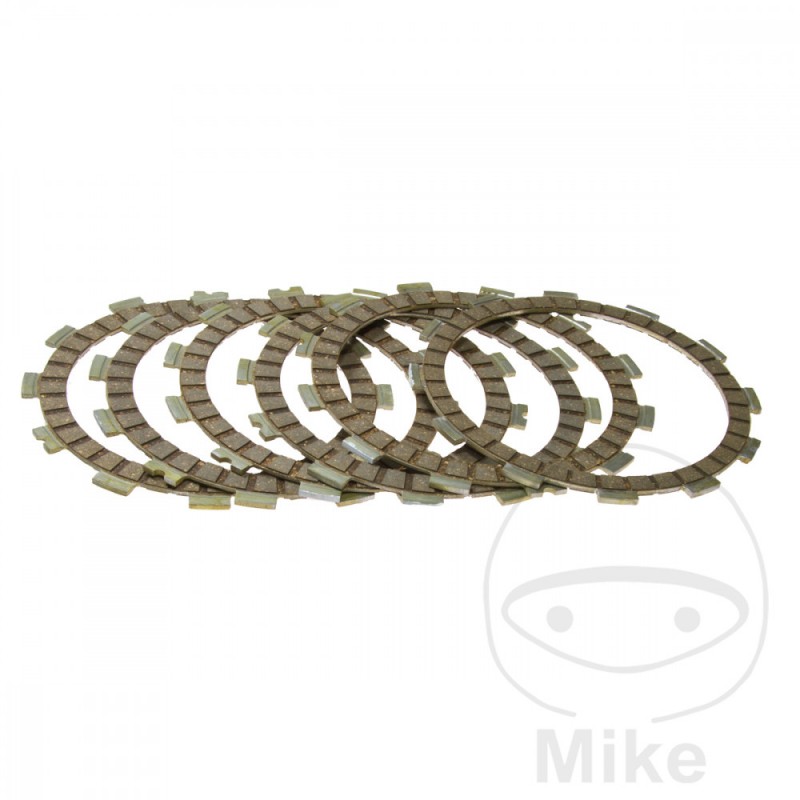

TRW Clutch plates ALTN:7451776 738.80.10

TRW-Lucas Clutch Disc Sets



- Clutch discs are supplied as sets without intermediate discs

- Depending on the original, different mixtures are used



- For storage reasons, some sets may contain more slats than are required for the respective vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 138 MM
LAMELLE 1 AUßENDURCHMESSER 2: 152 MM
LAMELLE 1 INNENDURCHMESSER: 116 MM
LAMELLE 1 SÄRKE: 3 MM
LAMELLE 1 ANZAHL: 5
LAMELLE 2 AUßENDURCHMESSER 1: 138 MM
LAMELLE 2 AUßENDURCHMESSER 2: 152 MM
LAMELLE 2 INNENDURCHMESSER: 121 MM
LAMELLE 2 SÄRKE: 3.5 MM
LAMELLE 2 ANZAHL: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DR 500 S 27 CV, 20 kw 1cil. DR500 X Bastidores: DR500-500001-DR500-504086 1981
Suzuki DR 500 S 27 CV, 20 kw 1cil. DR500 Z Bastidores: DR500-504087-- 1982-1983
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A G Bastidores: SN41A-114731-SN41A-123966 1986
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A H Bastidores: SN41A-123967-SN41A-132194 1987
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A J Bastidores: SN41A-132195-SN41A-139722 1988
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A K Bastidores: SN41A-139723-- 1989
Suzuki DR 600 RU Dakar 27 CV, 20 kw 1cil. SN41A H Bastidores: SN41A-123967-SN41A-132194 1987
Suzuki DR 600 RU Dakar 27 CV, 20 kw 1cil. SN41A J Bastidores: SN41A-132195-SN41A-139722 1988
Suzuki DR 600 RU Dakar 27 CV, 20 kw 1cil. SN41A K Bastidores: SN41A-139723-- 1989
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD F Bastidores: SN41AD-100001-SN41AD-110318 1985
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD G Bastidores: SN41AD-110319-SN41AD-120042 1986
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD H Bastidores: SN41AD-120043-SN41AD-132184 1987
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD J Bastidores: SN41AD-132185-SN41AD-139712 1988
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD K Bastidores: SN41AD-139713-- 1989
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD F Bastidores: SN41AD-100001-SN41AD-110318 1985
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD G Bastidores: SN41AD-110319-SN41AD-120042 1986
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD H Bastidores: SN41AD-120043-SN41AD-132184 1987
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD J Bastidores: SN41AD-132185-SN41AD-139712 1988
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD K Bastidores: SN41AD-139713-- 1989
Suzuki LS 650 F Savage manillar plano 27/31 CV, 20/23 kw 1cil. NP41B G Bastidores: NP41B-100002-NP41B-101742 1986-1987
Suzuki LS 650 F Savage manillar plano 27/31 CV, 20/23 kw 1cil. NP41B J Bastidores: NP41B-101743-NP41B-102334 1988
Suzuki LS 650 F Savage manillar plano 27/31 CV, 20/23 kw 1cil. NP41B K Bastidores: NP41B-102335-NP41B-103137 1989-1990
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B G Bastidores: NP41B-100002-NP41B-101742 1986-1987
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B J Bastidores: NP41B-101743-NP41B-102334 1988
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B K Bastidores: NP41B-102335-NP41B-103137 1989-1990
Suzuki LS 650 P Savage manillar alto 27/31 CV, 20/23 kw 1cil. NP41B M Bastidores: NP41B-103138-NP41B-108964 1991-1993
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B R Bastidores: NP41B-108965-NP41B-115483 1994-1995
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B T Bastidores: NP41B-115484-NP41B-117718 1996
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B V Bastidores: NP41B-117719-NP41B-119611 1997
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B W Bastidores: NP41B-119612-NP41B-121070 1998
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B X Bastidores: NP41B-121071-- 1999
Suzuki LS 650 P Savage manillar alto 31 CV, 23 kw 1cil. NP41B Y Bastidores: NP41B-500424-- 2000
