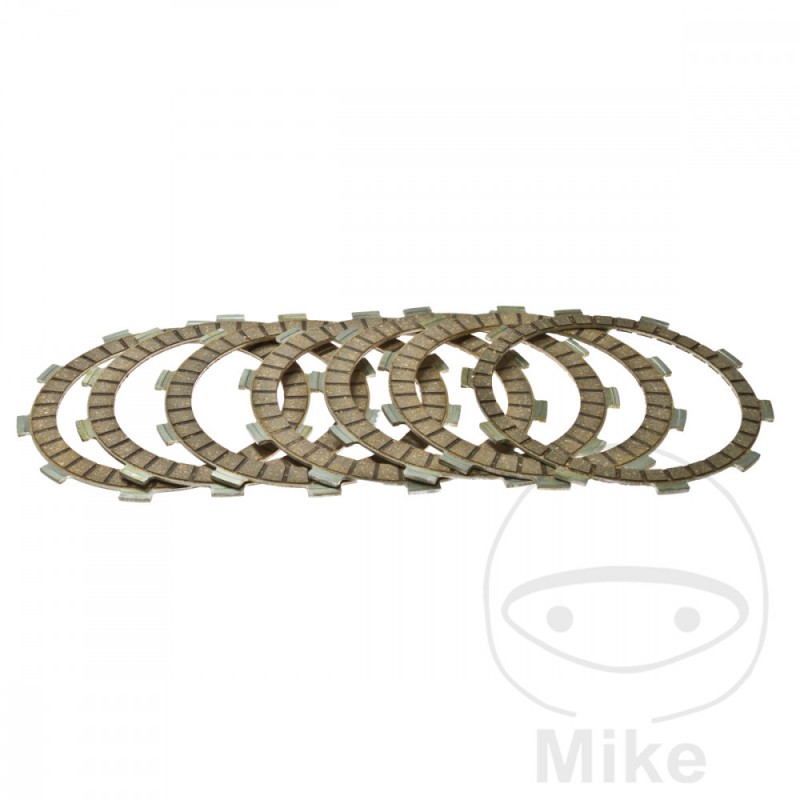

TRW Clutch plates ALTN:7450109 738.73.68

TRW-Lucas Clutch Disc Sets



- Clutch discs are supplied as sets without intermediate discs

- Depending on the original, different mixtures are used



- For storage reasons, some sets may contain more slats than are required for the respective vehicle
LAMELLE 1 AUßENDURCHMESSER 1: 125 MM
LAMELLE 1 AUßENDURCHMESSER 2: 136 MM
LAMELLE 1 INNENDURCHMESSER: 108 MM
LAMELLE 1 SÄRKE: 2.7 MM
LAMELLE 1 ANZAHL: 6
LAMELLE 2 AUßENDURCHMESSER 1: 125 MM
LAMELLE 2 AUßENDURCHMESSER 2: 136 MM
LAMELLE 2 INNENDURCHMESSER: 102 MM
LAMELLE 2 SÄRKE: 3 MM
LAMELLE 2 ANZAHL: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N Bastidores: CB250N-3000008-CB250N-3004407 1978-1979
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N A Bastidores: CB250N-3100001-CB250N-3199999 1980
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N B Bastidores: CB250N-3200002-CB250N-3299999 1981
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N Bastidores: CB250N-2005191-CB250N-2005240 1978-1979
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N A Bastidores: CB250N-2108874-CB250N-2106923 1980
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N B Bastidores: CB250N-2200001-CB250N-2299999 1981
Honda CB 250 T Twin 17 CV, 13 kw 2cil. CB250T 2 Bastidores: CB250T-3000001-CB250T-3001525 1977-1978
Honda CB 250 T Twin 27 CV, 20 kw 2cil. CB250T 2 Bastidores: CB250T-2000036-CB250T-2003356 1977-1978
Honda CB 350 F Four 34 CV, 25 kw 4cil. CB350F Bastidores: CB350F-1034587-CB350F-1071219 1973-1975
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 0 Bastidores: CB400F-1000001-- 1974-1975
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 1 Bastidores: CB400F-2000001-- 1976
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 2 Bastidores: CB400F-2100001-- 1977
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N Bastidores: CB400N-3000006-CB400N-3010850 1978-1979
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N A Bastidores: CB400N-3100001-CB400N-3199999 1980
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N B Bastidores: CB400N-3200002-CB400N-3207397 1981
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N C Bastidores: CB400N-3300004-CB400N-3399999 1982
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N Bastidores: CB400N-2000001-CB400N-2099999 1978-1979
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N A Bastidores: CB400N-2100001-CB400N-2199999 1980
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N B Bastidores: CB400N-2200011-CB400N-2203108 1981
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N C Bastidores: CB400N-2300012-CB400N-2399999 1982
Honda CB 450 N 27 CV, 20 kw 2cil. PC14 F Bastidores: 9C2 PC14-1000001-9C2 PC14-1099999 1985
Honda CB 450 N 44 CV, 32 kw 2cil. PC14 F Bastidores: 9C2 PC14-2000001-9C2 PC14-2099999 1985
Honda CB 450 S 27 CV, 20 kw 2cil. PC17 G Bastidores: PC17-3000002-PC17-3004751 1986-1987
Honda CB 450 S 27 CV, 20 kw 2cil. PC17 J Bastidores: PC17-3100001-PC17-3101900 1988-1989
Honda CB 450 S 44 CV, 32 kw 2cil. PC17 G Bastidores: PC17-2000029-PC17-2003796 1986-1987
Honda CB 450 S 44 CV, 32 kw 2cil. PC17 J Bastidores: PC17-2100002-PC17-2101610 1988-1989
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 A Bastidores: NC01-3000002-NC01-3003047 1980
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 B Bastidores: NC01-3100002-NC01-3106001 1981
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 A Bastidores: NC01-2100001-- 1980
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 B Bastidores: NC01-2200466-NC01-2203476 1981
Honda CM 400 T Custom 27 CV, 20 kw 2cil. NC01 C Bastidores: NC01-3200004-NC01-3203044 1982-1983
Honda CM 400 T Custom 43 CV, 32 kw 2cil. NC01 C Bastidores: NC01-2300004-NC01-2301420 1982-1983
Honda CMX 450 C Rebel 2cil. PC170 G Bastidores: PC170-GM000001-PC170-GM012321 1986
Honda CMX 450 C Rebel 2cil. PC170 H Bastidores: PC170-HM100001-PC170-HM104034 1987
Honda CMX 450 C Rebel 2cil. PC171 G Bastidores: PC171-GM000007-PC171-GM002098 1986
Honda CMX 450 C Rebel 2cil. PC171 H Bastidores: PC171-HM100001-PC171-HM100972 1987
Honda XL 500 R Pro Link 27 CV, 20 kw 1cil. PD02 C Bastidores: PD02-3000001-PD02-3099999 1982-1985
Honda XL 500 R Pro Link 44 CV, 32 kw 1cil. PD02 C Bastidores: PD02-5000012-PD02-5099999 1982-1985
Honda XL 500 S 27 CV, 20 kw 1cil. PD01 A Bastidores: PD01-3100003-PD01-3102202 1980
Honda XL 500 S 27 CV, 20 kw 1cil. PD01 B Bastidores: PD01-3200004-PD01-3205349 1981-1982
Honda XL 500 S 27 CV, 20 kw 1cil. PD01 Z Bastidores: PD01-3000006-PD01-3003911 1979
Honda XL 500 S 34 CV, 25 kw 1cil. PD01 A Bastidores: PD01-5100001-PD01-5199999 1980
Honda XL 500 S 34 CV, 25 kw 1cil. PD01 Z Bastidores: PD01-5000001-PD01-5099999 1979
Honda XL 500 S 36,5 CV, 27 kw 1cil. PD01 B Bastidores: PD01-5200004-PD01-5299999 1981-1982
