Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

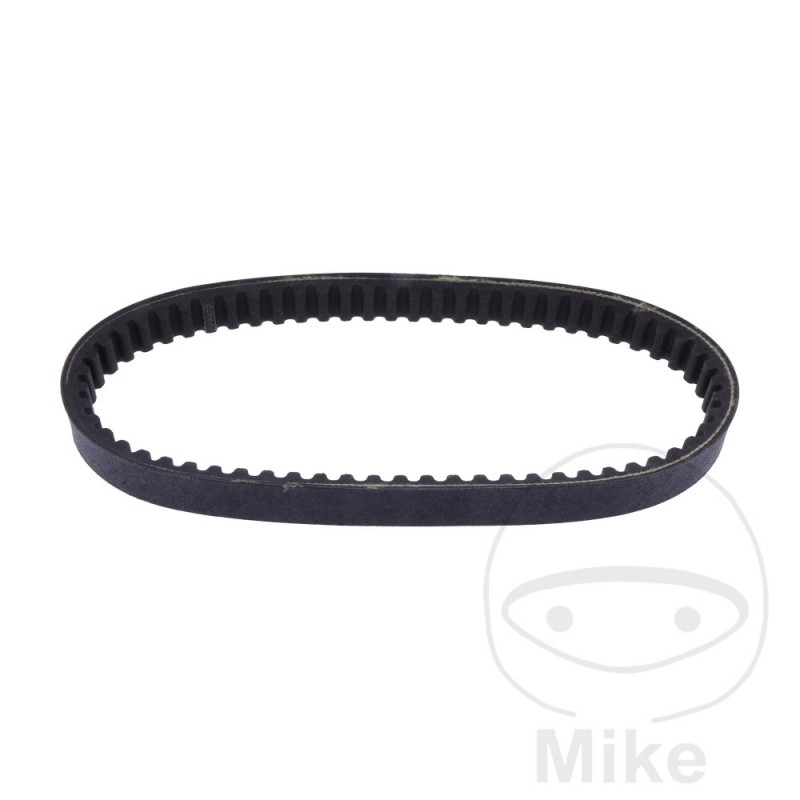

Dayco Power Plus belts are characterized by their aramid fiber core, which provides the belt with optimally increased temperature resistance and therefore allows less elongation, especially at start-up, as well as twice the wear resistance. greater compared to polyester webbing.

wear resistance compared to polyester products (standard line). The interlock on the back of the tape also ensures maximum flexibility, increased surface area and better cooling of the tape during use.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Vespa PK 125 S automática 8 CV, 6 kw 1cil. VAM1T Bastidores: VAM1T-1101-VAM1T-3366 1983-1984
Vespa PK 125 S automática arranque eléctrico 8 CV, 6 kw 1cil. VAM1T Bastidores: VAM1T-3000001-VAM1T-3007758 1983-1984
Vespa PK 50 S automática 2,7 CV, 2 kw 1cil. VA51T Bastidores: VA51T-1101-VA51T-1352 1984-1986
Vespa PK 50 S automática arranque eléctrico 2,7 CV, 2 kw 1cil. VA51T Bastidores: VA51T-3000001-VA51T-3002122 1984-1986
Vespa PK 50 XL automática 2,7 CV, 2 kw 1cil. VA51T Bastidores: VA51T-3001849-- 1986-1987
Vespa PK 50 XL automática arranque eléctrico 2,7 CV, 2 kw 1cil. VA51T Bastidores: VA51T-3001849-- 1986-1987
Vespa PK 80 S automática 5,4 CV, 4 kw 1cil. VA81T Bastidores: VA81T-1001-VA81T-2330 1984
Vespa PK 80 S automática arranque eléctrico 5,4 CV, 4 kw 1cil. VA81T Bastidores: VA81T-3000001-VA81T-3000737 1984-1986
