Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

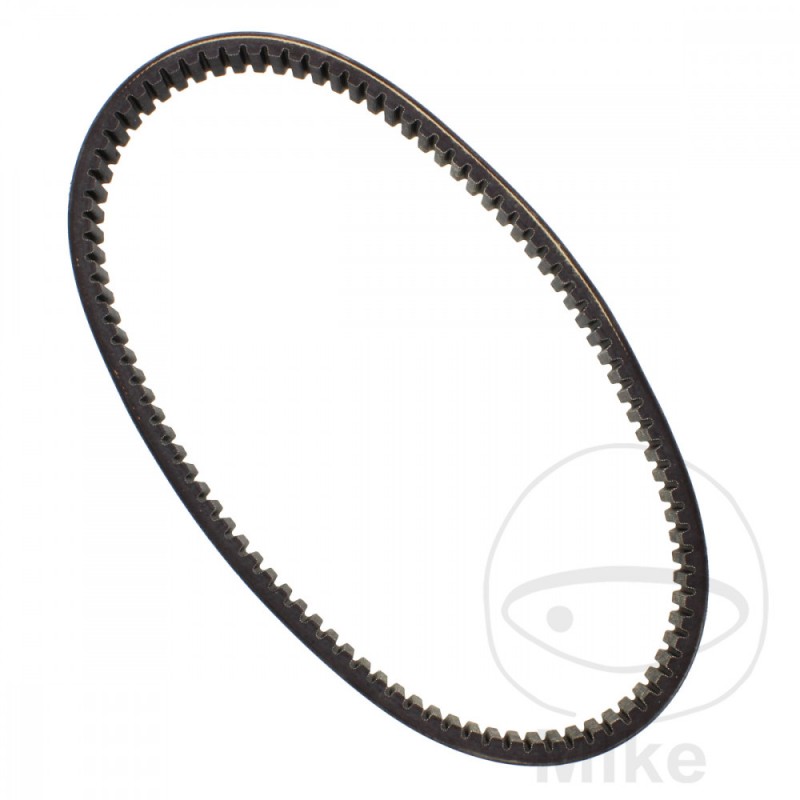

Dayco Power Plus belts are characterized by their aramid fiber core, which provides the belt with optimally increased temperature resistance and therefore allows less elongation, especially at start-up, as well as twice the wear resistance. greater compared to polyester webbing.

wear resistance compared to polyester products (standard line). The interlock on the back of the tape also ensures maximum flexibility, increased surface area and better cooling of the tape during use.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Polaris ATP 330 pickup 20 CV, 14,7 kw 1cil. - Bastidores: --- 2004-2005
Polaris Magnum 330 2WD 20 CV, 14,7 kw 1cil. - Bastidores: --- 2003-2005
Polaris Magnum 330 4WD 20 CV, 14,7 kw 1cil. - Bastidores: --- 2003-2006
Polaris Magnum 425 2WD 1cil. - Bastidores: --- 1995-1997
Polaris Magnum 425 4WD 1cil. - Bastidores: --- 1995-1997
Polaris Ranger 400 HO 4WD Mid Size 29 CV, 21,3 kw 1cil. - Bastidores: --- 2010-2012
Polaris Ranger 400 HO 4WD Mid Size 30 CV, 22,1 kw 1cil. - Bastidores: --- 2013-2014
Polaris Ranger 500 2WD 30 CV, 22 kw 1cil. - Bastidores: --- 2007-2008
Polaris Ranger 500 4WD 1cil. - Bastidores: --- 2004-2005
Polaris Ranger 500 4WD 30 CV, 22 kw 1cil. - Bastidores: --- 2006-2007
Polaris Ranger 500 6WD 1cil. - Bastidores: --- 2004
Polaris Ranger 500 EFI 4WD Mid Size 30 CV, 22 kw 1cil. - Bastidores: --- 2007-2008
Polaris Ranger 500 EFI 4WD Mid Size 32 CV, 23,5 kw 1cil. - Bastidores: --- 2009-2012
Polaris Ranger 500 EFI Crew 4WD Mid Size 32 CV, 23,5 kw 1cil. - Bastidores: --- 2011-2012
Polaris Scrambler 500 4WD 1cil. - Bastidores: --- 2000-2008
Polaris Scrambler 500 4WD 1cil. - Bastidores: --- 2010-2012
Polaris Scrambler 500 4WD 28,5 CV, 21 kw 1cil. - Bastidores: --- 2009
Polaris Sportsman 325 ETX EFI 4WD 32 CV, 23,5 kw 1cil. - Bastidores: --- 2015
Polaris Sportsman 350 4WD 1cil. - Bastidores: --- 1993
Polaris Sportsman 350 Big Boss 6WD 1cil. - Bastidores: --- 1993
Polaris Sportsman 400 4WD 1cil. - Bastidores: --- 1994-1997
Polaris Sportsman 400 4WD 1cil. - Bastidores: --- 2001-2005
Polaris Sportsman 400 Big Boss 6WD 1cil. - Bastidores: --- 1994
Polaris Sportsman 400 HO 4WD 1cil. - Bastidores: --- 2011-2012
Polaris Sportsman 400 HO 4WD 27,8 CV, 20 kw 1cil. - Bastidores: --- 2008-2010
Polaris Sportsman 400 L Big Boss 6WD 1cil. - Bastidores: --- 1995-1997
Polaris Sportsman 450 4WD 1cil. - Bastidores: --- 2006-2007
Polaris Sportsman 450 HO EFI 4WD 31 CV, 22,8 kw 1cil. - Bastidores: --- 2016-2017
Polaris Sportsman 500 6WD 1cil. - Bastidores: --- 2001-2004
Polaris Sportsman 500 6WD 1cil. - Bastidores: --- 2006-2008
Polaris Sportsman 500 6WD 34 CV, 25 kw 1cil. - Bastidores: --- 2005
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: --- 1996-1996
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: --- 2002-2006
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: A01BA25CA-- 2001
Polaris Trail Blazer 250 2WD 1cil. - Bastidores: A01BA25CB-- 2001
Polaris Trail Blazer 330 2WD 19 CV, 14 kw 1cil. - Bastidores: --- 2008-2013
Polaris Trail Boss 250 4WD 1cil. - Bastidores: --- 1989-1995
Polaris Trail Boss 330 2WD 20 CV, 14,7 kw 1cil. - Bastidores: --- 2003-2013
Polaris Trail Boss 350 4WD 1cil. - Bastidores: --- 1990-1992
Polaris Xplorer 300 4WD 1cil. - Bastidores: --- 1996-1997
Polaris Xplorer 400 4WD 1cil. - Bastidores: --- 1995-1996
Polaris Xplorer 400 L 4WD 1cil. - Bastidores: --- 1997
Polaris Xplorer 500 4WD 1cil. - Bastidores: --- 1997
Polaris Xpress 300 2WD 1cil. - Bastidores: --- 1996-1997
