Due to the different measurement and production processes of V-belt manufacturers, different length specifications arise between manufacturers.

However, these differences do not affect the functionality of the straps.

Due to different industry standards, different parameters are used to determine length specifications.

A distinction is made between the external length (Le for short), the internal length (Li for short) and the pitch length.

The pitch length describes the measurement of the length at approximately 3/4 of the height of the belt according to DIN 2215.

In addition, the belt tension specified by the vehicle manufacturer must also be taken into account for a reliable length measurement, as it is also an important factor in the production process.

Due to these different measurement methods, different dimensions of V-belts from different manufacturers can occur on the same vehicle.

Orient yourself exclusively on our vehicle assignments.

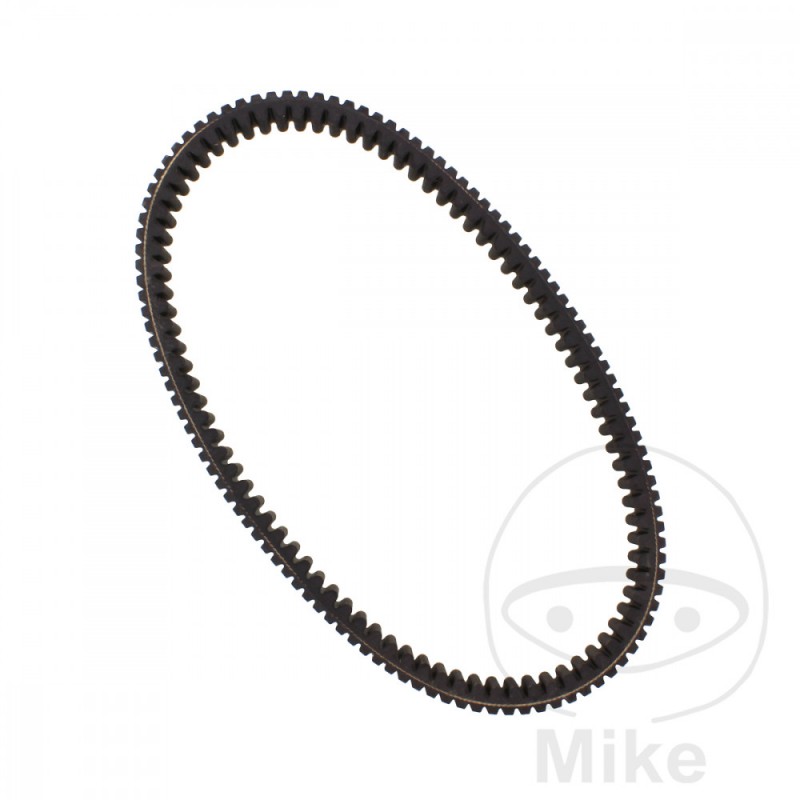

Dayco Power Plus belts are characterized by their aramid fiber core, which provides the belt with optimally increased temperature resistance and therefore allows less elongation, especially at start-up, as well as double wear resistance. compared to polyester webbing.

wear resistance compared to polyester products (standard line). The interlock on the back of the tape also ensures maximum flexibility, increased surface area and better cooling of the tape during use.


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Polaris Sportsman 550 EFI 4WD 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 550 EFI EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 550 EFI Forest 4WD EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2012
Polaris Sportsman 550 EFI Forest EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2013
Polaris Sportsman 550 EFI Touring EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2012
Polaris Sportsman 550 X2 EFI 4WD 42 CV, 31 kw 1cil. - Bastidores: --- 2010-2013
Polaris Sportsman 550 X2 EFI 4WD EPS 42 CV, 31 kw 1cil. - Bastidores: --- 2014
Polaris Sportsman 550 XP EFI 4WD 40,7 CV, 29,9 kw 1cil. - Bastidores: --- 2009
Polaris Sportsman 550 XP EFI EPS 40,7 CV, 29,9 kw 1cil. - Bastidores: --- 2009
Polaris Sportsman 850 EFI Touring EPS 2cil. - Bastidores: --- 2011-2012
Polaris Sportsman 850 EFI Touring EPS 70 CV, 51,5 kw 2cil. - Bastidores: --- 2010
Polaris Sportsman 850 HO EFI Touring EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2015
Polaris Sportsman 850 SP HO EFI 4WD EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2015
Polaris Sportsman 850 XP EFI 4WD 2cil. - Bastidores: --- 2011
Polaris Sportsman 850 XP EFI 4WD 70 CV, 51,5 kw 2cil. - Bastidores: --- 2010
Polaris Sportsman 850 XP EFI 4WD 71 CV, 52,2 kw 2cil. - Bastidores: --- 2009
Polaris Sportsman 850 XP EFI EPS 2cil. - Bastidores: --- 2011
Polaris Sportsman 850 XP EFI EPS 70 CV, 51,5 kw 2cil. - Bastidores: --- 2010
Polaris Sportsman 850 XP EFI EPS 71 CV, 52,2 kw 2cil. - Bastidores: --- 2009
Polaris Sportsman 850 XP HO EFI 4WD 2cil. - Bastidores: --- 2012
Polaris Sportsman 850 XP HO EFI EPS 2cil. - Bastidores: --- 2012
Polaris Sportsman 850 XP HO EFI Forest 4WD EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2012
Polaris Sportsman 850 XP HO EFI Forest EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2014
Polaris Sportsman 850 XP HO EFI Forest EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2013
Polaris Sportsman 850 XP HO EFI Touring EPS 77 CV, 56,6 kw 2cil. - Bastidores: --- 2014
Polaris Sportsman 850 XP HO EFI Touring EPS 78 CV, 57,4 kw 2cil. - Bastidores: --- 2013
