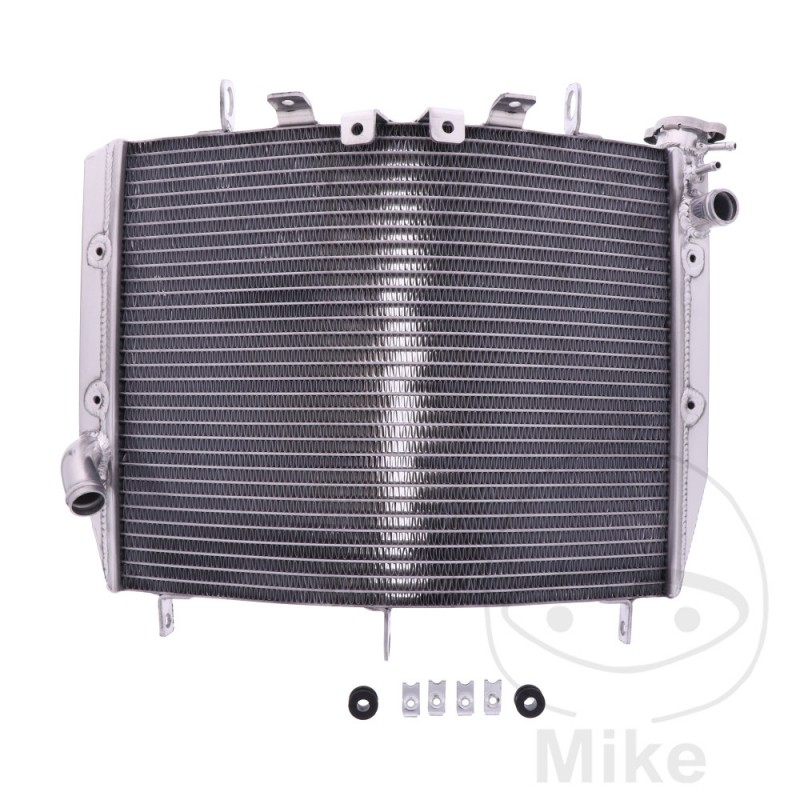

JMP Water radiator with damping rubber 776.03.55

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki Ninja 1000 H2 ABS 200 CV, 147 kw 4cil. ZXT00NNA NFF Bastidores: ZXT00NNA henceforth00001-ZXT00NNA henceforth03000 2015
Kawasaki Ninja 1000 H2 ABS 200 CV, 147 kw 4cil. ZXT00NNA NGF Bastidores: ZXT00NNA henceforth03001-ZXT00NNA-999999 2016
Kawasaki Ninja 1000 H2 ABS 205 CV, 151 kw 4cil. ZXT00XXA XHF Bastidores: ZXT00XXA henceforth00001-ZXT00XXA henceforth02000 2017
Kawasaki Ninja 1000 H2 ABS 205 CV, 151 kw 4cil. ZXT00XXA XJF Bastidores: ZXT00XXA henceforth02001-- 2018
Kawasaki Ninja 1000 H2 ABS 231 CV, 170 kw 4cil. ZXT02JJA JKF Bastidores: ZXT02JJA henceforth00001-ZXT02JJA henceforth02000 2019
Kawasaki Ninja 1000 H2 ABS 231 CV, 170 kw 4cil. ZXT02JJA JLF Bastidores: ZXT02JJA henceforth02001-ZXT02JJA-999999 2020
Kawasaki Ninja 1000 H2 Carbon ABS 205 CV, 151 kw 4cil. ZXT00XXA XHFA Bastidores: ZXT00XXA henceforth00001-ZXT00XXA henceforth02000 2017
Kawasaki Ninja 1000 H2 Carbon ABS 205 CV, 151 kw 4cil. ZXT00XXA XJFA Bastidores: ZXT00XXA henceforth02001-- 2018
Kawasaki Ninja 1000 H2 Carbon ABS 231 CV, 170 kw 4cil. ZXT02JJA JKFA Bastidores: ZXT02JJA henceforth00001-ZXT02JJA henceforth02000 2019
Kawasaki Ninja 1000 H2 Carbon ABS 231 CV, 170 kw 4cil. ZXT02JJA JLFA Bastidores: ZXT02JJA henceforth02001-ZXT02JJA-999999 2020
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00PPA PFF Bastidores: ZXT00PPA henceforth00001-ZXT00PPA henceforth02000 2015
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00PPA PGF Bastidores: ZXT00PPA henceforth02001-ZXT00PPA-999999 2016
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00YYA YHF Bastidores: ZXT00YYA henceforth00001-ZXT00YYA henceforth01000 2017
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00YYA YJF Bastidores: ZXT00YYA henceforth01001-ZXT00YYA henceforth03000 2018
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00YYA YKF Bastidores: ZXT00YYA henceforth03001-ZXT00YYA henceforth04000 2019
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00YYA YLF Bastidores: ZXT00YYA henceforth04001-ZXT00YYA-999999 2020
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00YYA YMFNN Bastidores: ZXT00YYA henceforth05001-ZXT00YYA henceforth06000 2021
Kawasaki Ninja 1000 H2R ABS 310 CV, 228 kw 4cil. ZXT00YYA YNFNN Bastidores: ZXT00YYA henceforth06001-ZXT00YYA henceforth07000 2022
