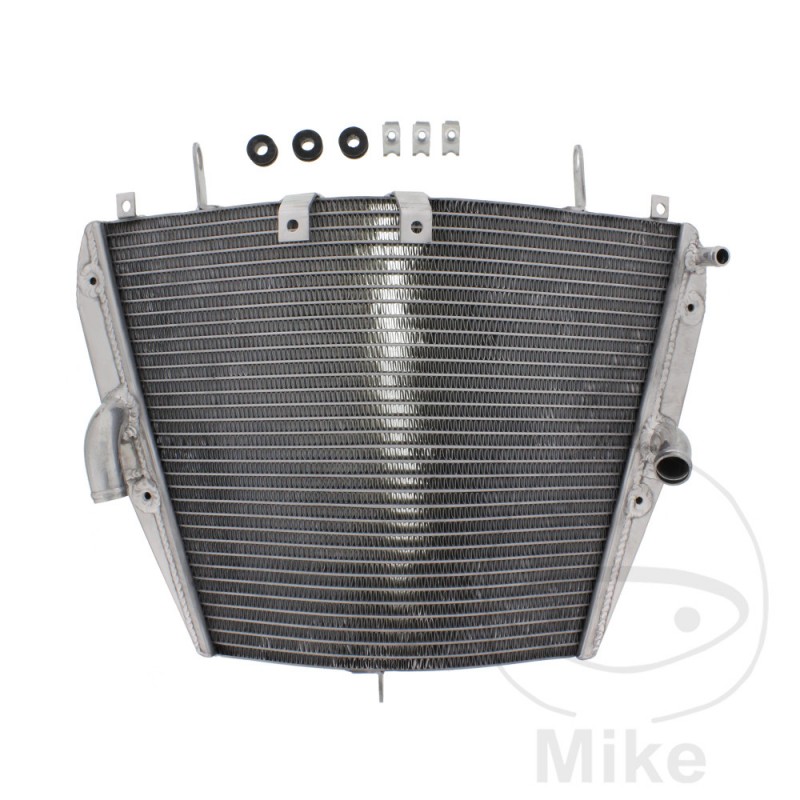

JMP Water radiator with damping rubber 776.01.77

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C C Bastidores: JH2 SC59C-CK300001-JH2 SC59C-CK399999 2012
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C D Bastidores: JH2 SC59C-DK400001-JH2 SC59C-DK499999 2013
Honda CBR 1000 RA Fireblade ABS 181 CV, 133 kw 4cil. SC59C E Bastidores: JH2 SC59C-EK500001-- 2014
Honda CBR 1000 RA Fireblade ABS 181 CV, 133 kw 4cil. SC59C F Bastidores: JH2 SC59C-FK600001-JH2 SC59C-FK699999 2015
Honda CBR 1000 RA Fireblade ABS 181 CV, 133 kw 4cil. SC59C G Bastidores: JH2 SC59C-GK700001-- 2016
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A C Bastidores: JH2 SC59A-CK400001-JH2 SC59A-CK499999 2012
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A D Bastidores: JH2 SC59A-DK500001-JH2 SC59A-DK599999 2013
Honda CBR 1000 RR Fireblade 181 CV, 133 kw 4cil. SC59A E Bastidores: JH2 SC59A-EK600001-- 2014
Honda CBR 1000 RR Fireblade 181 CV, 133 kw 4cil. SC59A F Bastidores: JH2 SC59A-FK700001-JH2 SC59A-FK799999 2015
Honda CBR 1000 RR Fireblade 181 CV, 133 kw 4cil. SC59A G Bastidores: JH2 SC59A-GK800001-- 2016
Honda CBR 1000 S Fireblade SP 181 CV, 133 kw 4cil. SC59E E Bastidores: JH2 SC59E-EK400001-- 2014
Honda CBR 1000 S Fireblade SP 181 CV, 133 kw 4cil. SC59E F Bastidores: JH2 SC59E-FK500001-JH2 SC59E-FK599999 2015
Honda CBR 1000 S Fireblade SP 181 CV, 133 kw 4cil. SC59E G Bastidores: JH2 SC59E-GK600001-- 2016
Honda CBR 1000 SA Fireblade SP ABS 181 CV, 133 kw 4cil. SC59G E Bastidores: JH2 SC59G-EK100001-- 2014
Honda CBR 1000 SA Fireblade SP ABS 181 CV, 133 kw 4cil. SC59G F Bastidores: JH2 SC59G-FK200001-JH2 SC59G-FK299999 2015
Honda CBR 1000 SA Fireblade SP ABS 181 CV, 133 kw 4cil. SC59G G Bastidores: JH2 SC59G-GK300001-- 2016
