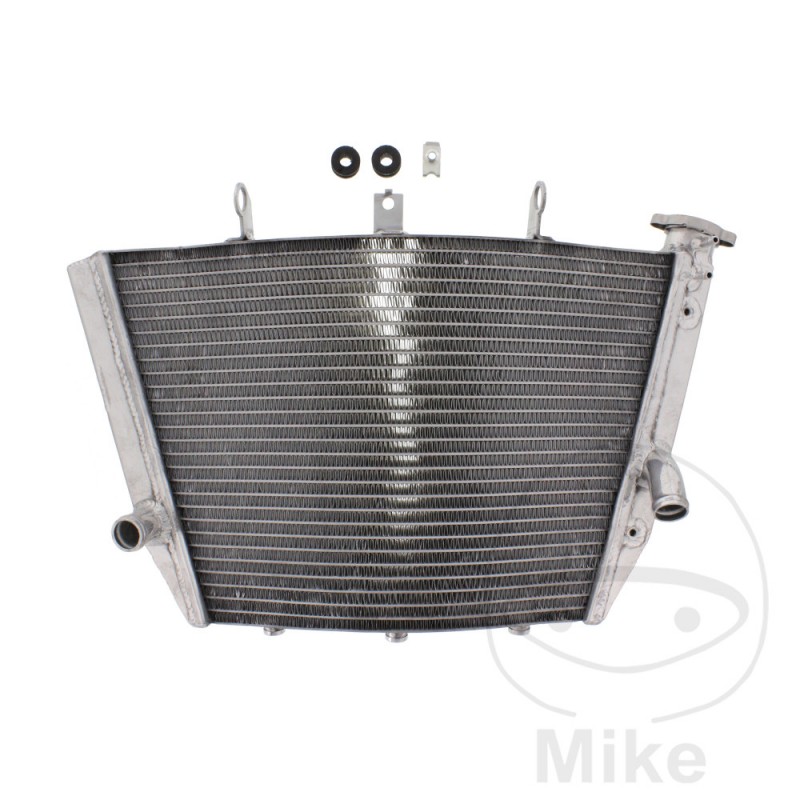

JMP Water radiator with damping rubber 776.01.52

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCL1111 K7 Bastidores: CL1111 henceforth0100001-CL1111 henceforth0113727 2007
Suzuki GSX-R 1000 185 CV, 136 kw 4cil. WVCL1111 K8 Bastidores: CL1111 henceforth0113728-- 2008
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVCL2111 K7 Bastidores: CL2111 henceforth0100001-CL2111 henceforth0102041 2007
Suzuki GSX-R 1000 U2 106 CV, 78 kw 4cil. WVCL2111 K8 Bastidores: CL2111 henceforth0102042-- 2008
