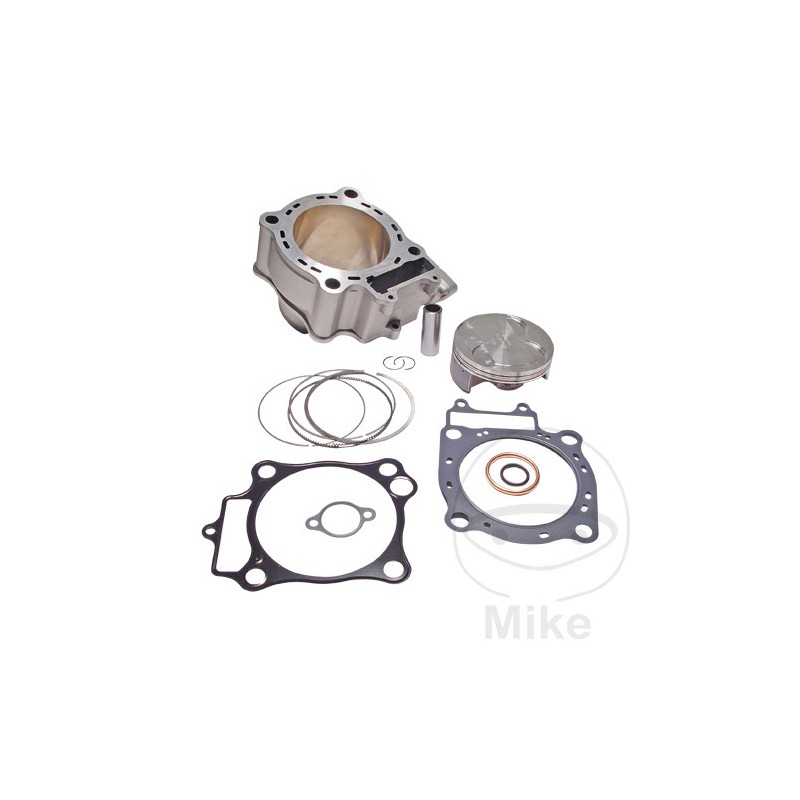

ATHENA Standard cylinder kit for motorcycle 450CC 776.09.37

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured taking into account the latest technologies and coated with a nickel-silicon alloy. After all cylinders have gone through rigorous quality checks, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- The cylinder liners consist of a special mixture of silicon carbide and nickel to ensure the best piston running performance and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- Cylinder surfaces are completely flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 96mm.

Stroke: 62.10mm

Displacement: 449.5cc

Compression: 11.5:1

Piston Pin Diameter: 19mm.

Number of piston rings: 3

Upper Piston Ring Thickness: 1mm.

Second Piston Ring Thickness: 1.2mm

Oil Ring Thickness: 2.5mm

Stock: not included in the scope of delivery

Maximum performance at the crankshaft: 52.1 HP / 8700 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 7 Bastidores: JH2 PE05A-7M500001-JH2 PE05A-7M509999 2007
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 8 Bastidores: JH2 PE05A-8M600001-- 2008
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 2 Bastidores: JH2 PE05A-2M000001-JH2 PE05A-2M099999 2002
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 3 Bastidores: JH2 PE05A-3M100001-JH2 PE05A-3M199999 2003
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 4 Bastidores: JH2 PE05A-4M200001-JH2 PE05A-4M209999 2004
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 5 Bastidores: JH2 PE05A-5M300001-JH2 PE05A-5M309999 2005
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 6 Bastidores: JH2 PE05A-6M400001-JH2 PE05A-6M409999 2006
