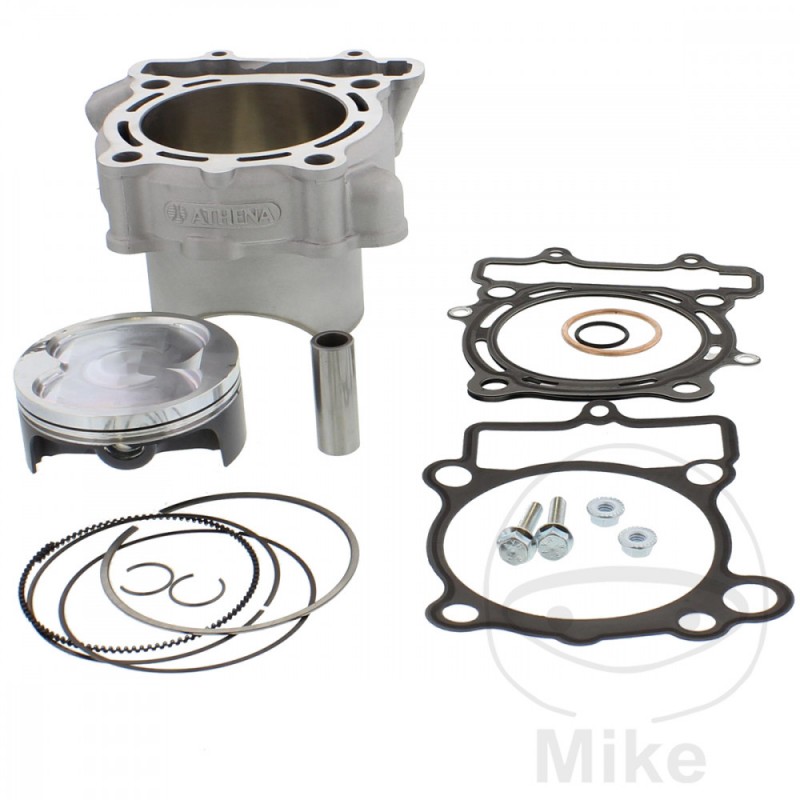

ATHENA cylinder kit for engine 290CC BIG BORE 756.09.52

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities, as well as constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy.

Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Technical specifications:

Cylinder material: Aluminum

Diameter: 83mm

Stroke: 53.6mm

Displacement: 290cc

Compression: 12.8:1

stock: not included

Maximum power at the crankshaft: 36.3 HP / 10400 rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250NNA N1 Bastidores: KX250NNA henceforth00001-KX250NNA henceforth10001 2004
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250NNA N2 Bastidores: KX250NNA henceforth10001-- 2005
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T6F Bastidores: KX250TTA henceforth00001-KX250TTA henceforth11000 2006
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T7F Bastidores: KX250TTA henceforth11001-KX250TTA henceforth26000 2007
Kawasaki KX 250 F 4T 43,5 CV, 32 kw 1cil. KX250TTA T8F Bastidores: KX250TTA henceforth26001-- 2008
Suzuki RM-Z 250 43,1 CV, 31,7 kw 1cil. KX250NPA K4 Bastidores: KX250NPA henceforth00001-KX250NPA henceforth09000 2004
Suzuki RM-Z 250 43,1 CV, 31,7 kw 1cil. KX250NPA K5 Bastidores: KX250NPA henceforth09001-KX250NPA henceforth15000 2005
Suzuki RM-Z 250 43,1 CV, 31,7 kw 1cil. KX250NPA K6 Bastidores: KX250NPA henceforth15001-- 2006
