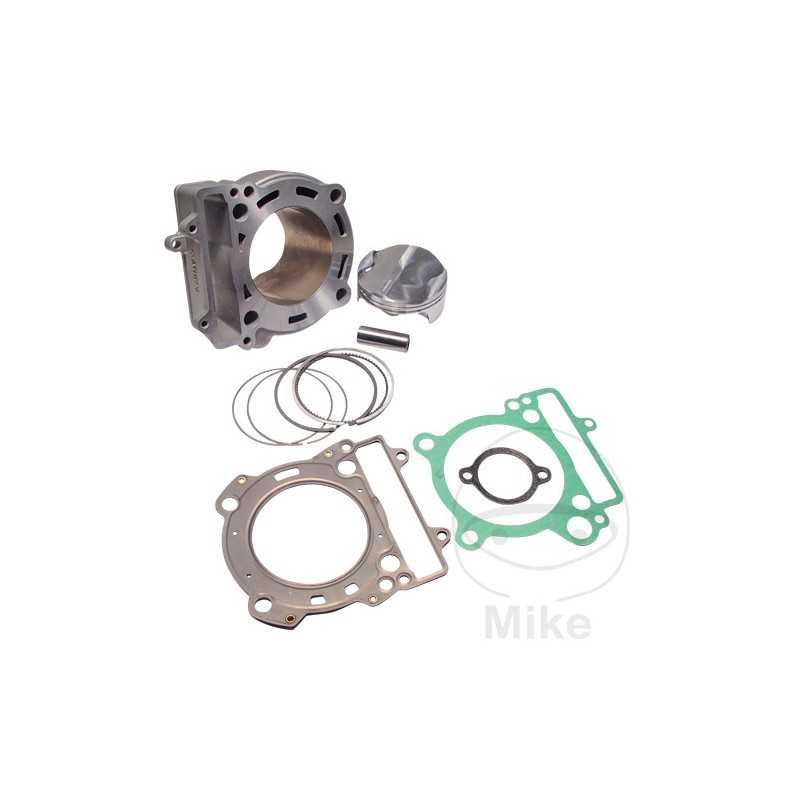

ATHENA Complete standard cylinder kit 250CC 756.95.44

Athena cylinder set

For over 10 years, Athena has been investing in the best and most advanced cylinder manufacturing technologies and components used not only by original equipment manufacturers, but also by the best racing teams in the world.

The production of aluminum cylinders is, last but not least, constantly improved through collaboration with the best Italian universities, as well as continuous development requests from the best engine tuners.

Thanks to a flexible production department, Athena can react efficiently to different situations (original equipment manufacturer production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are made using the latest technologies and coated with a nickel-silicon alloy. After undergoing rigorous quality checks, all cylinders meet the highest standards of reliability, longevity, and performance.

Characteristic:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured using CNC machines (thousandths of tolerances can therefore be guaranteed in all production phases)

- Revised water channels to increase capacity

- The cylinder liners are made of a special silicon carbide and nickel compound to ensure the best piston and cylinder life.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and the cylinder.

- Cylinder surfaces are perfectly flat to eliminate any inaccuracies of fit

Technical information:

Cylinder material: Aluminum

Cooling type: water cooled

Diameter: 76mm.

Stroke: 55mm.

Displacement: 249.37cc

Compaction: 12.5: 1

Piston Pin Diameter: 16mm.

Number of piston rings: 2

stock: not included

Maximum power at the crankshaft: 36 HP / 13,300 RPM

Torque: 23.5 Nm / 8,500rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM SX-F 250 4T 39 CV, 29 kw 1cil. - Bastidores: --- 2006-2010
KTM SX-F 250 ie4T 39 CV, 29 kw 1cil. - Bastidores: --- 2011-2012
