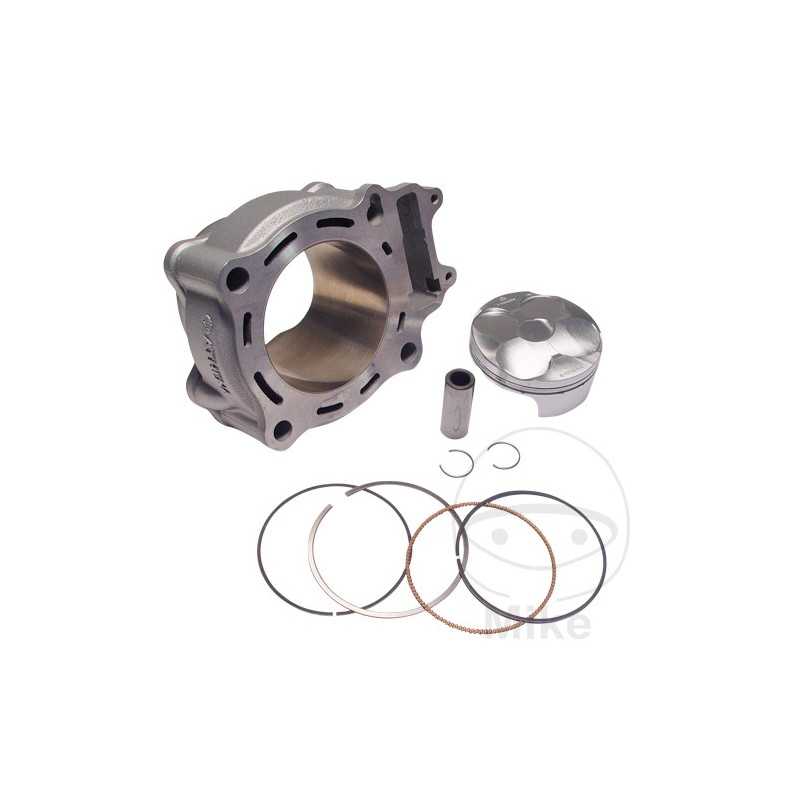

ATHENA Complete standard cylinder kit 250CC 756.40.99

Athena cylinder set

For more than 10 years, Athena has been investing in the best and most modern technologies for the production of cylinders and their components, which are used not only by original equipment manufacturers, but also by the best racing teams in the world.

Last but not least, the production of aluminum cylinders is constantly improved through cooperation with the best Italian universities and constant development requests from the best engine tuners.

Due to a flexible production department, Athena can react efficiently to different situations (OEM production batches, small quantities, building a prototype for racing teams).

Athena cylinders are made of high quality aluminum alloys. They are manufactured using the latest technologies and are coated with a nickel-silicon alloy. Once all cylinders have passed strict quality controls, they meet the highest standards in terms of reliability, durability and performance.

Features:

- A special 3D software is able to generate virtual simulations and mechanical loads.

- Aluminum cylinders are cast in steel molds and manufactured with CNC machines (thousandths of tolerance can therefore be guaranteed in all manufacturing phases)

- Revised water channels to increase capacity

- Cylinder liners are made from a special blend of silicon carbide and nickel to ensure the best possible piston life and cylinder durability.

- Tested at an internal temperature of approximately 20 degrees, for the best possible control of the holes and cylinders

- The surfaces of the cylinders are perfectly flat to eliminate any inaccuracies of fit

Technical specifications:

Cylinder material: Aluminum

Cooling type: water cooled

DIAMETER: 78MM

Stroke: 52.20mm

Displacement: 250cc

Compression: 13.2:1

Piston pin diameter: 16 mm

Stock: not included in delivery

Maximum power at the crankshaft: 34.5 HP / 10600 rpm

Torque: 24.8 Nm / 8200rpm


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CRF 250 R 38,1 CV, 28 kw 1cil. ME10A D Bastidores: JH2 ME10A-DK900001-- 2013
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A B Bastidores: JH2 ME10A-BK700001-JH2 ME10A-BK799999 2011
Honda CRF 250 R 43,5 CV, 32 kw 1cil. ME10A C Bastidores: JH2 ME10A-CK800001-JH2 ME10A-CK899999 2012
Honda CRF 250 R 44 CV, 32,4 kw 1cil. ME10A A Bastidores: JH2 ME10A-AK600001-JH2 ME10A-AK699999 2010
