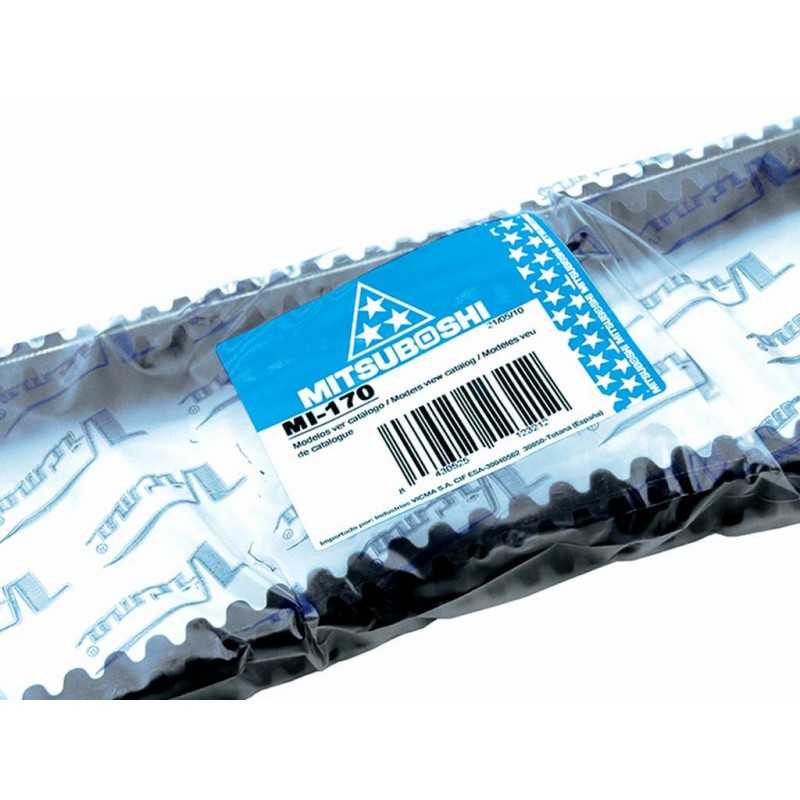

MITSUBOSHI BELT, DRIVE, TRANSMISSION MI178

MITSUBOSHI Belting, Ltd. "Belts that transmit power" is the motto of this Japanese colossus, a producer of belts since 1919, faithfully committed to their development.

Your product is positioned at the highest range, whether they are traditional, reinforced or double toothed belts.

Reliability and quality make manufacturers such as Yamaha, Suzuki and Piaggio choose Mitsuboshi as their original equipment supplier.

The traditional trapezoidal belt and the double-toothed belt are made of thread and rubber, reinforced with an ARAMID FIBER insert.

The fiber is mixed with the rubber, along the length of the belt, to contribute to a correct transmission of power and at the same time increase resistance to overheating and abrasion.

The serration reduces the stress caused by tensile flexing and heat build-up. The lateral cut allows an excellent seating of the belt on the transmission pulley.

The braiding is particularly resistant to eventual loads at certain points of the belt. Its interlocking reinforcement on the inside and outside of the belt increases the traction stability of the vehicle.

Thanks to an optimal contact surface, and unprecedented adhesion, Mitsuboshi belts guarantee power transmission efficiency that translates into ACCELERATION, RESPONSE and SILENCE.
LENGTH (MM): 805
WIDTH (MM): 17.9
HEIGHT (MM): 7.5
ANGLE ( ° ): 30
OEM REFERENCES: 5C3-E7641-00
COMPOSITION: POLYESTER
STRAP QUALITY: STANDARD


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH MBK NITRO 4 50 2014-2018
COMPATIBLE WITH MBK OVETTO 4T 50 2009-2015
COMPATIBLE WITH YAMAHA AEROX 4 50 2014-2020
COMPATIBLE WITH YAMAHA GIGGLE 50 50 2007-2009
COMPATIBLE WITH YAMAHA NEOS 4 (SA40) 50 2009-2012
COMPATIBLE WITH YAMAHA NEOS 4 (SA46) 50 2013-2017
COMPATIBLE WITH YAMAHA NEOS 4 (SA61) 50 2018-2021
COMPATIBLE WITH YAMAHA NEOS 4 LA POSTE (SA40) 50 2011-2013
COMPATIBLE WITH YAMAHA NEOS 4 LA POSTE (SA46) 50 2014-2015
COMPATIBLE WITH YAMAHA NEOS 4 MOFA 50 2012-2014
COMPATIBLE WITH YAMAHA NEOS 4 UBS (SA46) 50 2012-2017
COMPATIBLE WITH YAMAHA NEOS 4 UBS (SA61) 50 2018
