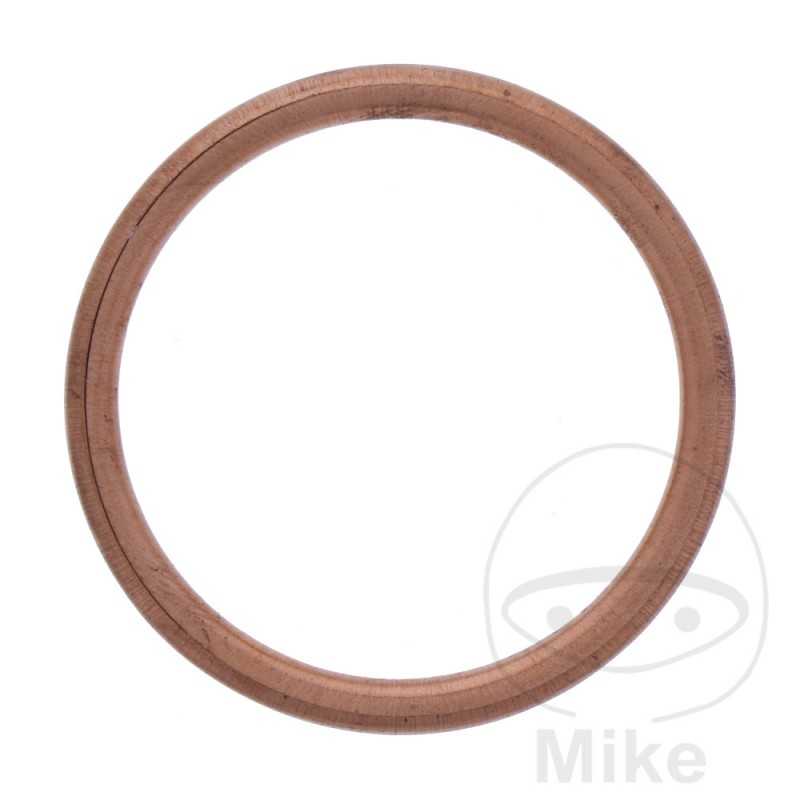

ATHENA exhaust manifold gasket 40X47.5X4.5 MM 734.97.98

Athena manifold gasket

Athena, an international company founded in 1973, develops and manufactures seals, technical spare parts and metal components for the industrial and motorcycle sectors according to the highest quality standards UNI EN ISO 9001, 9002, 14001 and UNI ISO / TS 16949.



Athena is the reference point in the market for the preparation of gasket sets with a complete range of scooters, motorcycles on and off road, ATVs and Harley Davidson.



In the off-road world, Athena's group of engineers and technicians are developing new product lines in collaboration with key international MXGP and AMA Supercross teams.



Athena products undergo rigorous quality testing to assure customers of high standards of performance, competitiveness, and reliability.



Athena offers the widest range of replacement seals available on the market, with over 40 years of experience in the industry. Athena seal kits are based on in-depth knowledge, continuous technological development achieved by our in-house team of engineers and designers, and production strictly adjusted to the parameters required by OEMs.



Athena offers a range of stamps with excellent sealing properties, available in paper, cellulose, metal and rubber sheets and in various thicknesses to meet customer requirements.
INSIDE DIAMETER: 40.00MM
OUTSIDE DIAMETER: 47.5MM
THICKNESS: 4.50MM
SCREW MOUNTING: NONE


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 250 R 26,4 CV, 19,4 kw 2cil. MC41A B Bastidores: MLH-MC41A-B5000001-MLH MC41A-B5099999 2011-2012
Honda CBR 250 R 26,4 CV, 19,4 kw 2cil. MC41A D Bastidores: MLH MC41A-D5200001-- 2013-2014
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B B Bastidores: MLH MC41B-B5000001-MLH MC41B-B5099999 2011-2012
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B D Bastidores: MLH MC41B-D5100001-- 2013-2014
Honda CBR 250 RA ABS 26,4 CV, 19,4 kw 2cil. MC41B F Bastidores: MLH MC41B-F5200001-MLH MC41B-F5299999 2015
Honda CBR 300 RA ABS 31 CV, 22,7 kw 1cil. NC51B F Bastidores: MLH NC51B-F5100001-MLH NC51B-F5199999 2014-2015
Honda CBR 300 RA ABS 31 CV, 22,7 kw 1cil. NC51B G Bastidores: MLH NC51B-G5200001-- 2016-2017
Honda CRF 250 L 23 CV, 17 kw 1cil. MD38A D Bastidores: MLH MD38A-D5000001-MLH MD38A-D5099999 2013-2014
Honda CRF 250 L 23 CV, 17 kw 1cil. MD38A F Bastidores: MLH MD38A-F5100001-MLH MD38A F5199999 2015-2016
Honda CRF 250 LA ABS 25 CV, 18 kw 1cil. MD44A H Bastidores: MLH MD44A-H5000001-- 2017-2018
Honda CRF 250 M 23 CV, 17 kw 1cil. MD38B E Bastidores: MLH MD38B-E5000001-MLH MD38B-E5099999 2014
Honda CRF 250 M 23 CV, 17 kw 1cil. MD38B F Bastidores: MLH MD38B-F5100001-MLH MD38B-F5199999 2015-2016
Honda CRF 250 RLA Rally ABS 25 CV, 18 kw 1cil. MD44B H Bastidores: MLH MD44B-H5000001-MLH MD44B-H5099999 2017
Honda CRF 250 RLA Rally ABS 25 CV, 18 kw 1cil. MD44B J Bastidores: MLH MD44B-J5100001-- 2018
Honda CRF 450 R 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 R 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 R 52,1 CV, 38,3 kw 1cil. PE05A D Bastidores: JH2 PE05A-DK200001-JH2 PE05A-DK299999 2013
Honda CRF 450 R 52,1 CV, 38,3 kw 1cil. PE05A E Bastidores: JH2 PE05A-EK300001-JH2 PE05A-EK399999 2014
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 7 Bastidores: JH2 PE05A-7M500001-JH2 PE05A-7M509999 2007
Honda CRF 450 R 52,4 CV, 38,5 kw 1cil. PE05A 8 Bastidores: JH2 PE05A-8M600001-- 2008
Honda CRF 450 R 53,7 CV, 39,5 kw 1cil. PE05A F Bastidores: JH2 PE05A-FK400001-JH2 PE05A-FK499999 2015
Honda CRF 450 R 53,7 CV, 39,5 kw 1cil. PE05A G Bastidores: JH2 PE05A-GK500001-- 2016
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 2 Bastidores: JH2 PE05A-2M000001-JH2 PE05A-2M099999 2002
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 3 Bastidores: JH2 PE05A-3M100001-JH2 PE05A-3M199999 2003
Honda CRF 450 R 56 CV, 41 kw 1cil. PE05A 4 Bastidores: JH2 PE05A-4M200001-JH2 PE05A-4M209999 2004
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 5 Bastidores: JH2 PE05A-5M300001-JH2 PE05A-5M309999 2005
Honda CRF 450 R 56 CV, 41,5 kw 1cil. PE05A 6 Bastidores: JH2 PE05A-6M400001-JH2 PE05A-6M409999 2006
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A 9 Bastidores: JH2 PE05A-9K700001-JH2 PE05A-9K799999 2009
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A A Bastidores: JH2 PE05A-AK800001-JH2 PE05A-AK899999 2010
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A B Bastidores: JH2 PE05A-BK900001-JH2 PE05A-BK999999 2011
Honda CRF 450 R 56,4 CV, 41,5 kw 1cil. PE05A C Bastidores: JH2 PE05A-CK100001-- 2012
Honda CRF 450 RX 1cil. PE07A H Bastidores: JH2 PE07A-HK000001-JH2 PE07A-HK999999 2017
Honda CRF 450 RX 1cil. PE07A J Bastidores: JH2 PE07A-JK100001-- 2018
Honda CRF 450 X 1cil. PE06A 9 Bastidores: JH2 PE06A-9K400001-JH2 PE06A-9K499999 2009-2010
Honda CRF 450 X 1cil. PE06A B Bastidores: JH2 PE06A-BK500001-JH2 PE06A-BK599999 2011
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A C Bastidores: JH2 PE06A-CK600001-JH2 PE06A-CK699999 2012
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A D Bastidores: JH2 PE06A-DK700001-- 2013
Honda CRF 450 X 45,1 CV, 33,2 kw 1cil. PE06A E Bastidores: JH2 PE06A-EK800001-- 2014-2018
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 5 Bastidores: JH2 PE06A-5K000001-JH2 PE06A-5K099999 2005
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 6 Bastidores: JH2 PE06A-6K100001-JH2 PE06A-6K199999 2006
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 7 Bastidores: JH2 PE06A-7K200001-JH2 PE06A-7K299999 2007
Honda CRF 450 X 49 CV, 36 kw 1cil. PE06A 8 Bastidores: JH2 PE06A-8K300001-JH2 PE06A-8K399999 2008
Honda TRX 450 ER Sportrax arranque eléctrico 50/20,5 CV, 37/15 kw 1cil. TE32U 6 Bastidores: JH2 TE32U-6K000001-JH2 TE32U-6K099999 2006
Honda TRX 450 ER Sportrax arranque eléctrico 50/20,5 CV, 37/15 kw 1cil. TE32U 7 Bastidores: JH2 TE32U-7K100001-JH2 TE32U-7K199999 2007
Honda TRX 450 ER Sportrax arranque eléctrico 50/20,5 CV, 37/15 kw 1cil. TE32U 8 Bastidores: JH2 TE32U-8K200001-- 2008
Honda TRX 450 ER Sportrax arranque eléctrico 50/20,5 CV, 37/15 kw 1cil. TE32U 9 Bastidores: JH2 TE32U-9K300001-JH2 TE32U-9K399999 2009
Honda TRX 450 ES Fourtrax Foreman ES Electric Shift 1cil. TE224 W Bastidores: 478 TE224-WA000001-- 1998
Honda TRX 450 ES Fourtrax Foreman ES Electric Shift 1cil. TE224 X Bastidores: 478 TE224-X4000001-- 1999
Honda TRX 450 ES Fourtrax Foreman ES Electric Shift 1cil. TE226 W Bastidores: 478 TE226-WA000001-- 1998
Honda TRX 450 ES Fourtrax Foreman ES Electric Shift 1cil. TE226 X Bastidores: 478 TE226-X4000001-- 1999
Honda TRX 450 ES Fourtrax Foreman ES Electric Shift 1cil. TE22U W Bastidores: 478 TE22U-WA050001-- 1998
Honda TRX 450 ES Fourtrax Foreman ES Electric Shift 1cil. TE22U X Bastidores: 478 TE22U-X4050001-- 1999
Honda TRX 450 R Sportrax arranque pedal 50/20,5 CV, 37/15 kw 1cil. TE30U 4 Bastidores: 478 TE30U-4A000001-478 TE30U-4A099999 2004
Honda TRX 450 R Sportrax arranque pedal 50/20,5 CV, 37/15 kw 1cil. TE30U 5 Bastidores: 1HF TE30U-5A100001-1HF TE30U-5A199999 2005
Honda TRX 450 R Sportrax arranque pedal 50/20,5 CV, 37/15 kw 1cil. TE32U 6 Bastidores: JH2 TE32U-6K000001-JH2 TE32U-6K099999 2006
Honda TRX 450 R Sportrax arranque pedal 50/20,5 CV, 37/15 kw 1cil. TE32U 7 Bastidores: JH2 TE32U-7K100001-JH2 TE32U-7K199999 2007
Honda TRX 450 R Sportrax arranque pedal 50/20,5 CV, 37/15 kw 1cil. TE32U 8 Bastidores: JH2 TE32U-8K200001-- 2008
Honda TRX 450 R Sportrax arranque pedal 50/20,5 CV, 37/15 kw 1cil. TE32U 9 Bastidores: JH2 TE32U-9K300001-JH2 TE32U-9K399999 2009
