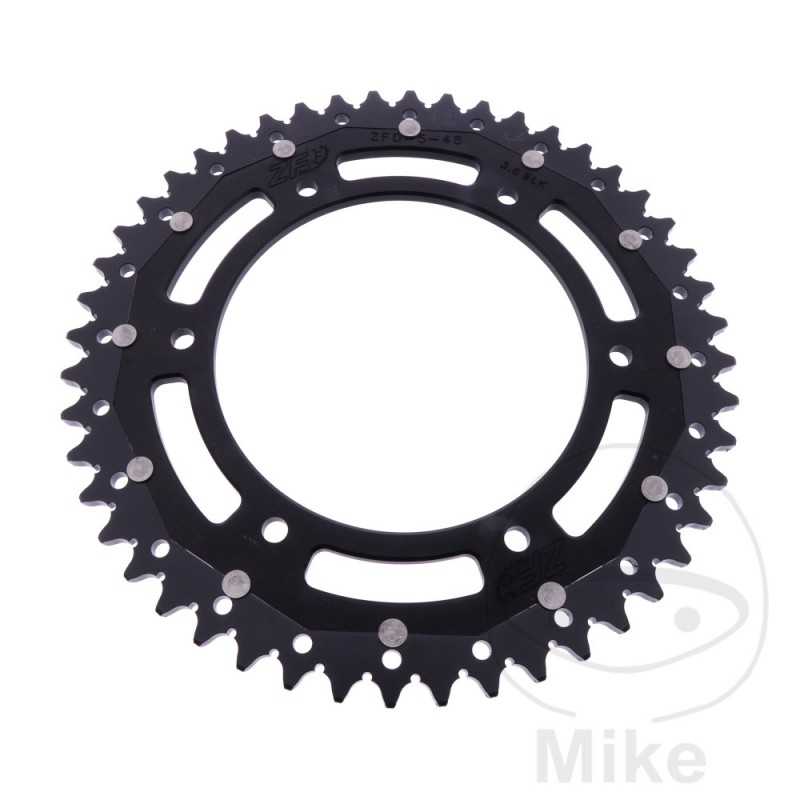

ZF SPROCKETS Transmission plate crown DUAL 48T P-520 Ø136 MM Ø160 758.25.79

ZF Dual sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is about 11 times higher than that of pure aluminium.

Through hardening, duralumin reaches almost the strength of steel.

The result is less weight and greater durability.

The milled holes in the lower part of the pinion teeth guarantee optimal self-cleaning.

These milled holes prevent dirt from collecting between the teeth, so the chain and sprocket don't wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times higher than that of pure aluminum sprockets and they are 50% lighter than steel sprockets.

Ideal for use on and off the road.
DIVISION: 520
INSIDE DIAMETER: 136MM
CIRCLE SIZE: 160 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 48
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Moto 650 Moto 6,5 42 CV, 31 kw 1cil. MH000 Bastidores: --- 1995-2000
Aprilia Pegaso 650 34 CV, 25 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1997-2000
Aprilia Pegaso 650 49 CV, 36 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1997-2000
Aprilia Pegaso 650 Garda 34 CV, 25 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1998-2000
Aprilia Pegaso 650 Garda 49 CV, 36 kw 1cil. ML000/ML010/ML002 Bastidores: --- 1998-2000
Aprilia Pegaso 650 N 48/27 CV, 35/20 kw 1cil. GA Bastidores: --- 1992
Aprilia Pegaso 650 P 48/27 CV, 35/20 kw 1cil. GA Bastidores: --- 1993
Aprilia Pegaso 650 R 48/34 CV, 35/25 kw 1cil. GA Bastidores: --- 1994
Aprilia Pegaso 650 S 48/34 CV, 35/25 kw 1cil. GA Bastidores: --- 1995
Aprilia Pegaso 650 T 39/34 CV, 29/25 kw 1cil. MX Bastidores: --- 1996
BMW F 650 650 34 CV, 25 kw 1cil. E169 0161 Bastidores: --- 1994-1996
BMW F 650 650 34 CV, 25 kw 1cil. E169 MU 0162 Bastidores: --- 1997-2000
BMW F 650 650 48 CV, 35 kw 1cil. E169 0161 Bastidores: --- 1994-1996
BMW F 650 650 48 CV, 35 kw 1cil. E169 MU 0162 Bastidores: --- 1997-2000
BMW F 650 650 GS 34 CV, 25 kw 1cil. E650G/R13 0175 Bastidores: --- 2004-2008
BMW F 650 650 GS 34 CV, 25 kw 1cil. R13 0172 Bastidores: --- 2000-2003
BMW F 650 650 GS 50 CV, 37 kw 1cil. E650G/R13 0175 Bastidores: --- 2004-2008
BMW F 650 650 GS 50 CV, 37 kw 1cil. R13 0172 Bastidores: --- 2000-2003
BMW F 650 650 GS ABS 34 CV, 25 kw 1cil. E650G/R13 0175 Bastidores: --- 2004-2008
BMW F 650 650 GS ABS 34 CV, 25 kw 1cil. R13 0172 Bastidores: --- 2000-2003
BMW F 650 650 GS ABS 50 CV, 37 kw 1cil. E650G/R13 0175 Bastidores: --- 2004-2008
BMW F 650 650 GS ABS 50 CV, 37 kw 1cil. R13 0172 Bastidores: --- 2000-2003
BMW F 650 650 GS Dakar 34 CV, 25 kw 1cil. E650G/R13 0176 Bastidores: --- 2004-2008
BMW F 650 650 GS Dakar 34 CV, 25 kw 1cil. R13 0173 Bastidores: --- 2000-2003
BMW F 650 650 GS Dakar 50 CV, 37 kw 1cil. E650G/R13 0176 Bastidores: --- 2004-2008
BMW F 650 650 GS Dakar 50 CV, 37 kw 1cil. R13 0173 Bastidores: --- 2000-2003
BMW F 650 650 GS Dakar ABS 34 CV, 25 kw 1cil. E650G/R13 0176 Bastidores: --- 2004-2008
BMW F 650 650 GS Dakar ABS 34 CV, 25 kw 1cil. R13 0173 Bastidores: --- 2002-2003
BMW F 650 650 GS Dakar ABS 50 CV, 37 kw 1cil. E650G/R13 0176 Bastidores: --- 2004-2008
BMW F 650 650 GS Dakar ABS 50 CV, 37 kw 1cil. R13 0173 Bastidores: --- 2002-2003
BMW F 650 650 ST 34 CV, 25 kw 1cil. E169 0163 Bastidores: --- 1997-1999
BMW F 650 650 ST 48 CV, 35 kw 1cil. E169 0163 Bastidores: --- 1997-1999
BMW G 310 GS ABS 34 CV, 25 kw 1cil. 5G31/K02 0G02 Bastidores: --- 2017-2020
BMW G 310 GS ABS 34 CV, 25 kw 1cil. K02 0G31 Bastidores: --- 2021-2022
BMW G 310 GS Edition 40 Years ABS 34 CV, 25 kw 1cil. K02 0G31 Bastidores: --- 2021
BMW G 310 R ABS 34 CV, 25 kw 1cil. 5R31/K03 0G01 Bastidores: --- 2016-2020
BMW G 310 R ABS 34 CV, 25 kw 1cil. K03 0G41 Bastidores: --- 2021-2022
BMW G 650 GS 34 CV, 25 kw 1cil. E650G/R13 0188 Bastidores: --- 2011-2012
BMW G 650 GS 48 CV, 35 kw 1cil. E650G/R13 0188 Bastidores: --- 2011-2012
BMW G 650 GS ABS 34 CV, 25 kw 1cil. E650G/R13 0188 Bastidores: --- 2012-2016
BMW G 650 GS ABS 48 CV, 35 kw 1cil. E650G/R13 0188 Bastidores: --- 2012-2016
BMW G 650 GS Sertäo 34 CV, 25 kw 1cil. E650G/R13 0136 Bastidores: --- 2012
BMW G 650 GS Sertäo 48 CV, 35 kw 1cil. E650G/R13 0136 Bastidores: --- 2012
BMW G 650 GS Sertäo ABS 34 CV, 25 kw 1cil. E650G/R13 0136 Bastidores: --- 2012-2014
BMW G 650 GS Sertäo ABS 48 CV, 35 kw 1cil. E650G/R13 0136 Bastidores: --- 2012-2014
Husqvarna TR 650 Strada ABS 47,6 CV, 35 kw 1cil. 0H11F Bastidores: ZKH 0H11FD-V000001-- 2013-2015
Husqvarna TR 650 Strada ABS 58,5 CV, 43 kw 1cil. 0H11E Bastidores: ZKH 0H11ED-V000001-- 2013-2015
Husqvarna TR 650 Terra ABS 47,6 CV, 35 kw 1cil. 0H11D Bastidores: ZKH 0H11DD-V000001-- 2013-2015
Husqvarna TR 650 Terra ABS 58,5 CV, 43 kw 1cil. 0H11C Bastidores: ZKH 0H11CD-V000001-- 2013-2015
