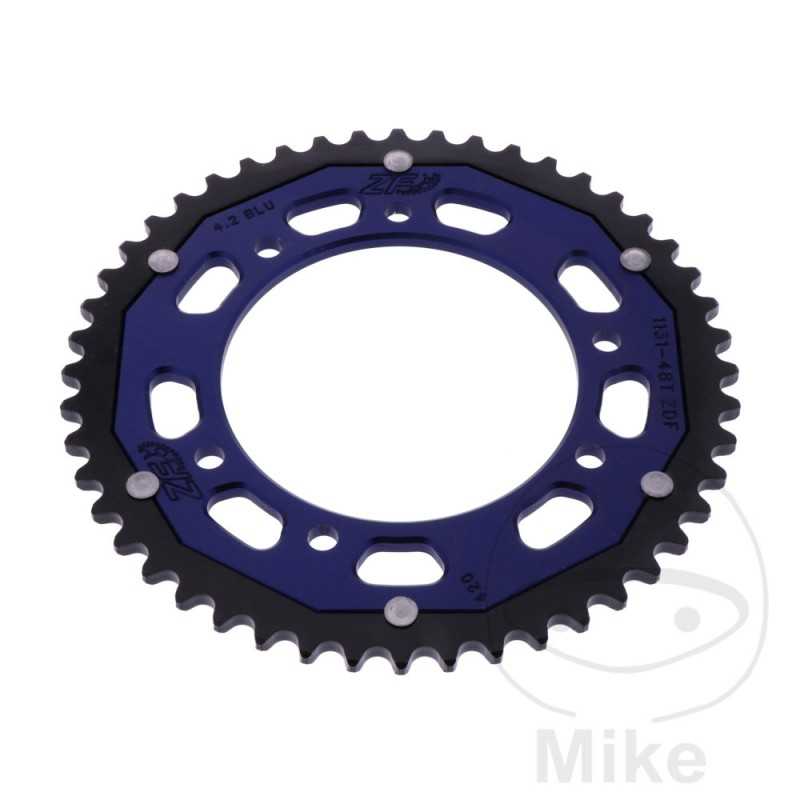

ZF SPROCKETS Transmission plate crown DUAL 48T P-420 Ø105 MM Ø125 758.18.35

ZF-Dual sprockets are among the highest quality and most technologically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

Through hardening, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and greater durability have been implemented.

Milling at the base of the sprocket tooth ensures optimal self-cleaning.

These cutters ensure that dirt cannot settle between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and they are 50% lighter than steel sprockets.

Best suited for road and off-road.
DIVISION: 420
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 125 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 48
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RX 50 4,9 CV, 3,6 kw 1cil. - Bastidores: --- 2009-2010
Aprilia RX 50 4,9 CV, 3,6 kw 1cil. PV000 Bastidores: --- 2006-2008
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. PVA00 Bastidores: --- 2006-2008
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. PVE00 Bastidores: --- 2009-2010
Derbi Senda 50 R X-Race 2,9 CV, 2,1 kw 1cil. SR1D1A Bastidores: --- 2010-2011
Derbi Senda 50 R X-Race 2,9 CV, 2,1 kw 1cil. SR1D1A Bastidores: VTHSR1D1A7H349004-- 2007-2009
Derbi Senda 50 R X-Race 3,2 CV, 2,3 kw 1cil. SR1A1A Bastidores: VTHSR1A1A5H275859-- 2005
Derbi Senda 50 R X-Race 3,2 CV, 2,3 kw 1cil. SR1D1A Bastidores: VTHSR1D1A6H310130-- 2006
Derbi Senda 50 R X-Treme 2,9 CV, 2,1 kw 1cil. SR1D1A Bastidores: --- 2010-2014
Derbi Senda 50 R X-Treme 2,9 CV, 2,1 kw 1cil. SR1D1A Bastidores: VTHSR1D1A7H349915-- 2007
Derbi Senda 50 R X-Treme 2,9 CV, 2,1 kw 1cil. SR1D1A Bastidores: VTHSR1D1A8H398739-- 2008-2009
Derbi Senda 50 R X-Treme 3,2 CV, 2,3 kw 1cil. SDR1EB/SDRAB Bastidores: --- 2003
Derbi Senda 50 R X-Treme 3,2 CV, 2,3 kw 1cil. SR1A1A Bastidores: VTHSR1A1A4H234669-- 2004
Derbi Senda 50 R X-Treme 3,2 CV, 2,3 kw 1cil. SR1A1A Bastidores: VTHSR1A1A5H271403-- 2005
Derbi Senda 50 R X-Treme 3,2 CV, 2,3 kw 1cil. SR1D1A Bastidores: VTHSR1D1A6H309111-- 2005-2006
Derbi Senda 50 SM DRD 3,2 CV, 2,3 kw 1cil. SDR1HB Bastidores: VTHSDR1HB2H194077-- 2003-2004
Derbi Senda 50 SM X-Race 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 50 SM X-Race 2,9 CV, 2,1 kw 1cil. SR2D1A Bastidores: --- 2010-2011
Derbi Senda 50 SM X-Race 3,2 CV, 2,3 kw 1cil. SR2A1A Bastidores: --- 2005
Derbi Senda 50 SM X-Race 3,2 CV, 2,3 kw 1cil. SR2E1A Bastidores: VTHSR2E1A6H322477-- 2006
Derbi Senda 50 SM X-Treme 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 50 SM X-Treme 2,9 CV, 2,1 kw 1cil. SR2D1A Bastidores: --- 2010-2013
Derbi Senda 50 SM X-Treme 3,2 CV, 2,3 kw 1cil. - Bastidores: --- 2005-2006
Derbi Senda 50 SM X-Treme 3,2 CV, 2,3 kw 1cil. SDR1FB Bastidores: VTHSDR1FB2H187677-- 2003
Derbi Senda 50 SM X-Treme 3,2 CV, 2,3 kw 1cil. SR2A1A Bastidores: VTHSR2A1A4H233841-VTHSR2A1A4H236084 2004
Gilera RCR 50 Enduro 2,2 CV, 1,6 kw 1cil. GI1A1A4H Bastidores: ZAPGI1A1A4H238634-- 2004
Gilera SMT 50 Supermotard 2,2 CV, 1,6 kw 1cil. GI2A1A4H Bastidores: ZAPGI2A1A4H239829-- 2003-2004
Malaguti XTM 50 Enduro 2,2 CV, 1,6 kw 1cil. 68K104 Bastidores: --- 2008-2011
Motorhispania Furia 50 Max Enduro 1cil. - Bastidores: --- 2006-2011
Motorhispania Furia 50 Max Supermotard 1cil. - Bastidores: --- 2007-2011
Motorhispania RYZ 50 Enduro 1cil. - Bastidores: --- 2006-2011
Motorhispania RYZ 50 Pro Racing Enduro 1cil. - Bastidores: --- 2006-2011
Peugeot XP6 50 Enduro 1,9 CV, 1,4 kw 1cil. VGA FU1CE2 FU1C Bastidores: --- 2008-2009
Peugeot XP6 50 Enduro 1,9 CV, 1,4 kw 1cil. VGA FU1CP2 FU1C Bastidores: --- 2010-2011
Peugeot XPS 50 Enduro 1,9 CV, 1,4 kw 1cil. VGA DV0CE2 DV0C Bastidores: --- 2008-2009
Peugeot XPS 50 Enduro 3 CV, 2,2 kw 1cil. VGA DV1CP2 DV1C Bastidores: --- 2010-2012
Peugeot XPS 50 Supermoto 1,9 CV, 1,4 kw 1cil. VGA DV0CE2 DV0C Bastidores: --- 2008-2009
Peugeot XPS 50 Supermoto 3 CV, 2,2 kw 1cil. VGA DV1CP2 DV1C Bastidores: --- 2010-2012
Rieju MRT 50 Pro Supermoto 2,2/6,25 CV, 1,6/4,6 kw 1cil. - Bastidores: --- 2009-2017
Rieju MRT 50 Supermoto 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2009
Rieju MRX 50 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2003
Rieju MRX 50 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
Rieju MRX 50 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2005
Rieju MRX 50 Top Edition 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju MRX 50 Top Edition 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2007
Rieju RRX 50 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju RRX 50 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2006-2007
Rieju RS-3 50 2/6,1 CV, 1,5/4,5 kw 1cil. - Bastidores: --- 2011-2014
Rieju SMX 50 Super Motard 1,8 CV, 1,3 kw 1cil. - Bastidores: --- 2003
Rieju SMX 50 Super Motard 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002
Rieju SMX 50 Super Motard 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2005
Rieju SMX 50 Top Supermoto 1,8/8,8 CV, 1,3/6,5 kw 1cil. - Bastidores: --- 2008-2009
Rieju SMX 50 Top Supermoto 4,8/8,8 CV, 3,5/6,5 kw 1cil. - Bastidores: --- 2004-2007
Yamaha DT 50 R 2,85 CV, 2,1 kw 1cil. 70K10 13CB Bastidores: 70K10-770060923-- 2012-2013
