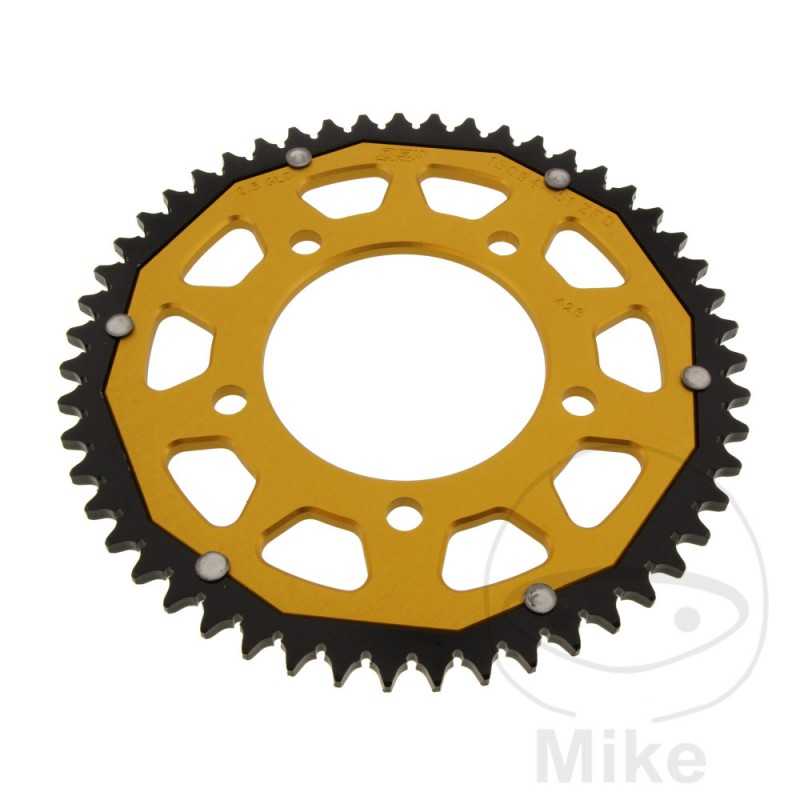

ZF SPROCKETS Transmission plate crown DUAL 51T P-428 Ø087 MM Ø110 758.17.79

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

Milling at the base of the sprocket tooth ensures optimal self-cleaning.

These cuts ensure that dirt does not stick between the teeth and therefore wear the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

The most suitable for road and offroad.
DIVISION: 428
INSIDE DIAMETER: 87MM
CIRCLE SIZE: 110 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 51
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KREIDLER DICE 125 GS 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2016
KREIDLER DICE 125 GS I CBS 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2017-2018
KREIDLER DICE 125 GS PRO I CBS 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2017-2018
KREIDLER DICE 125 SM 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2016
KREIDLER DICE 125 SM I CBS 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2017-2018
KREIDLER DICE 125 SM PRO I CBS 11,4 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2017-2018
KREIDLER ENDURO 125 DD 11,5 CV, 8,4 KW 1CIL. - BASTIDORES: --- 2015
KREIDLER SUPERMOTO 125 DD 11,4 CV, 8,4 KW 1CIL. KR001Q BASTIDORES: --- 2015
QINGQI QM125GY-G(ASD) 125 DD IE RANGER SUPERMOTO 11,6 CV, 8,5 KW 1CIL. QM125GY-G(ASD) BASTIDORES: --- 2017
QINGQI QM125GY-G(BSD) 125 DD IE RANGER ENDURO 11,6 CV, 8,5 KW 1CIL. QM125GY-G(BSD) BASTIDORES: --- 2017
QINGQI QM125GY-H(ASD) 125 DD IE TERRA SUPERMOTO 11,6 CV, 8,5 KW 1CIL. QM125GY-H(ASD) BASTIDORES: --- 2017
QINGQI QM125GY-H(BSD) 125 DD IE TERRA ENDURO 11,6 CV, 8,5 KW 1CIL. QM125GY-H(BSD) BASTIDORES: --- 2017
