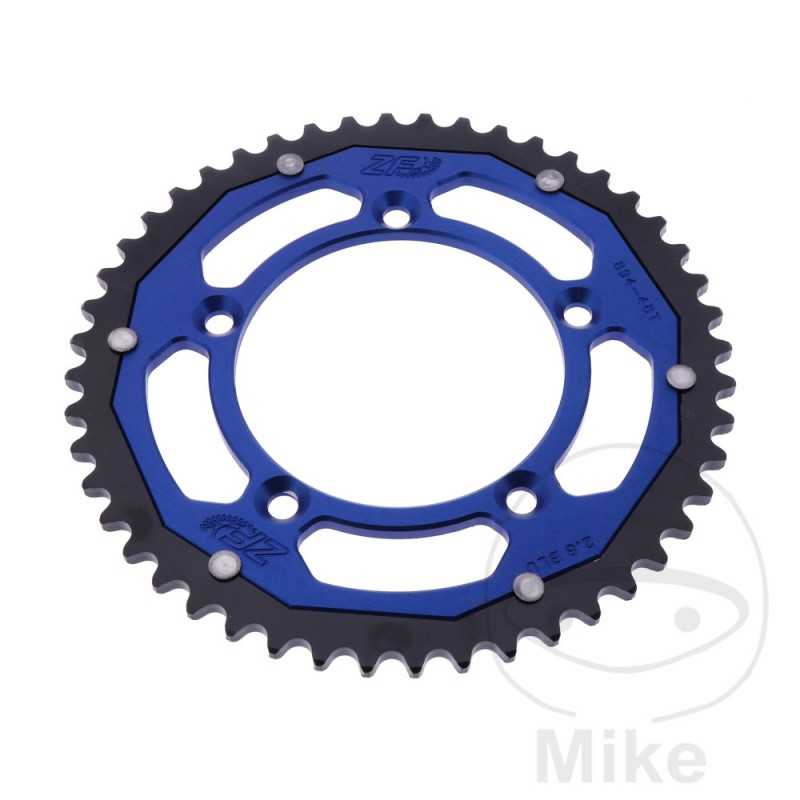

ZF SPROCKETS Transmission plate crown DUAL 48T P-420 Ø098 MM Ø115 758.17.68

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 420
INSIDE DIAMETER: 98MM
CIRCLE SIZE: 115 MM
HOLE: 8.5MM
HOLES QUANTITY: 5
SCREW TYPE: COUNTERSUNK HEAD
QTY TEETH: 48
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna TC 65 1cil. - Bastidores: --- 2017-2020
KTM SX 60 1cil. - Bastidores: --- 1998-2000
KTM SX 65 1cil. - Bastidores: --- 1998-2000
KTM SX 65 1cil. - Bastidores: --- 2013-2022
KTM SX 65 15,5 CV, 11,4 kw 1cil. - Bastidores: --- 2002
KTM SX 65 16 CV, 12 kw 1cil. - Bastidores: --- 2001-2001
KTM SX 65 16 CV, 12 kw 1cil. - Bastidores: --- 2006-2012
KTM SX 65 17 CV, 12,5 kw 1cil. - Bastidores: --- 2003-2005
