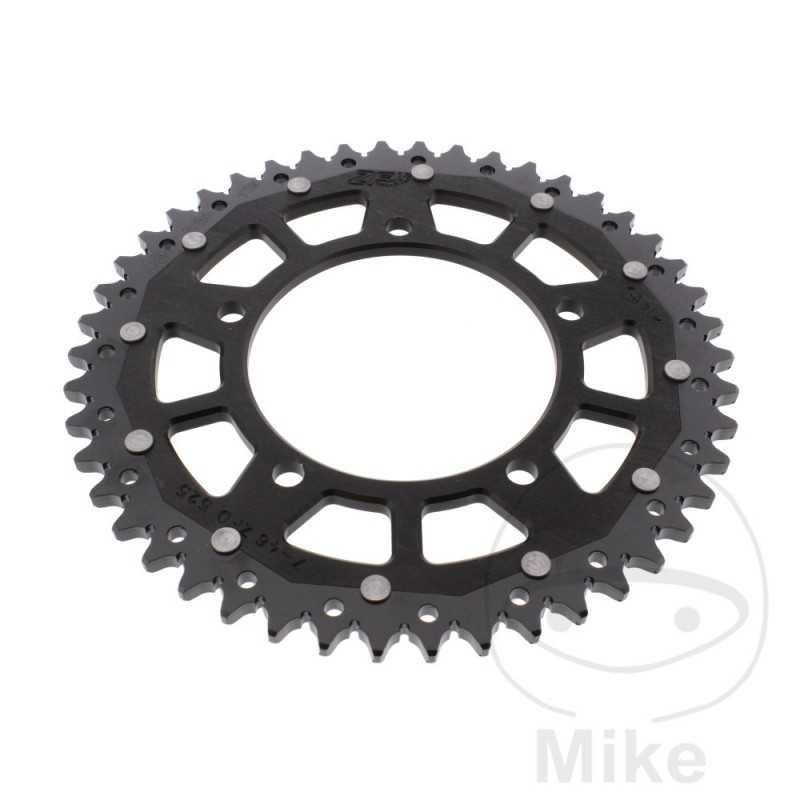

ZF SPROCKETS Transmission plate crown DUAL 46T P-525 Ø110 MM Ø130.8 758.16.76

ZF Dual sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times higher than that of pure aluminum.

Upon hardening, duralumin reaches nearly the strength of steel.

The result is less weight and greater durability.

Milled grooves at the base of the sprocket tooth ensure optimal self-cleaning.

These milled grooves ensure that dirt cannot accumulate between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times greater than that of pure aluminum sprockets and they are 50% lighter than steel ones.

Ideal for use on and off the road.
DIVISION: 525
INSIDE DIAMETER: 110MM
CIRCLE SIZE: 130.8 MM
HOLE: 12.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 46
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW S 1000 R ABS 160 CV, 118 KW 4CIL. K10/K47 0D02 BASTIDORES: --- 2013-2016
BMW S 1000 R ABS 165 CV, 121 KW 4CIL. 2R10/K47 0D52 BASTIDORES: --- 2017-2020
BMW S 1000 R ABS DDC 165 CV, 121 KW 4CIL. 2R10/K47 0D52 BASTIDORES: --- 2017-2020
BMW S 1000 R ABS DTC 165 CV, 121 KW 4CIL. 2R10/K47 0D52 BASTIDORES: --- 2017-2020
BMW S 1000 RR 193 CV, 142 KW 4CIL. K10/K46 0507 BASTIDORES: --- 2009-2011
BMW S 1000 RR 193 CV, 142 KW 4CIL. K10/K46 0524 BASTIDORES: --- 2012
BMW S 1000 RR ABS 193 CV, 142 KW 4CIL. K10/K46 0507 BASTIDORES: --- 2009-2011
BMW S 1000 RR ABS 193 CV, 142 KW 4CIL. K10/K46 0524 BASTIDORES: --- 2012-2014
BMW S 1000 RR ABS 199 CV, 146 KW 4CIL. 2R10/K46 0D50 BASTIDORES: --- 2017-2018
BMW S 1000 RR ABS 199 CV, 146 KW 4CIL. K10/K46 0D10 BASTIDORES: --- 2014-2016
BMW S 1000 RR PRO ABS 199 CV, 146 KW 4CIL. 2R10/K46 0D50 BASTIDORES: --- 2017-2018
BMW S 1000 XR ABS 160 CV, 118 KW 4CIL. K10/K49 0D03 BASTIDORES: --- 2015-2016
BMW S 1000 XR ABS 165 CV, 121 KW 4CIL. 2X10/K49 0D03 BASTIDORES: --- 2017-2019
BMW S 1000 XR ABS DTC 165 CV, 121 KW 4CIL. 2X10/K49 0D03 BASTIDORES: --- 2017-2019
BMW S 1000 XR ABS ESA 165 CV, 121 KW 4CIL. 2X10/K49 0D03 BASTIDORES: --- 2017-2019
